Infineon OptiMOS Type N-Channel MOSFET & Diode, 90 A, 60 V Enhancement, 3-Pin TO-252

RS 제품 번호:: 220-7413
제조사 부품 번호:: IPD90N06S407ATMA2
제조업체:: Infineon

Infineon OptiMOS Type N-Channel MOSFET & Diode, 90 A, 60 V Enhancement, 3-Pin TO-252

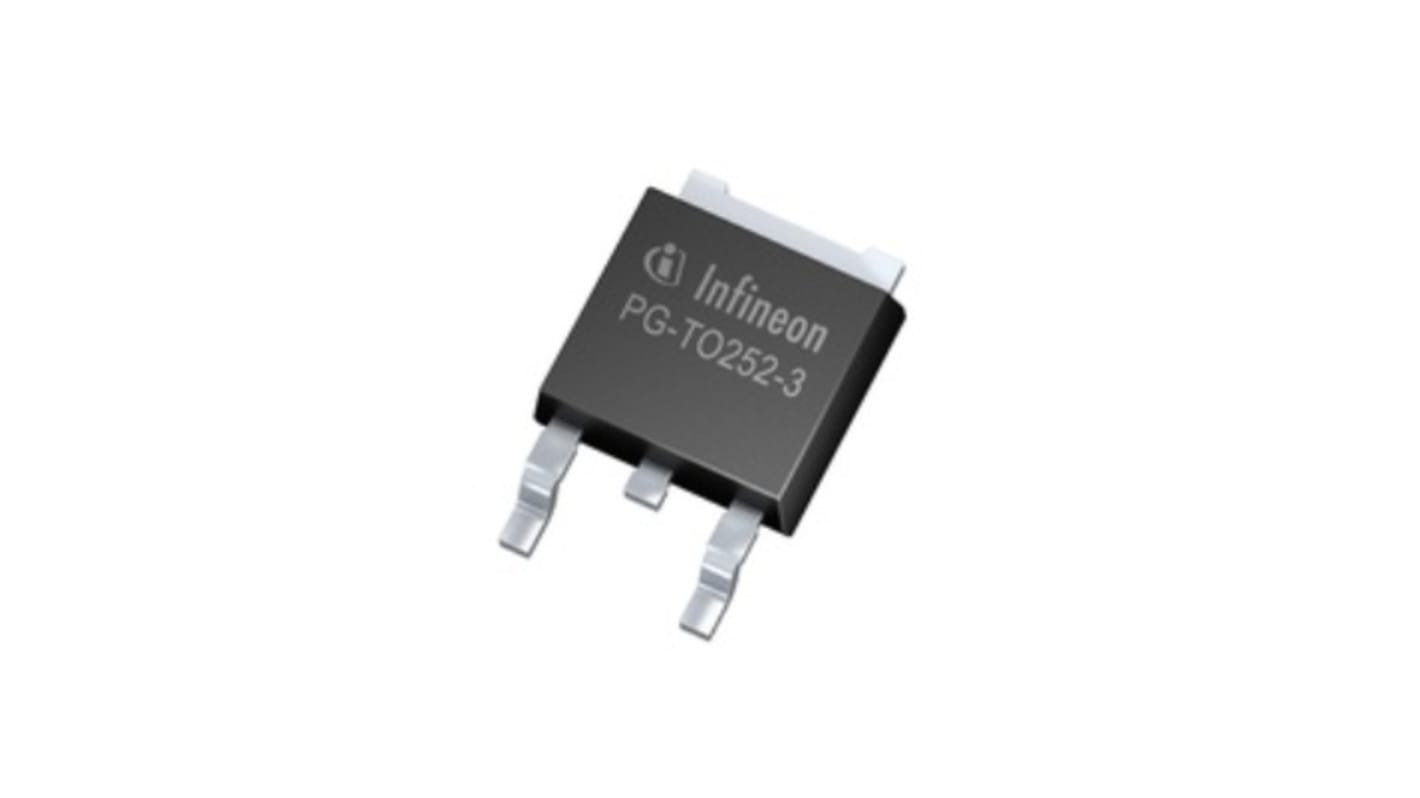

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 reel of 2500 units)*

₩2,002,200.00

일시적 품절

2026년 3월 30일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	릴당*
2500 - 2500	₩800.88	₩2,000,320.00
5000 - 7500	₩783.96	₩1,960,370.00
10000 +	₩768.92	₩1,921,360.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 220-7413
제조사 부품 번호:: IPD90N06S407ATMA2
제조업체:: Infineon

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Infineon
	Channel Type	Type N
	Product Type	MOSFET & Diode
	Maximum Continuous Drain Current Id	90A
	Maximum Drain Source Voltage Vds	60V
	Series	OptiMOS
	Package Type	TO-252
	Mount Type	Surface
	Pin Count	3
	Maximum Drain Source Resistance Rds	6.9mΩ
	Channel Mode	Enhancement
	Minimum Operating Temperature	-55°C
	Maximum Gate Source Voltage Vgs	20 V
	Forward Voltage Vf	1.3V
	Typical Gate Charge Qg @ Vgs	43nC
	Maximum Power Dissipation Pd	79W
	Maximum Operating Temperature	175°C
	Height	2.41mm
	Width	6.22 mm
	Standards/Approvals	No
	Length	6.73mm
	Automotive Standard	AEC-Q101

	모두 선택
	브랜드 Infineon
	Channel Type Type N
	Product Type MOSFET & Diode
	Maximum Continuous Drain Current Id 90A
	Maximum Drain Source Voltage Vds 60V
	Series OptiMOS
	Package Type TO-252
	Mount Type Surface
	Pin Count 3
	Maximum Drain Source Resistance Rds 6.9mΩ
	Channel Mode Enhancement
	Minimum Operating Temperature -55°C
	Maximum Gate Source Voltage Vgs 20 V
	Forward Voltage Vf 1.3V
	Typical Gate Charge Qg @ Vgs 43nC
	Maximum Power Dissipation Pd 79W
	Maximum Operating Temperature 175°C
	Height 2.41mm
	Width 6.22 mm
	Standards/Approvals No
	Length 6.73mm
	Automotive Standard AEC-Q101

Datasheet - IPD90N06S407ATMA2

The Infineon offers a wide range of 55V-60V N-channel automotive qualified power MOSFETs using the new OptiMOS technology in a variety of packages and ranging RDS(on) from 1.5mΩ up to 160mΩ.The new 60V automotive MOSFET family with OptiMOS5 technology delivers more power and leading performance. OptiMOS 5 provides reduced conduction losses optimized for drives and power conversion applications. The smaller leadless packages SSO8 (5x6mm2) and S3O8(3x3mm2) enable space savings by more than 50% compared to the area of a DPAK.

N-channel - Enhancement mode

MSL1 up to 260°C peak reflow

175°C operating temperature

100% Avalanche tested

Ultra low RDSon

world's lowest RDS at 60V (on)

highest current capability

lowest switching and conduction power losses for highest thermal efficiency

robust packages with superior quality and reliability

Optimized total gate charge enables smaller driver output stages

Infineon OptiMOS Type N-Channel MOSFET & Diode, 90 A, 60 V Enhancement, 3-Pin TO-252
