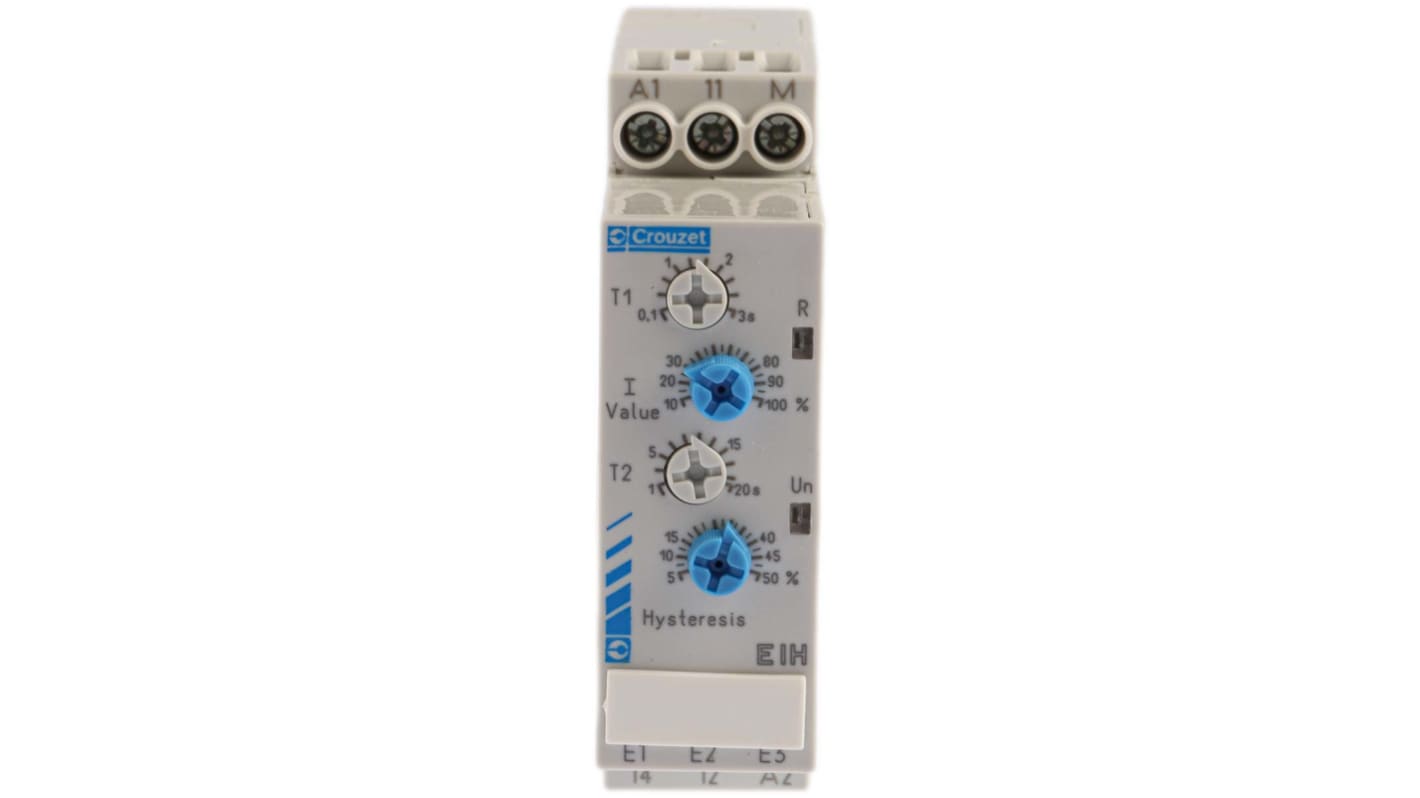

Crouzet Monitoring Relay, 1 Phase, SPDT, DIN Rail, 0.1A to 10A, 24 V dc, 230V ac
- RS 제품 번호:
- 463-3654
- Distrelec 제품 번호:
- 304-00-807
- 제조사 부품 번호:
- 84871034
- 제조업체:
- Crouzet
Subtotal (1 unit)*
₩323,427.00
일시적 품절
- 2026년 7월 20일 부터 1 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩323,427.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 463-3654
- Distrelec 제품 번호:
- 304-00-807
- 제조사 부품 번호:
- 84871034
- 제조업체:
- Crouzet
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Crouzet | |
| Product Type | Monitoring Relay | |
| Electrical Phase | 1 | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Minimum Current Sensed | 0.1A | |
| Maximum Current Sensed | 10A | |
| Power Consumption | 3VA | |
| Current Sensitivity | Undercurrent, Overcurrent | |
| Time Delay | 0.1 to 3 s | |
| Supply AC Voltage | 230V ac | |
| Minimum Operating Temperature | -20°C | |
| Relay Contact Current | 8A | |
| Supply DC Voltage | 24 V dc | |
| Maximum Operating Temperature | 50°C | |
| Width | 22.5mm | |
| Series | EIH | |
| Length | 103.5mm | |
| Height | 78mm | |
| Standards/Approvals | RoHS | |
| 모두 선택 | ||
|---|---|---|
브랜드 Crouzet | ||
Product Type Monitoring Relay | ||
Electrical Phase 1 | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Minimum Current Sensed 0.1A | ||
Maximum Current Sensed 10A | ||
Power Consumption 3VA | ||
Current Sensitivity Undercurrent, Overcurrent | ||
Time Delay 0.1 to 3 s | ||
Supply AC Voltage 230V ac | ||
Minimum Operating Temperature -20°C | ||
Relay Contact Current 8A | ||
Supply DC Voltage 24 V dc | ||
Maximum Operating Temperature 50°C | ||
Width 22.5mm | ||
Series EIH | ||
Length 103.5mm | ||
Height 78mm | ||
Standards/Approvals RoHS | ||
제외
- COO (Country of Origin):
- FR
Current Control Relays – EI
Threshold and hysteresis separately adjustable
Selection of over-current or under-current by means of a dip switch
(Operating range quoted is relative to nominal supply voltage (Un) )
Note
2 to 500mA (EIL), 0.1 to 10A (EIH) and 10 to 100A (EIT with CT) measurement ranges
Current transformer available for use with EIT control relays; stock no 283-6384
Current transformer available for use with EIT control relays; stock no 283-6384
