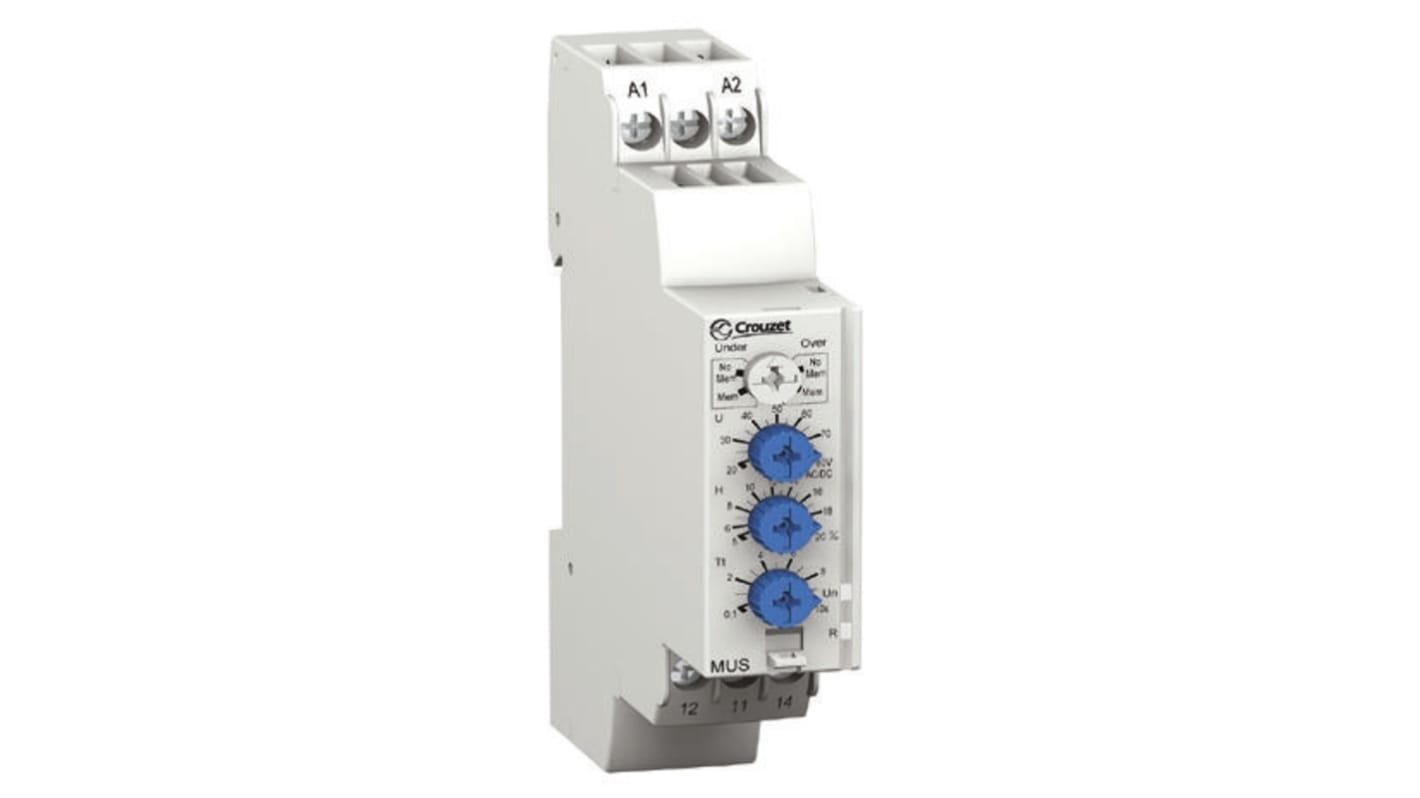

Crouzet Voltage Monitoring Relay, 1 Phase, SPDT, 20 → 80V ac/dc, DIN Rail

모든 Monitoring Relays 열람하기

Subtotal (1 unit)*

₩220,937.60

Add to Basket
수량 선택 또는 입력
재고있음
  • 5 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩220,937.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
614-9432
제조사 부품 번호:
84872141
제조업체:
Crouzet
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Crouzet

Monitoring Application

Voltage

Electrical Phase

1

Voltage Sensing Range

20 → 80V ac/dc

Contact Configuration

SPDT

Voltage Sensitivity

Overvoltage, Undervoltage

Mounting Type

DIN Rail

Time Delay

0.1 → 10s

Series

MUS/MUSF

Maximum Voltage Sensed

80V ac/dc

Length

69mm

Minimum Voltage Sensed

20V ac/dc

Dimensions

69 x 17.5 x 92.6mm

Maximum Operating Temperature

+50°C

Width

17.5mm

Minimum Operating Temperature

-20°C

Operating Temperature Range

+50°C

Height

92.6mm

COO (Country of Origin):
FR

Voltage Control Relay - C-Lynx


MUS and MUSF voltage control relays monitor single phase DC network voltages. These products monitor their own supply voltage. MUS relays allow the operator to choose between two operating modes: Under/overvoltage and with or without fault latching. An adjustable time delay, on threshold crossing, provides immunity from transient phenomena, thus preventing spurious triggering of the output relay.

Control relays monitoring their own power supply
MUS: Over/Undervoltage control selectable latching (memory) function
MUSF: Over/Undervoltage control
Adjustable time delays
Control in 50 Hz, 60 Hz or True RMS measurement
LED status indication
