Lovato Electric Monitoring Relay, 3 Phase, 50 → 720V ac L-L (415V ac L-N) Monitor Range, Flush, 100V ac, 440 V ac

RS 제품 번호:: 248-3642
제조사 부품 번호:: DCRL5
제조업체:: Lovato Electric

Lovato Electric Monitoring Relay, 3 Phase, 50 → 720V ac L-L (415V ac L-N) Monitor Range, Flush, 100V ac, 440 V ac

Subtotal (1 unit)*

₩427,000.00

일시적 품절

2026년 12월 08일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩427,000.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 248-3642
제조사 부품 번호:: DCRL5
제조업체:: Lovato Electric

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Lovato Electric
	Product Type	Monitoring Relay
	Function	Bluetooth
	Electrical Phase	3
	Mount Type	Flush
	Switching Voltage	415V ac
	Power Consumption	9.5VA
	IP Rating	IP54, IP20
	Supply AC Voltage	100V ac, 440V ac
	Minimum Operating Temperature	-20°C
	Supply DC Voltage	110 → 250 V dc
	Contact Current	5A
	Monitoring Voltage Range	50 → 720V ac L-L (415V ac L-N)
	Maximum Operating Temperature	60°C
	Standards/Approvals	IEC/EN 61000-6-4, IEC/EN 61000-6-2, CSA C22.2 N°14, IEC/EN 61010-2-030, UL 508, IEC/EN 61010-1
	Series	DCRL
	Width	96mm
	Height	96mm

	모두 선택
	브랜드 Lovato Electric
	Product Type Monitoring Relay
	Function Bluetooth
	Electrical Phase 3
	Mount Type Flush
	Switching Voltage 415V ac
	Power Consumption 9.5VA
	IP Rating IP54, IP20
	Supply AC Voltage 100V ac, 440V ac
	Minimum Operating Temperature -20°C
	Supply DC Voltage 110 → 250 V dc
	Contact Current 5A
	Monitoring Voltage Range 50 → 720V ac L-L (415V ac L-N)
	Maximum Operating Temperature 60°C
	Standards/Approvals IEC/EN 61000-6-4, IEC/EN 61000-6-2, CSA C22.2 N°14, IEC/EN 61010-2-030, UL 508, IEC/EN 61010-1
	Series DCRL
	Width 96mm
	Height 96mm

Datasheet - DCRL5

COO (Country of Origin):: IT

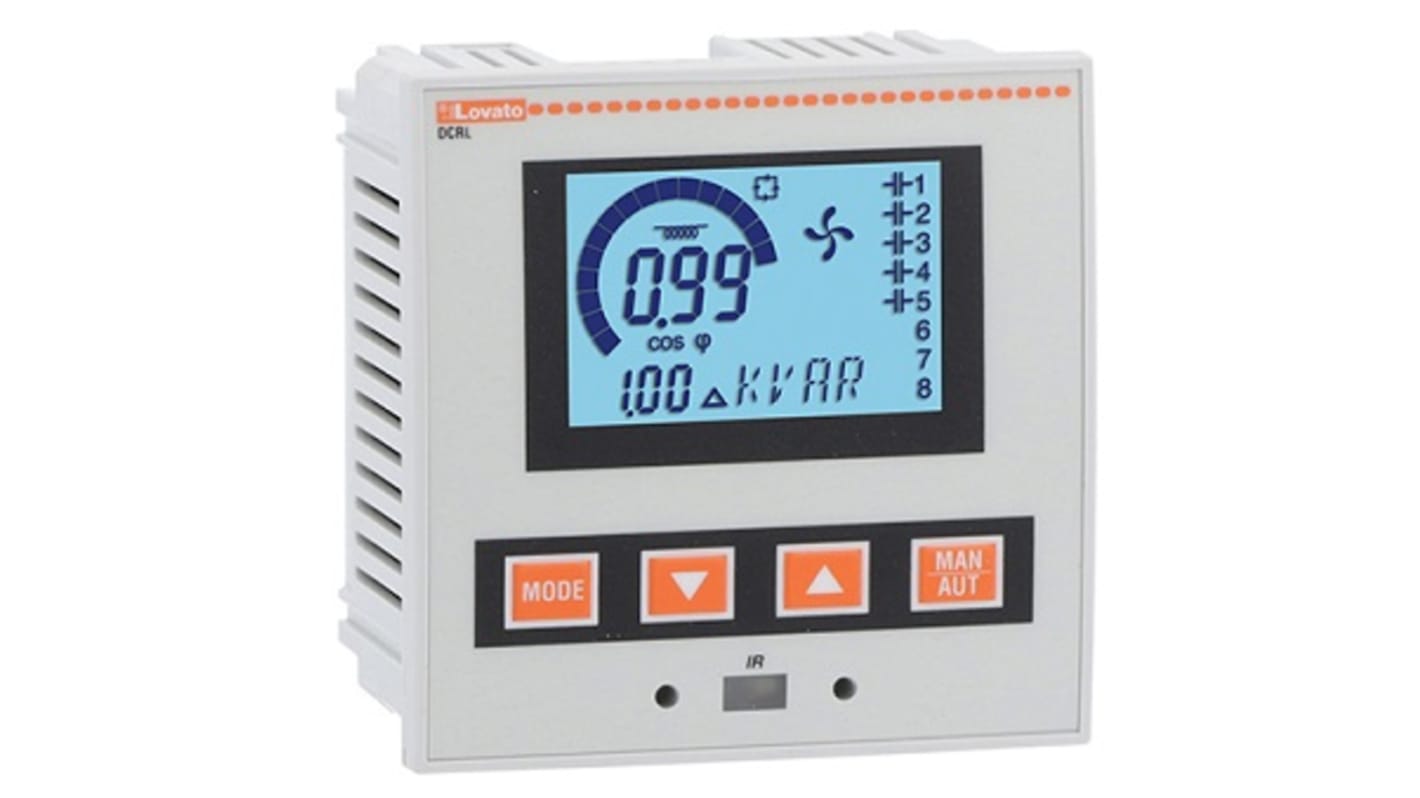

The Lovato makes Automatic DCRL 5 step power factor controller is expandable with EXP series module like step increment, digital output, communication ports with Internal panel temperature sensor.

Flush mount 96x96mm housing with transparent cover

Front optical USB and Wi-Fi communication

port for PC, smartphone and tablet connection

Programmable alarms

Maximum Power consumption 9.5VA

Maximum Power dissipation 3.5 Watts

Maximum switching voltage 415 VAC

Operational frequency withstand voltage 5.2kV

Operating temperature -20°C to + 60°C

Lovato Electric Monitoring Relay, 3 Phase, 50 → 720V ac L-L (415V ac L-N) Monitor Range, Flush, 100V ac, 440 V ac
