RS PRO Monitoring Relay, 3 Phase, 320/490 V ac Monitor Range, LPPI, DIN Rail, 320/490 V ac

모든 Monitoring Relays 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩80,915.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 32 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩80,915.20
5 +₩66,589.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
225-7384
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Product Type

Monitoring Relay

Function

Phase Failure, Phase Sequence

Electrical Phase

3

Contact Configuration

LPPI

Mount Type

DIN Rail

Power Consumption

4VA

Terminal Type

Screw

IP Rating

IP20

Minimum Operating Temperature

-20°C

Monitoring Voltage Range

320/490 V ac

Maximum Operating Temperature

60°C

Series

L

Length

66.5mm

Standards/Approvals

IEC 60664, RoHS, cUL, EN 61000-6-2, EN 61000-6-4

Height

92mm

COO (Country of Origin):
GB

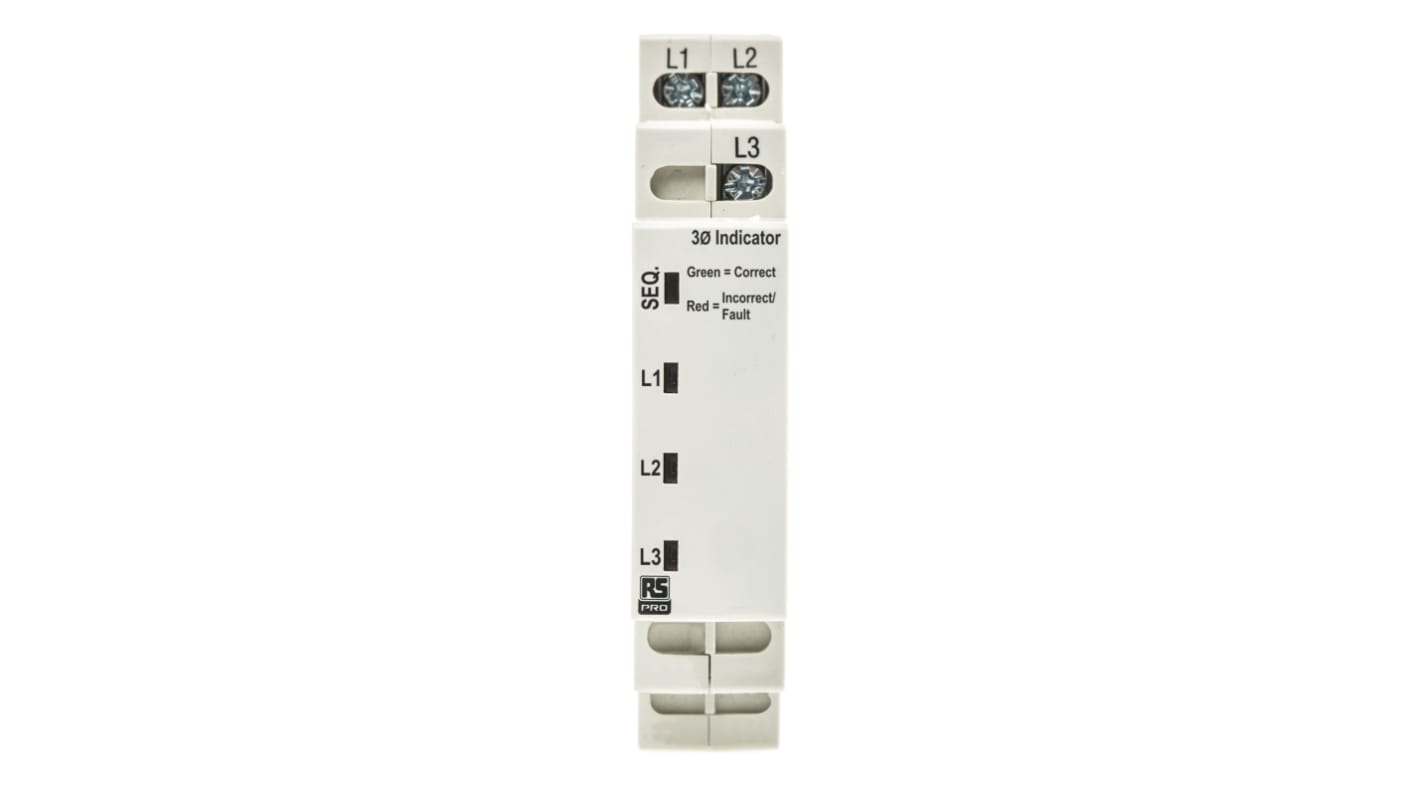

RS PRO Phase Sequence/Failure Indicator


RS PRO is proud to introduce this high-quality monitoring relay. This device is a 3-Phase indicator used for monitoring a 3-wire supply while providing a visual indication as to the status of the phase sequence/rotation and presence of all phases.

The monitor has one bi-colour LED used to indicate phase rotation and illuminates in green to confirm the sequence is correct. If the rotation is incorrect the LED changes to red. Three individual green LEDs are incorporated to indicate the status of each phase i.e. L1, L2, and L3.

Where would you find a monitoring relay?


Monitoring relays are commonly found in control panels, switchboards, or distribution systems that require visual indication and status of a 3-phase power supply.

Features and Benefits


  • Monitoring relay

  • Reliable protection

  • Used to indicate that all phases are present and phase sequence is correct (or incorrect)

  • Designed for use on 3-phase, 3-wire supplies

  • Individual Green LED’s to indicate the presence of each phase

  • Bi-colour Red/Green LED indication for phase sequence status

  • Compact, 17.5mm DIN Rail housing

  • Dimensions: W:17.5 mm x H:89 mm x D:59 mm

  • Weight 48 g

    • Electrical Specification


  • Input: L1, L2, L3

  • Supply/monitoring voltage U: 320 – 490V AC

  • Frequency range: 48 – 63Hz

  • Overvoltage category: III (IEC 60664)

  • Rated impulse withstand voltage: 4kV (1.2/50μS)

  • Power consumption (max.): <4VA

    • Dimensions


  • Width:17.5 mm x Height: 89 mm x Depth: 59 mm

    • Note


    Full specification and details can be found on the RS PRO datasheet.

    Applications


  • Distribution systems

  • Control Panels

  • Switchboards

    • Approvals

    • Declarations: CE, RoHS and C-tick compliant

    • Standards Met EMC: Immunity EN 61000-6-2, Emissions: EN 61000-6-4
