RS PRO Interchangeable Micrometer, Range 500mm →600mm
- RS 제품 번호:
- 261-4515
- 제조업체:
- RS PRO
가격 개당**
₩1,081,899.00
8 <재고있음> 5-9영업일내 홍콩 발송*
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
수량 | 한팩당 |
---|---|
1 + | ₩1,081,899.00 |
**다른 단위에 대한 가격 표시
- RS 제품 번호:
- 261-4515
- 제조업체:
- RS PRO
- COO (Country of Origin):
- CN

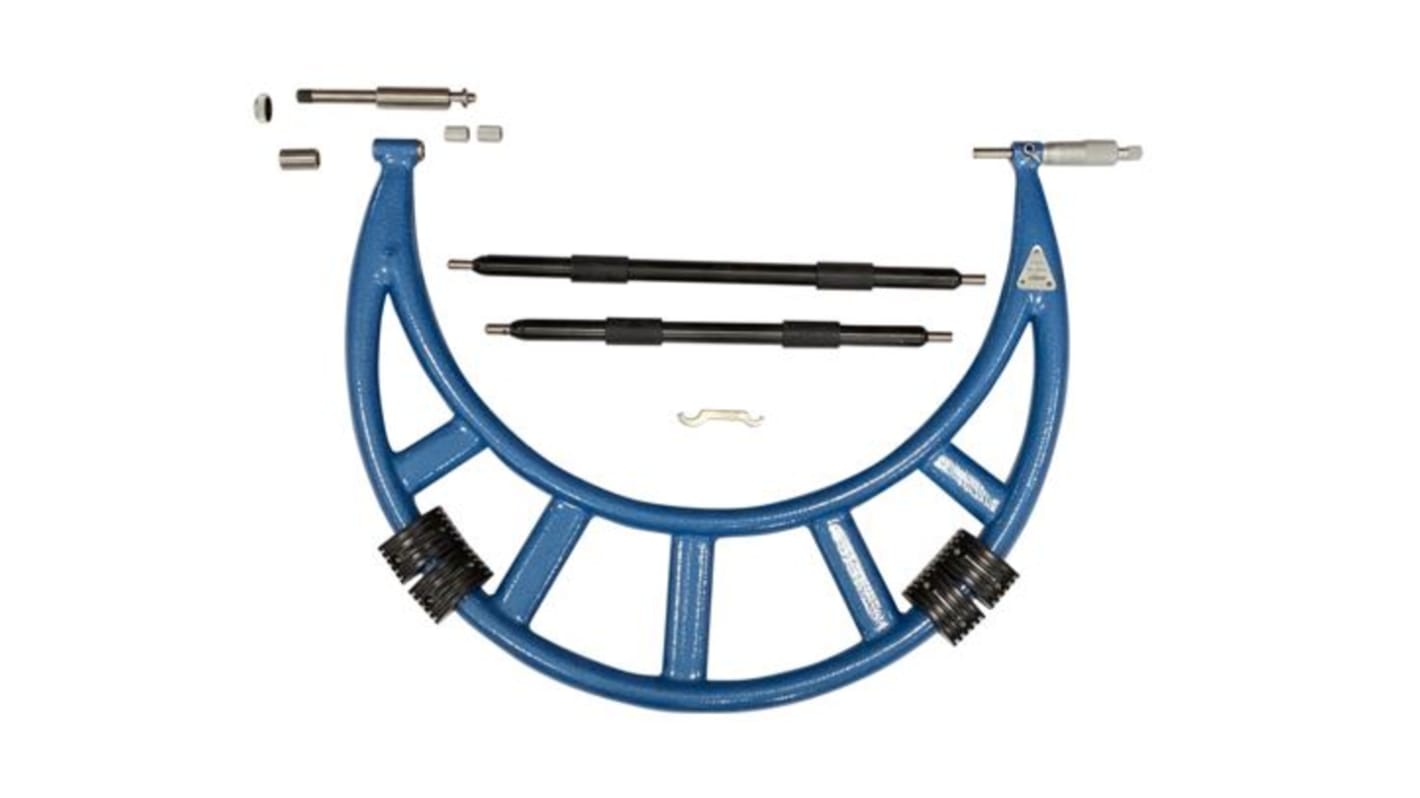

RS PRO Interchangeable Anvil Micrometer 500 to 600 mm range, 0.01 mm Resolution
Looking for a tool to measure the dimensions of components quickly, and accurately? This interchangeable anvil micrometer from RS PRO has been thoroughly tested to ensure accuracy, and consistency, providing a resolution of 0.01 mm with an accuracy of 0.0015 mm conforming to DIN 863. Micrometers are also known as a micrometer screw gauge. The RS PRO large Micrometer includes a fitted spindle lock, adjustment spanner with a storage box to protect the micrometer from damage when not in use. You will find this micrometer tool useful in mechanical and engineering settings where measurement accuracy is important.
Features & Benefits
- Accuracy conforms to DIN 863
- Lightweight tubular frame
- Microfine graduations provide accurate readings
- Micrometer metric graduations 0.01 mm
- Spindle locking lever
- Ratchet stop
- Tungsten carbide measuring face
- Tungsten carbide tipped fixed anvils
- Setting rods supplied
- Non-glare satin chrome barrel and sleeve
Applications
- Where accurate measurement is essential
- Measuring components within mechanical engineering and machining
- Manufacturing industries
- Electrical engineering
- External micrometers measure outer surfaces of any components
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards, theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
속성 | 값 |
---|---|
Accuracy | ±0.0015 mm |
Resolution | 0.01 mm |
Imperial or Metric | Metric |
Micrometer Type | Interchangeable |
SPC Data Output | No |
Battery Operated | No |
Set Contents | 1 x Adjustable extension anvil, 2 x Standard collars, 2 x Settings rods, Adjustment tools, Fitted case. |
Maximum Measurement | 600mm |
Minimum Measurement | 500mm |
