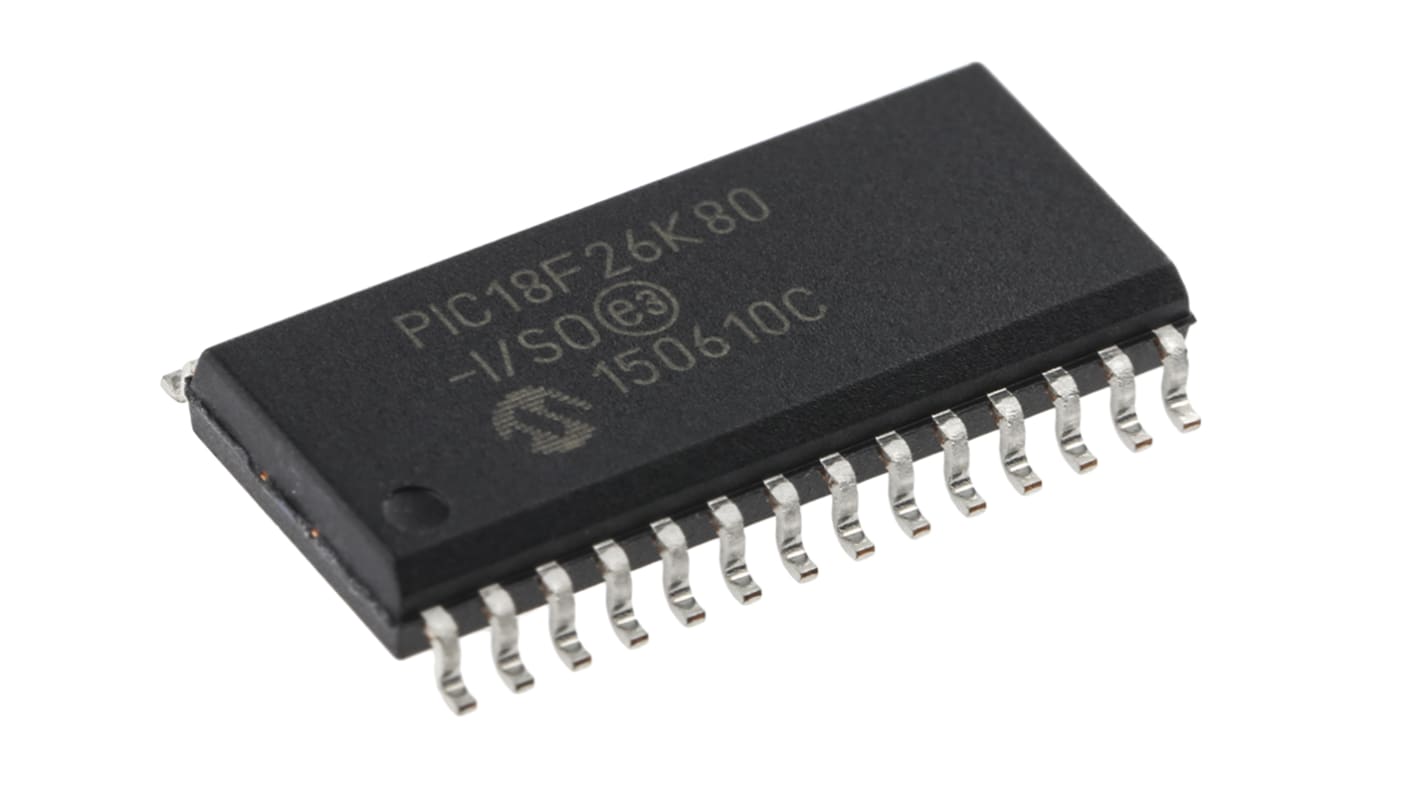

Microchip PIC18F26K80-I/SO, 8bit PIC Microcontroller, PIC18F, 64MHz, 64 kB Flash, 28-Pin SOIC
- RS 제품 번호:
- 715-4643P
- 제조사 부품 번호:
- PIC18F26K80-I/SO
- 제조업체:
- Microchip
가격 개당(튜브에 담겨 공급됨)**
₩5,662.56
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
수량 | 한팩당 |
|---|---|
| 7 - 13 | ₩5,662.56 |
| 14 + | ₩5,549.76 |
** 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 715-4643P
- 제조사 부품 번호:
- PIC18F26K80-I/SO
- 제조업체:
- Microchip
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Family Name | PIC18F | |
| Package Type | SOIC | |
| Mounting Type | Surface Mount | |
| Pin Count | 28 | |
| Device Core | PIC | |
| Data Bus Width | 8bit | |
| Program Memory Size | 64 kB | |
| Maximum Frequency | 64MHz | |
| RAM Size | 1.024 kB, 3.648 kB | |
| Number of PWM Units | 2 | |
| Number of SPI Channels | 1 | |
| Number of CAN Channels | 1 | |
| Number of USART Channels | 2 | |
| Typical Operating Supply Voltage | 3.3 V | |
| Number of I2C Channels | 1 | |
| Number of UART Channels | 0 | |
| Width | 7.5mm | |
| ADCs | 8 x 12 bit | |
| Number of Ethernet Channels | 0 | |
| Maximum Operating Temperature | +85 °C | |
| Number of LIN Channels | 0 | |
| Dimensions | 17.9 x 7.5 x 2.05mm | |
| Number of PCI Channels | 0 | |
| Number of ADC Units | 1 | |
| Height | 2.05mm | |
| Instruction Set Architecture | RISC | |
| Program Memory Type | Flash | |
| Pulse Width Modulation | 1 x 10 bit, 4 x 10 bit | |
| Minimum Operating Temperature | -40 °C | |
| Length | 17.9mm | |
