Renesas Electronics R5F10MPEDFB#30, 16 bit RL78, RL78/I1B Microcontroller, 24 MHz, 64kB FLASH, 100-Pin LFQFP

RS 제품 번호:: 261-6012
제조사 부품 번호:: R5F10MPEDFB#30
제조업체:: Renesas Electronics

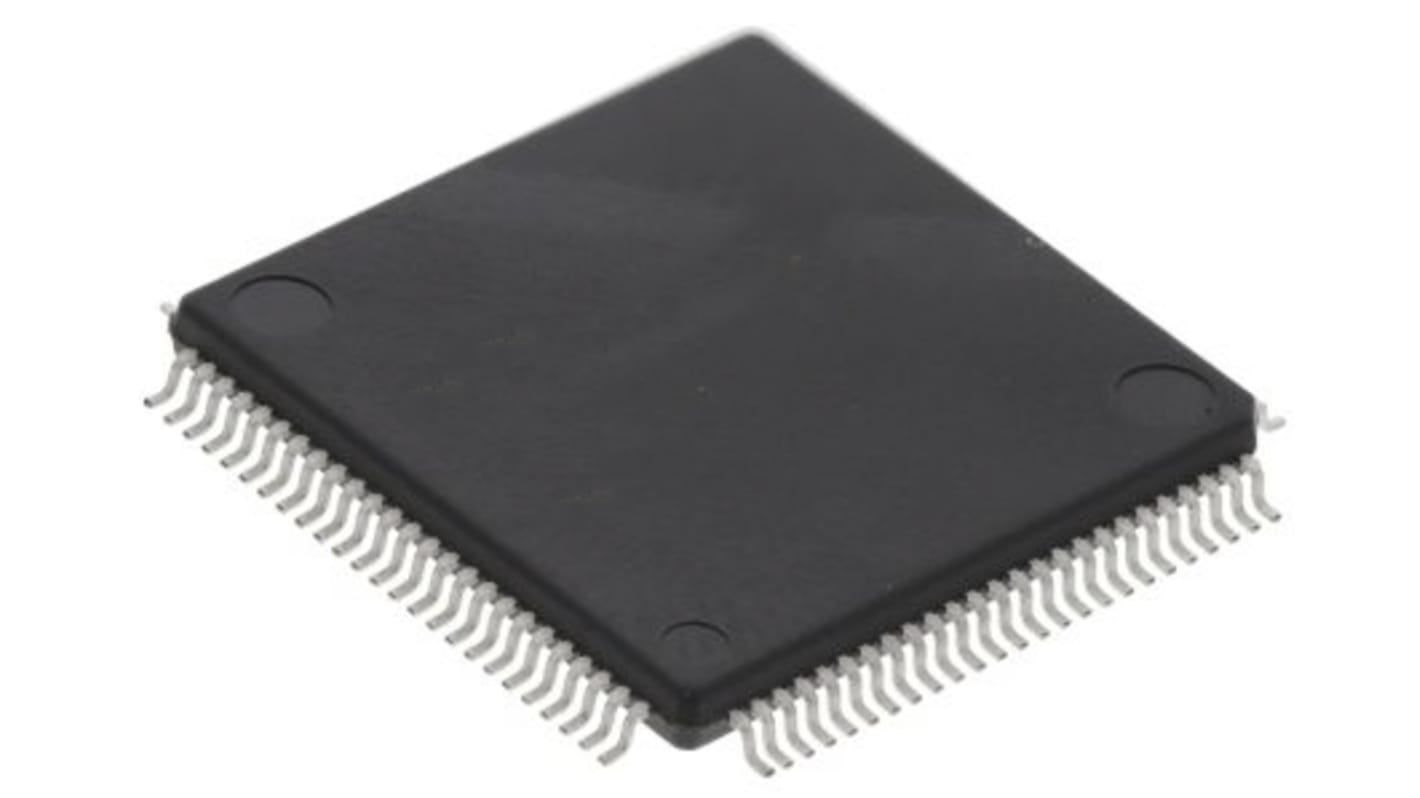

Renesas Electronics R5F10MPEDFB#30, 16 bit RL78, RL78/I1B Microcontroller, 24 MHz, 64kB FLASH, 100-Pin LFQFP

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 pack of 2 units)*

₩13,498.40

현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.

수량	한팩당	한팩당*
2 - 8	₩6,749.20	₩13,498.40
10 - 18	₩6,053.60	₩12,107.20
20 - 48	₩5,940.80	₩11,881.60
50 - 88	₩5,762.20	₩11,524.40
90 +	₩5,593.00	₩11,186.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 261-6012
제조사 부품 번호:: R5F10MPEDFB#30
제조업체:: Renesas Electronics

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Renesas Electronics
	Series	RL78/I1B
	Product Type	Microcontroller
	Package Type	LFQFP
	Mount Type	Surface
	Pin Count	100
	Device Core	RL78
	Data Bus Width	16bit
	Program Memory Size	64kB
	Maximum Clock Frequency	24MHz
	RAM Size	6kB
	Maximum Supply Voltage	5.5V
	Minimum Operating Temperature	-40°C
	Number of Programmable I/Os	69
	Maximum Operating Temperature	85°C
	Length	14mm
	Width	14 mm
	Standards/Approvals	IEC/UL 60730, RoHS
	Height	1.7mm
	Minimum Supply Voltage	1.9V
	Number of Timers	16
	ADCs	4 x 24 Bit, 6 x 10 Bit
	Program Memory Type	FLASH
	Automotive Standard	No
	Instruction Set Architecture	CISC

	모두 선택
	브랜드 Renesas Electronics
	Series RL78/I1B
	Product Type Microcontroller
	Package Type LFQFP
	Mount Type Surface
	Pin Count 100
	Device Core RL78
	Data Bus Width 16bit
	Program Memory Size 64kB
	Maximum Clock Frequency 24MHz
	RAM Size 6kB
	Maximum Supply Voltage 5.5V
	Minimum Operating Temperature -40°C
	Number of Programmable I/Os 69
	Maximum Operating Temperature 85°C
	Length 14mm
	Width 14 mm
	Standards/Approvals IEC/UL 60730, RoHS
	Height 1.7mm
	Minimum Supply Voltage 1.9V
	Number of Timers 16
	ADCs 4 x 24 Bit, 6 x 10 Bit
	Program Memory Type FLASH
	Automotive Standard No
	Instruction Set Architecture CISC

Datasheet-R5F10MPEDFB#30

COO (Country of Origin):: CN

The Renesas R5F10MPEDFB#30 microcontrollers adapt various electricity meter metrologies for different regulations by country and realize the efficient power measurement by the combination of low active current 96uA/MHz, standby current 0.66uA (Halt mode with 32kHz oscillator and RTC backup on), 24-bit ΔΣA/D converter, phase adjustment circuits and high pass filter. CPU clock frequency can be minimized taking advantage of the efficient power measurement features, which includes the low power ΔΣ A/D converter 0.53mA/ch. This microcontroller has +/- 1% high-accuracy high-speed on-chip oscillator with +/-0.05% frequency correction function and keep the system robust by the benefit of the accurate on-chip oscillator even when the external oscillator is stopped.

CPU= RL78 (16-bit)

Max frequency= 24 MHz

Program memory= 64 KB Flash memory

Pin count= 100

Renesas Electronics R5F10MPEDFB#30, 16 bit RL78, RL78/I1B Microcontroller, 24 MHz, 64kB FLASH, 100-Pin LFQFP
