제조사부품번호

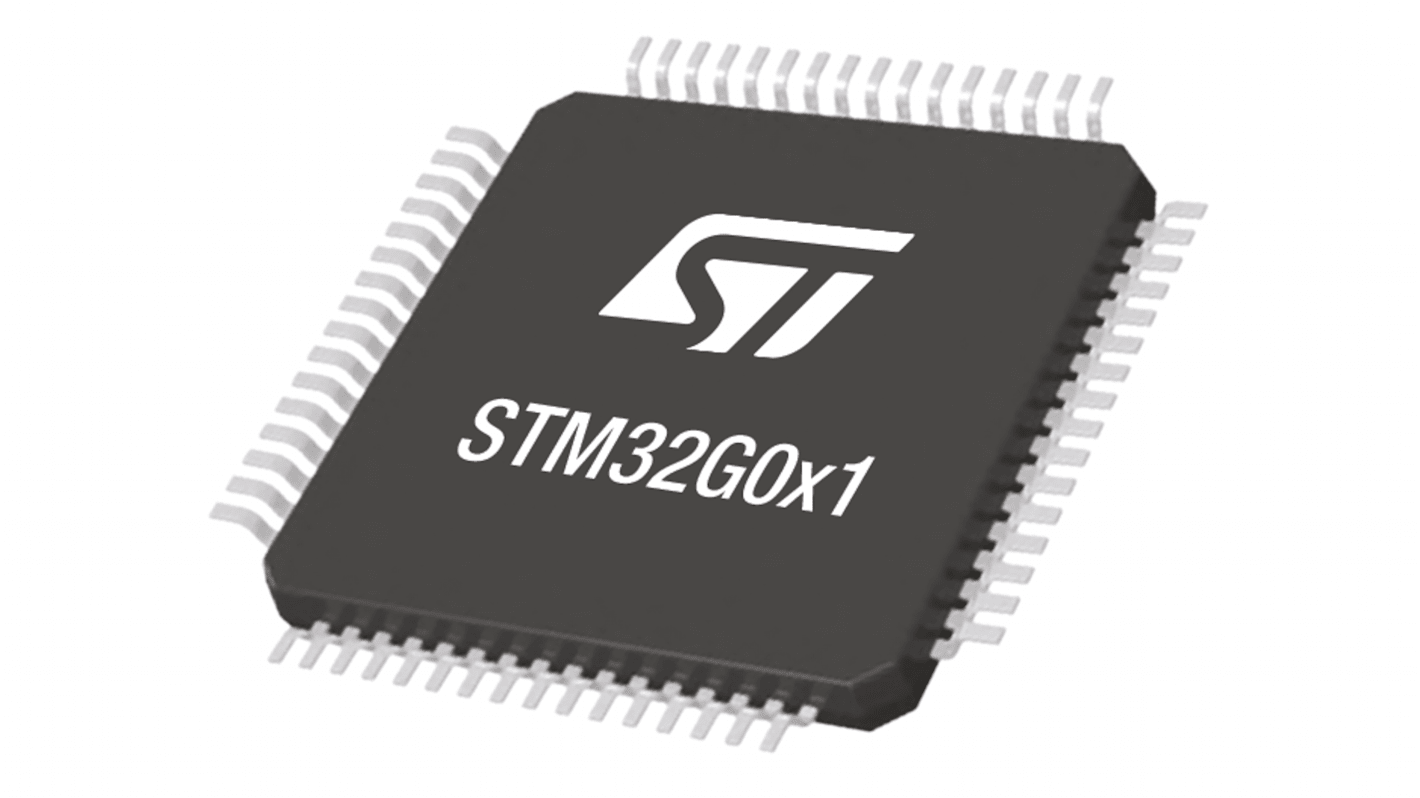

STMicroelectronics, 32 bit ARM Cortex M0+, STM32G0B1RE Microcontroller, 64 MHz, 512kB FLASH, 64-Pin LQFP

RS 제품 번호:: 216-2719P
제조사 부품 번호:: STM32G0B1RET6
제조업체:: STMicroelectronics

STMicroelectronics, 32 bit ARM Cortex M0+, STM32G0B1RE Microcontroller, 64 MHz, 512kB FLASH, 64-Pin LQFP

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

현재 비가용

죄송합니다. 언제 재입고될지 모릅니다.

RS 제품 번호:: 216-2719P
제조사 부품 번호:: STM32G0B1RET6
제조업체:: STMicroelectronics

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	STMicroelectronics
	Series	STM32G0B1RE
	Product Type	Microcontroller
	Package Type	LQFP
	Mount Type	Surface
	Pin Count	64
	Device Core	ARM Cortex M0+
	Data Bus Width	32bit
	Program Memory Size	512kB
	Maximum Clock Frequency	64MHz
	RAM Size	144kB
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	125°C
	Length	12mm
	Standards/Approvals	No
	Width	12mm
	Number of Programmable I/Os	94
	DACs	1 x 12 Bit
	Height	1.6mm
	Analogue Comparators	3
	Minimum Supply Voltage	1.7V
	Program Memory Type	FLASH
	ADCs	1 x 12 Bit
	Automotive Standard	No
	Instruction Set Architecture	RISC
	Number of Timers	15

	모두 선택
	브랜드 STMicroelectronics
	Series STM32G0B1RE
	Product Type Microcontroller
	Package Type LQFP
	Mount Type Surface
	Pin Count 64
	Device Core ARM Cortex M0+
	Data Bus Width 32bit
	Program Memory Size 512kB
	Maximum Clock Frequency 64MHz
	RAM Size 144kB
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 125°C
	Length 12mm
	Standards/Approvals No
	Width 12mm
	Number of Programmable I/Os 94
	DACs 1 x 12 Bit
	Height 1.6mm
	Analogue Comparators 3
	Minimum Supply Voltage 1.7V
	Program Memory Type FLASH
	ADCs 1 x 12 Bit
	Automotive Standard No
	Instruction Set Architecture RISC
	Number of Timers 15

Datasheet - STM32G0B1RET6

The STMicroelectronics STM32 have Arm Cortex based 32 bit core processor. This microcontroller has CPU frequency up to 64 MHz and 512 Kbytes flash memory size. This microcontroller have 64 numbers of pin count.

Two 12 bit DACs low power sample and hold

Reset and power management

12 channel DMA controller with flexible mapping

STMicroelectronics, 32 bit ARM Cortex M0+, STM32G0B1RE Microcontroller, 64 MHz, 512kB FLASH, 64-Pin LQFP
