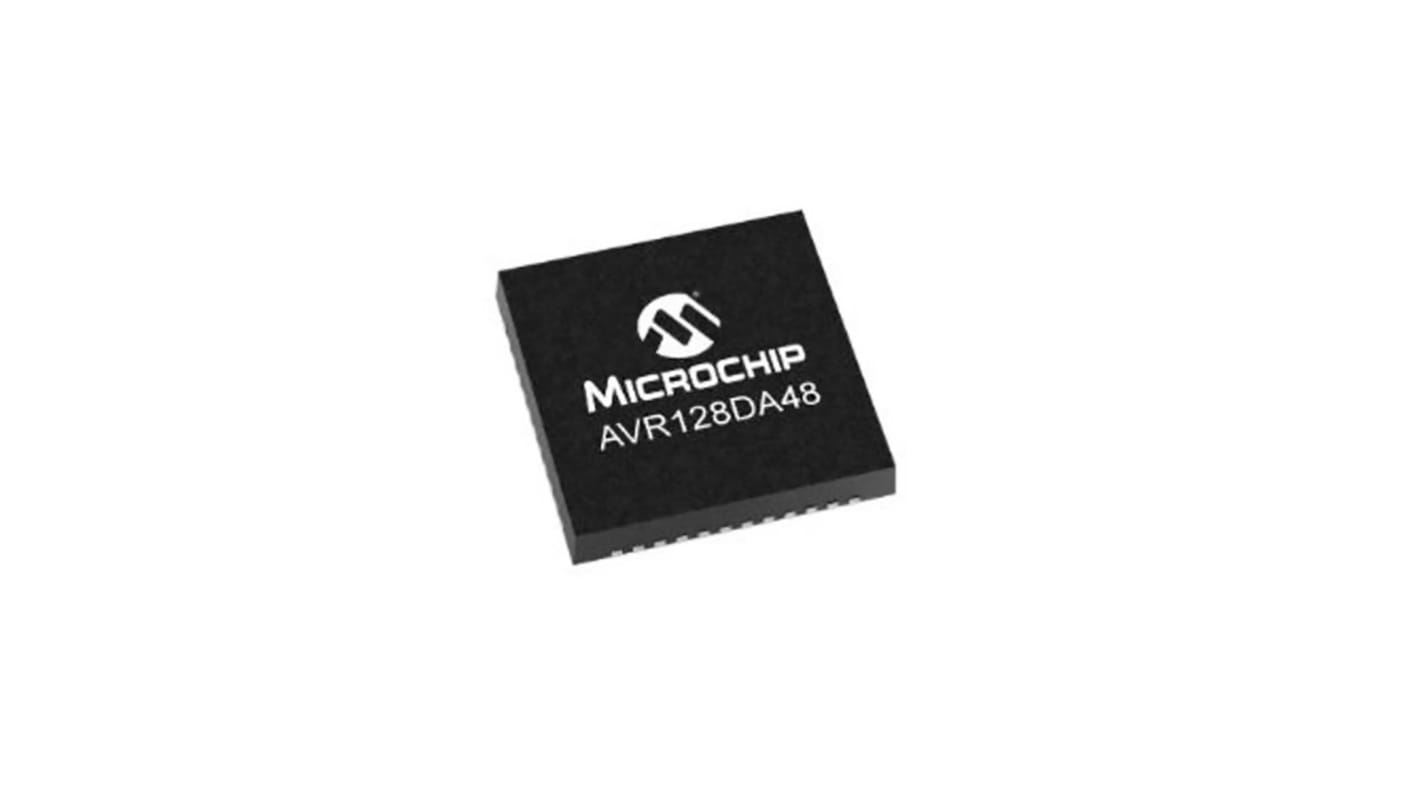

Microchip AVR128DA48-I/PT, 8bit AVR Microcontroller, AVR-DA, 24MHz, 128 kB Flash, 48-Pin TQFP
- RS 제품 번호:
- 203-4726P
- 제조사 부품 번호:
- AVR128DA48-I/PT
- 제조업체:
- Microchip
Subtotal 65 units (supplied in a tray)*
₩223,626.00
- 215 개 단위 배송 준비 완료
수량 | 한팩당 |
|---|---|
| 65 - 120 | ₩3,440.40 |
| 125 + | ₩3,372.72 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 203-4726P
- 제조사 부품 번호:
- AVR128DA48-I/PT
- 제조업체:
- Microchip
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Family Name | AVR-DA | |
| Package Type | TQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 48 | |
| Device Core | AVR | |
| Data Bus Width | 8bit | |
| Program Memory Size | 128 kB | |
| Maximum Frequency | 24MHz | |
| RAM Size | 16 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 1 | |
| Number of SPI Channels | 2 | |
| Number of I2C Channels | 2 | |
| Number of UART Channels | 5 | |
| Number of CAN Channels | 1 | |
| Typical Operating Supply Voltage | 1.8 → 5.5 V | |
| Number of USART Channels | 5 | |
| Number of PCI Channels | 0 | |
| Maximum Number of Ethernet Channels | 0 | |
| Instruction Set Architecture | RISC | |
| Number of Ethernet Channels | 0 | |
| Height | 1.05mm | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Number of ADC Units | 1 | |
| Number of LIN Channels | 0 | |
| Width | 7.1mm | |
| Dimensions | 7.1 x 7.1 x 1.05mm | |
| Pulse Width Modulation | 1 (3 Channel) | |
| Program Memory Type | Flash | |
| Length | 7.1mm | |
| ADCs | 18 x 12 bit | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Family Name AVR-DA | ||
Package Type TQFP | ||
Mounting Type Surface Mount | ||
Pin Count 48 | ||
Device Core AVR | ||
Data Bus Width 8bit | ||
Program Memory Size 128 kB | ||
Maximum Frequency 24MHz | ||
RAM Size 16 kB | ||
USB Channels 0 | ||
Number of PWM Units 1 | ||
Number of SPI Channels 2 | ||
Number of I2C Channels 2 | ||
Number of UART Channels 5 | ||
Number of CAN Channels 1 | ||
Typical Operating Supply Voltage 1.8 → 5.5 V | ||
Number of USART Channels 5 | ||
Number of PCI Channels 0 | ||
Maximum Number of Ethernet Channels 0 | ||
Instruction Set Architecture RISC | ||
Number of Ethernet Channels 0 | ||
Height 1.05mm | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +85 °C | ||
Number of ADC Units 1 | ||
Number of LIN Channels 0 | ||
Width 7.1mm | ||
Dimensions 7.1 x 7.1 x 1.05mm | ||
Pulse Width Modulation 1 (3 Channel) | ||
Program Memory Type Flash | ||
Length 7.1mm | ||
ADCs 18 x 12 bit | ||
128KB of flash
-40°C to +85°C operating temperature
Two level interrupt controller
Two cycle hardware multiplier
Three sleep modes
Power on reset circuit
Brown-out Detector (BOD)
