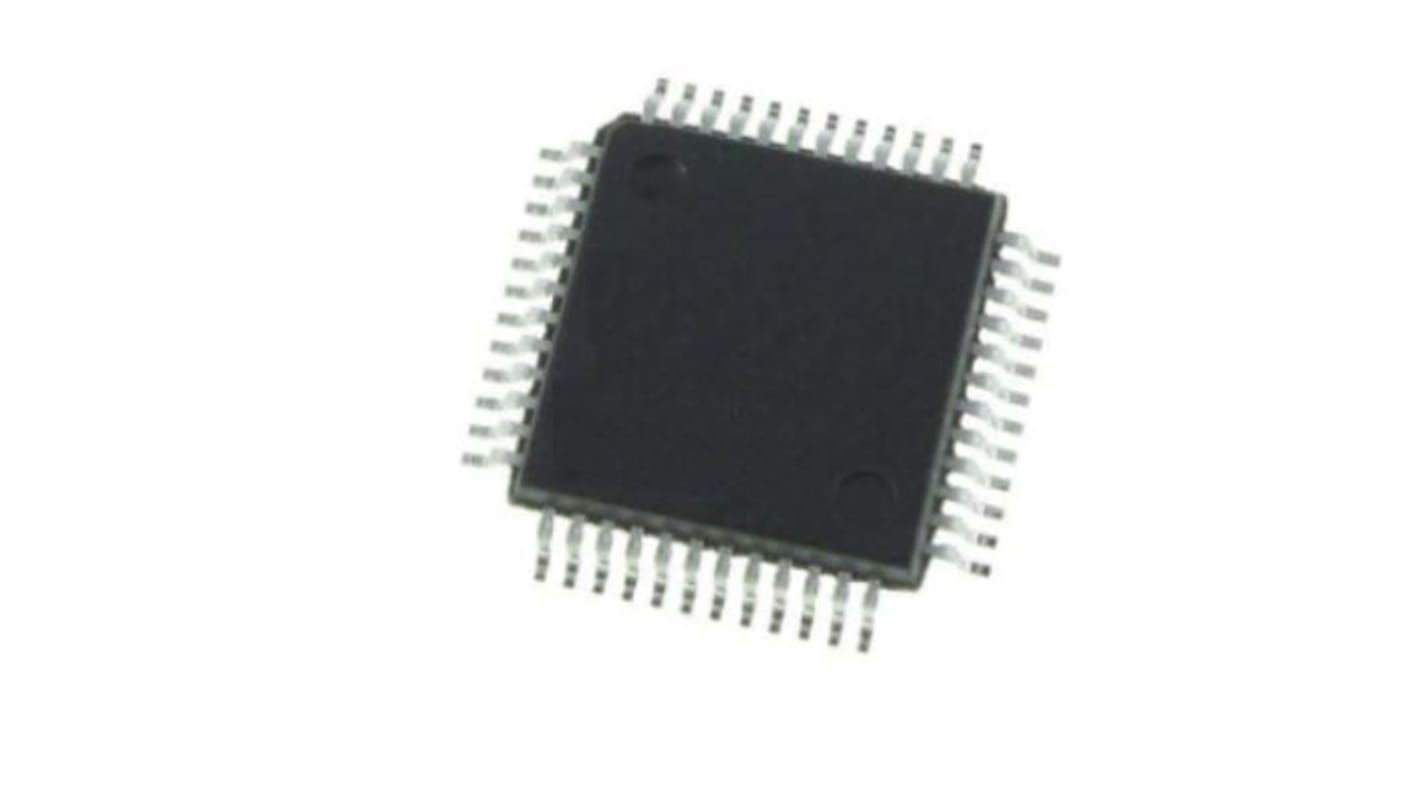

Microchip, 8 bit PIC, PIC16F19186 Microcontroller, 32 MHz, 28kB FLASH, 48-Pin TQFP

RS 제품 번호:: 144-9634P
제조사 부품 번호:: PIC16F19186-I/PT
제조업체:: Microchip

Microchip, 8 bit PIC, PIC16F19186 Microcontroller, 32 MHz, 28kB FLASH, 48-Pin TQFP

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal 65 units (supplied in a tray)*

₩264,160.00

일시적 품절

2026년 10월 19일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
65 - 120	₩4,064.00
125 +	₩3,976.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 144-9634P
제조사 부품 번호:: PIC16F19186-I/PT
제조업체:: Microchip

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Microchip
	Product Type	Microcontroller
	Series	PIC16F19186
	Package Type	TQFP
	Mount Type	Surface
	Pin Count	48
	Device Core	PIC
	Data Bus Width	8bit
	Interface Type	I2C, SPI, EUSART
	Program Memory Size	28kB
	Maximum Clock Frequency	32MHz
	RAM Size	2kB
	Maximum Supply Voltage	5.5V
	Analogue Comparators	2
	Minimum Operating Temperature	-40°C
	Maximum Power Dissipation Pd	800mW
	DACs	1 x 5 Bit
	Number of Programmable I/Os	43
	Maximum Operating Temperature	85°C
	Width	7mm
	Standards/Approvals	RoHS
	Height	1.05mm
	Length	7mm
	Minimum Supply Voltage	1.8V
	Program Memory Type	FLASH
	Number of Timers	4
	Instruction Set Architecture	RISC
	Automotive Standard	No
	ADCs	39 x 12 Bit

	모두 선택
	브랜드 Microchip
	Product Type Microcontroller
	Series PIC16F19186
	Package Type TQFP
	Mount Type Surface
	Pin Count 48
	Device Core PIC
	Data Bus Width 8bit
	Interface Type I2C, SPI, EUSART
	Program Memory Size 28kB
	Maximum Clock Frequency 32MHz
	RAM Size 2kB
	Maximum Supply Voltage 5.5V
	Analogue Comparators 2
	Minimum Operating Temperature -40°C
	Maximum Power Dissipation Pd 800mW
	DACs 1 x 5 Bit
	Number of Programmable I/Os 43
	Maximum Operating Temperature 85°C
	Width 7mm
	Standards/Approvals RoHS
	Height 1.05mm
	Length 7mm
	Minimum Supply Voltage 1.8V
	Program Memory Type FLASH
	Number of Timers 4
	Instruction Set Architecture RISC
	Automotive Standard No
	ADCs 39 x 12 Bit

PIC16(L)F19156 microcontrollers offer eXtreme Low-Power (XLP) LCD drive coupled with Core Independent Peripherals and Intelligent Analog. They are especially suited for battery powered LCD applications due to an integrated charge pump, high current I/O drive for backlighting, and battery backup of the Real Time Clock/Calendar (RTCC). Active clock tuning of the HFINTOSC provides a highly accurate clock source over voltage and temperature.

Up to 96 LCD Segments

LCD Charge Pump

Bias Generator

High-Precision Internal Oscillator

Active clock tuning of HFINTOSC over voltage and temperature

Windowed Watchdog Timer

Temperature Sensor

Memory Access Partition (MAP)

Write protect

Peripheral Pin Select

Peripheral Module Disable

Microchip, 8 bit PIC, PIC16F19186 Microcontroller, 32 MHz, 28kB FLASH, 48-Pin TQFP
