3M 1181 Conductive Copper Tape, 12.7mm x 16.5 m 155 °C Max
- RS 제품 번호:
- 110-8054
- Distrelec 제품 번호:
- 303-96-744
- 제조사 부품 번호:
- 1181/12,7
- 제조업체:
- 3M
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩78,097.50
제한된 재고
- 354 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩78,097.50 |
| 10 - 49 | ₩74,977.50 |
| 50 + | ₩71,857.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 110-8054
- Distrelec 제품 번호:
- 303-96-744
- 제조사 부품 번호:
- 1181/12,7
- 제조업체:
- 3M
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | 3M | |
| Product Type | Copper Tape | |
| Backing Material | Copper Foil | |
| Width | 12.7mm | |
| Thickness | 0.07mm | |
| Length | 16.5m | |
| Conductivity | Conductive | |
| Adhesion Strength | 3.8N/cm | |
| Adhesive Material | Acrylic | |
| Tensile Strength | 44N/cm | |
| Minimum Operating Temperature | -20°C | |
| Complies with EN Legislation | No | |
| Maximum Operating Temperature | 155°C | |
| Standards/Approvals | No | |
| Model Number | 1181 | |
| 모두 선택 | ||
|---|---|---|
브랜드 3M | ||
Product Type Copper Tape | ||
Backing Material Copper Foil | ||
Width 12.7mm | ||
Thickness 0.07mm | ||
Length 16.5m | ||
Conductivity Conductive | ||
Adhesion Strength 3.8N/cm | ||
Adhesive Material Acrylic | ||
Tensile Strength 44N/cm | ||
Minimum Operating Temperature -20°C | ||
Complies with EN Legislation No | ||
Maximum Operating Temperature 155°C | ||
Standards/Approvals No | ||
Model Number 1181 | ||

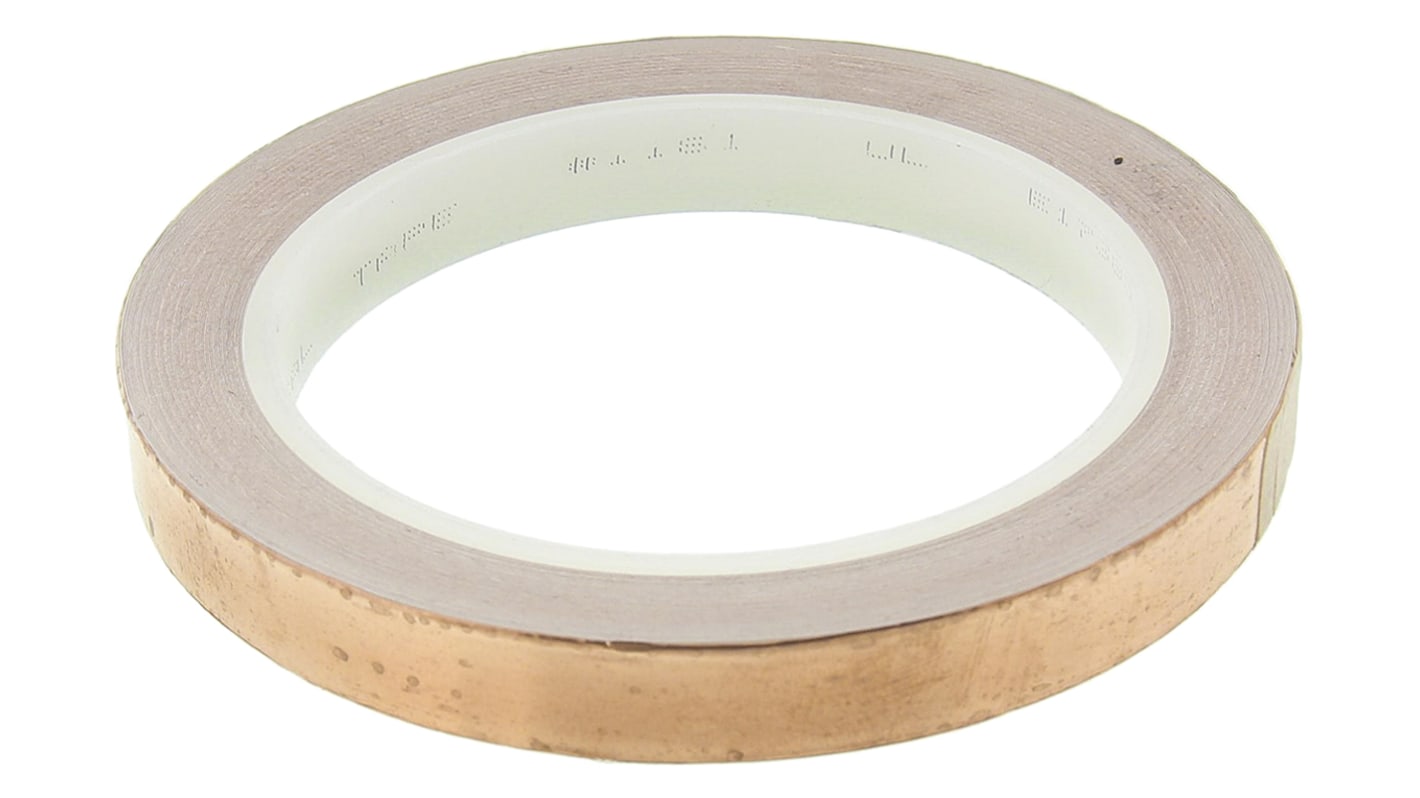

3M Conductive Copper Tape, 12.7mm (W) x 16.5m (L) - 1181 Series - 1181/12.7
Need a reliable conductive tape for electromagnetic or radio-electrical shielding? This dead-soft copper tape from 3M will do the job. It features a unique electrically conductive pressure-sensitive acrylic adhesive and it's highly resistant to solvents, UV rays, humidity and mould. You can solder this tape, and it comes with a removable liner to enable easy handling and die-cutting. Tensile strength of 44N/cm means you can rely on this product for durability.
• Operating temperature range of -20°C to +155°C makes it suitable for challenging conditions• Adhesion strength of 3.8N/cm keeps it firmly in place
Applications
• Electromagnetic or radio-electrical shielding• Grounding and EMI (electromagnetic interference) shielding in equipment• Shielded rooms
What's the difference between conductive copper tape and non-conductive copper tape?
• Designed for electromagnetic or radio-electrical shielding
• Suitable for soldering
• Grounding and EMI shielding in equipment
• Components
• Shielded rooms
Non-conductive copper tape is conductive on one side only. Conductive copper tape is conductive on both sides, meaning you can easily make electrical connections by simply taping multiple lengths to one another.
How does shielding with copper tape work?
Shielding can protect delicate components from electromagnetic interference by creating a Faraday cage – a conductive, grounded enclosure – around the components.
Why choose 3M?
3M are a trusted name in tapes and adhesives. Whether for industrial or even domestic applications, 3M has a tape to suit your needs. From automotive masking to office supplies, 3M tapes are relied on by millions to get the job done. RS supplies a wide range of quality 3M tapes to suit the needs of the most discerning customer.
3M Tape Selector
Need advice on choosing the right Tape? Use our Product Selector to help you make the right choice!
