3M 7100055597 Conductive Aluminium Tape, 55mm x 610 mm 150 °C Max
- RS 제품 번호:
- 335-437
- 제조사 부품 번호:
- 7100055597
- 제조업체:
- 3M
Subtotal (1 unit)*
₩3,119,824.50
제조사가 재고 비축중
- 2026년 6월 22일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩3,119,824.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 335-437
- 제조사 부품 번호:
- 7100055597
- 제조업체:
- 3M
사양
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | 3M | |
| Product Type | Aluminium Tape | |
| Thickness | 0.2mm | |
| Width | 55mm | |
| Length | 610mm | |
| Conductivity | Conductive | |
| Colour | Silver | |
| Adhesive Material | Rubber | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Model Number | 7100055597 | |
| Standards/Approvals | RoHS Exempt | |
| 모두 선택 | ||
|---|---|---|
브랜드 3M | ||
Product Type Aluminium Tape | ||
Thickness 0.2mm | ||
Width 55mm | ||
Length 610mm | ||
Conductivity Conductive | ||
Colour Silver | ||
Adhesive Material Rubber | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Model Number 7100055597 | ||
Standards/Approvals RoHS Exempt | ||
제외
- COO (Country of Origin):
- US

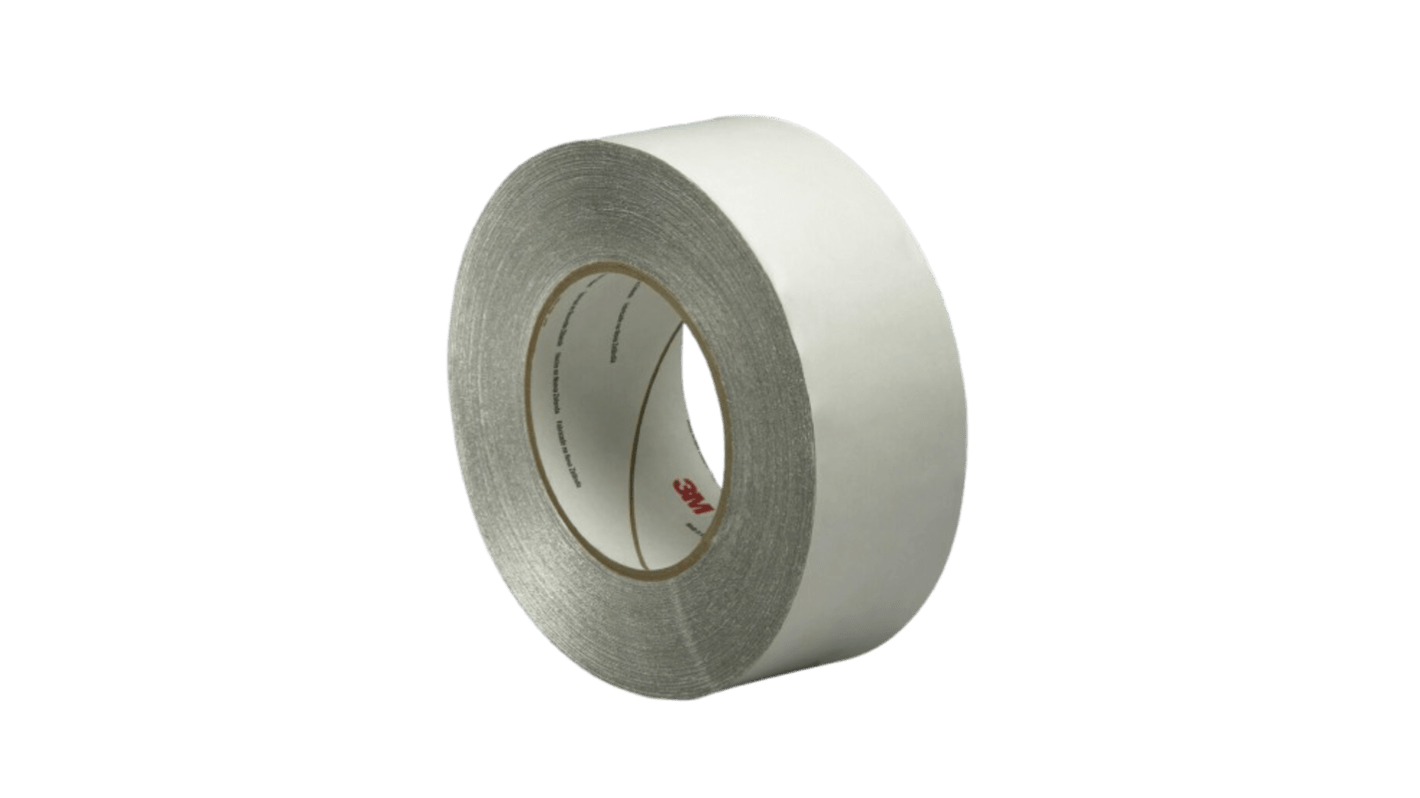

3M Aluminium Tape, 55mm Width, 0.20mm Thickness - 7100055597
This aluminium tape is a conductive foil product designed to provide electrical continuity and thermal resistance in industrial environments. It features a metallic backing with a rubber-based adhesive and is intended for tasks requiring conductive joining, EMI shielding and heat exposure management within automation, electronics, electrical and mechanical settings.
Features and Benefits:
• Conductive backing ensures reliable electrical continuity for shielding
• Rubber adhesive delivers strong initial tack for secure placement
• Withstands temperatures up to 150°C for hot‑work applications
• Maintains adhesion down to -55°C for cold‑environment performance
• Thickness 0.20mm provides conformable foil strength
• Available in 55mm width for narrow joint and seam work
• Rubber adhesive delivers strong initial tack for secure placement
• Withstands temperatures up to 150°C for hot‑work applications
• Maintains adhesion down to -55°C for cold‑environment performance
• Thickness 0.20mm provides conformable foil strength
• Available in 55mm width for narrow joint and seam work
Applications
• Suitable for EMI shielding on electronic enclosures
• Ideal for repairing conductive pathways on machinery
• Used for earthing seams in electrical panels
• Can be used for heat-resistant sealing on ductwork
• Used with sensors and cable runs to maintain continuity
• Ideal for repairing conductive pathways on machinery
• Used for earthing seams in electrical panels
• Can be used for heat-resistant sealing on ductwork
• Used with sensors and cable runs to maintain continuity
How does the adhesive behave on textured versus smooth substrates?
The rubber-based adhesive provides Rapid initial tack and conforms to irregular surfaces, promoting surface contact on both smooth metals and mildly textured substrates to maintain conductivity.
Can it be used for outdoor installations exposed to variable weather?
The tape tolerates a wide temperature range from -55°C to 150°C, supporting outdoor thermal extremes
environmental longevity will depend on exposure to UV and chemicals not specified here.
How is the product handled for precise application?
The 55mm width and 0.20mm thickness allow controlled placement and easy trimming for narrow seams and detailed repairs without excessive bulk.
What performance advantage does the conductive backing offer in electronic assemblies?
The conductive foil backing reduces electromagnetic interference by creating a conductive path for shielding and earthing when applied over seams or joints.
Are there any regulatory notes affecting use in restricted applications?
The product is listed as RoHS exempt, which may influence selection where RoHS status is a specification criterion.
