제조사부품번호

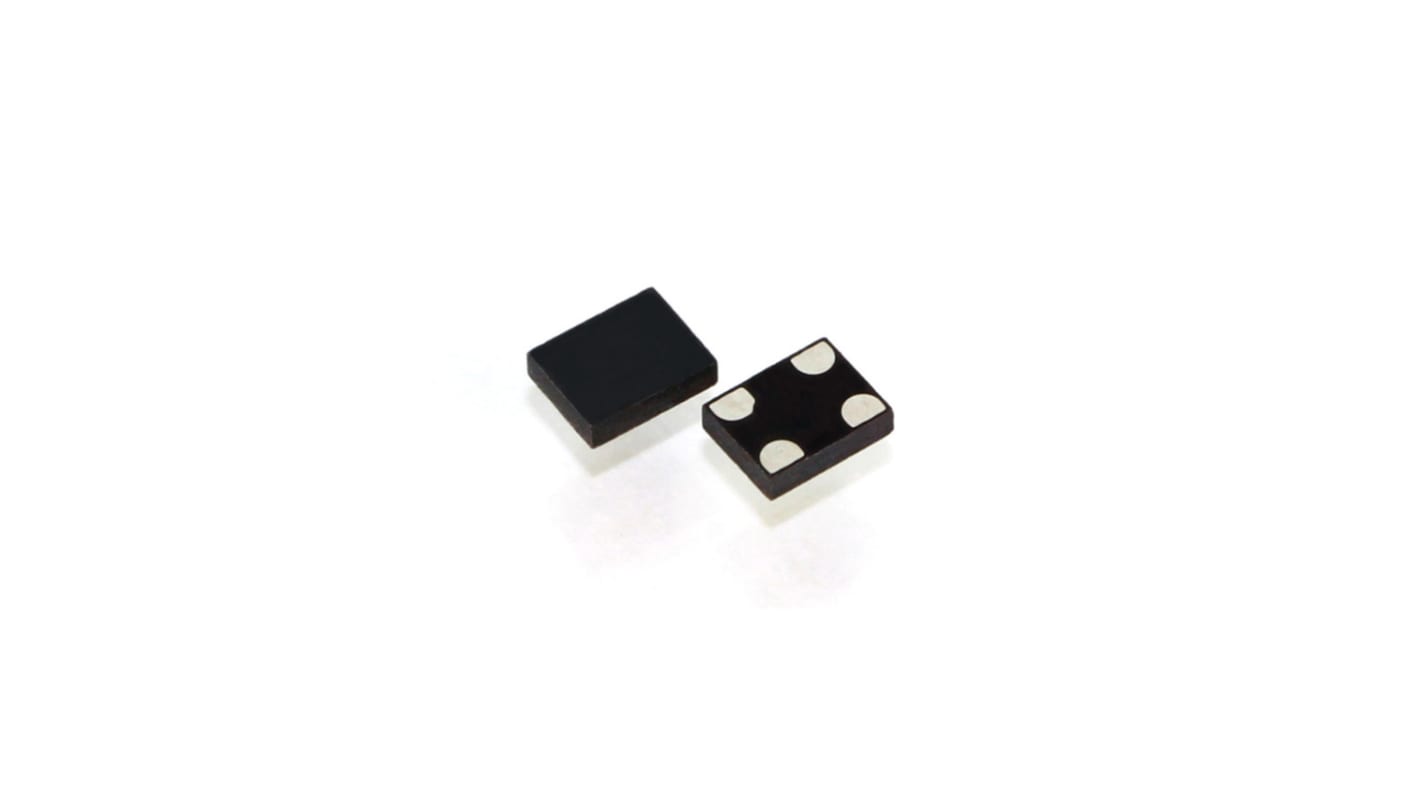

Ecliptek 32.768 MHz MEMS Oscillator, 4-Pin Tape & Reel 5 % 50 ppm EMK33H2H-32.768M TR

RS 제품 번호:: 219-2061
제조사 부품 번호:: EMK33H2H-32.768M TR
제조업체:: Ecliptek

Ecliptek 32.768 MHz MEMS Oscillator, 4-Pin Tape & Reel 5 % 50 ppm EMK33H2H-32.768M TR

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 pack of 2 units)*

₩11,940.00

마지막 RS 재고

최종적인 944 개 unit(s)이 배송 준비 됨

수량	한팩당	한팩당*
2 - 248	₩5,970.00	₩11,940.00
250 - 498	₩5,840.00	₩11,680.00
500 +	₩5,710.00	₩11,420.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 219-2061
제조사 부품 번호:: EMK33H2H-32.768M TR
제조업체:: Ecliptek

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Ecliptek
	Product Type	MEMS Oscillator
	Maximum Output Frequency	32.768MHz
	Frequency Tolerance	5 %
	Frequency Stability	50 ppm
	Mount Type	Surface
	Packaging	Tape & Reel
	Output Level	CMOS
	Package Type	Tape & Reel
	Pin Count	4
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Series	EMK33
	Height	0.85mm
	Length	3.2mm
	Standards/Approvals	RoHS, REACH
	Width	2.5mm
	Automotive Standard	No

	모두 선택
	브랜드 Ecliptek
	Product Type MEMS Oscillator
	Maximum Output Frequency 32.768MHz
	Frequency Tolerance 5 %
	Frequency Stability 50 ppm
	Mount Type Surface
	Packaging Tape & Reel
	Output Level CMOS
	Package Type Tape & Reel
	Pin Count 4
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Series EMK33
	Height 0.85mm
	Length 3.2mm
	Standards/Approvals RoHS, REACH
	Width 2.5mm
	Automotive Standard No

Datasheet - EMK33H2H-32.768M TR

COO (Country of Origin):: MY

The Ecliptek EMK33 series MEMS clock oscillator has enable/disable function and nominal frequency of 32.768MHz. It has tri-state high impedance pin connection. This oscillator comes in tape and reel packaging.

Mounting Type: Surface Mount

Output type: CMOS

Frequency Stability: ±50ppm

Package: 4-SMD, No Lead

Operating Temperature: -40°C to 85°C

Ecliptek 32.768 MHz MEMS Oscillator, 4-Pin Tape & Reel 5 % 50 ppm EMK33H2H-32.768M TR
