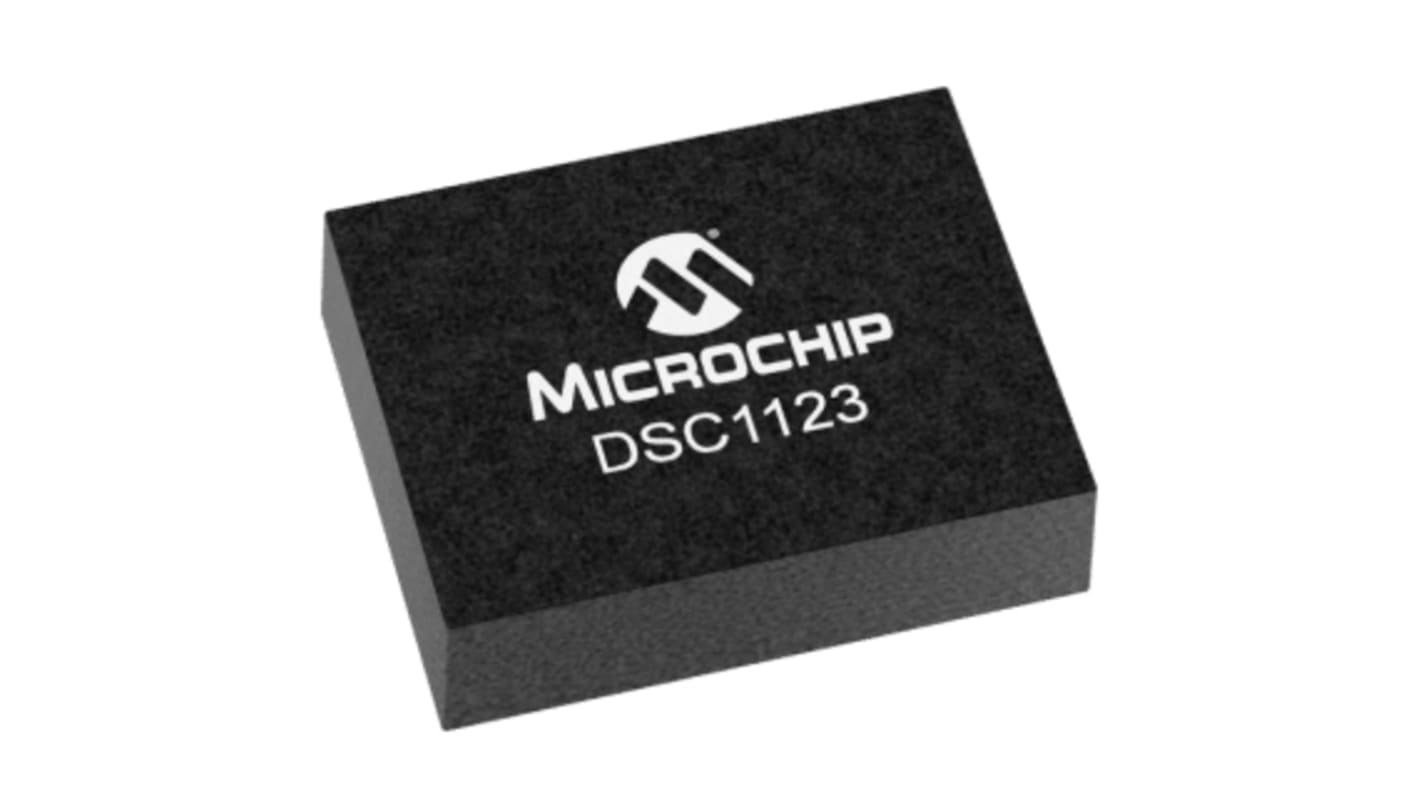

Microchip 150 MHz Oscillator, 6-Pin VDFN ±25 ppm DSC1123CI2-150.0000

RS 제품 번호:: 162-3725
제조사 부품 번호:: DSC1123CI2-150.0000
제조업체:: Microchip

Microchip 150 MHz Oscillator, 6-Pin VDFN ±25 ppm DSC1123CI2-150.0000

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 pack of 2 units)*

₩5,226.00

마지막 RS 재고

최종적인 422 개 unit(s)이 배송 준비 됨

수량	한팩당	한팩당*
2 - 26	₩2,613.00	₩5,226.00
28 - 54	₩2,564.25	₩5,128.50
56 +	₩2,515.50	₩5,031.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 162-3725
제조사 부품 번호:: DSC1123CI2-150.0000
제조업체:: Microchip

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Microchip
	Product Type	Oscillator
	Maximum Output Frequency	150MHz
	Frequency Stability	±25 ppm
	Output Level	LVDS
	Mount Type	Surface
	Packaging	Tube
	Package Type	VDFN
	Pin Count	6
	Maximum Operating Supply Voltage	4V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Height	0.85mm
	Minimum Operating Supply Voltage	-0.3V
	Length	3.2mm
	Standards/Approvals	ISO, RoHS, EN
	Series	DSC1123
	Width	2.5mm
	Automotive Standard	No

	모두 선택
	브랜드 Microchip
	Product Type Oscillator
	Maximum Output Frequency 150MHz
	Frequency Stability ±25 ppm
	Output Level LVDS
	Mount Type Surface
	Packaging Tube
	Package Type VDFN
	Pin Count 6
	Maximum Operating Supply Voltage 4V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Height 0.85mm
	Minimum Operating Supply Voltage -0.3V
	Length 3.2mm
	Standards/Approvals ISO, RoHS, EN
	Series DSC1123
	Width 2.5mm
	Automotive Standard No

The DSC1103 & DSC1123 series of high performance oscillators utilizes a proven silicon MEMS technology to provide excellent jitter and stability over a wide range of supply voltages and temperatures. By eliminating the need for quartz or SAW technology, MEMS oscillators significantly enhance reliability and accelerate product development, while meeting stringent clock performance criteria for a variety of communications, storage, and networking applications.

Low RMS Phase Jitter:<1 ps (typ.)

High Stability:±10 ppm, ±25 ppm, ±50 ppm

High Supply Noise Rejection:–50 dBc

Wide Frequency Range:

2.3 MHz – 460 MHz

Small Industry Standard Footprints

Excellent Shock and Vibration Immunity

High Reliability

20x better MTF than quartz-based devices

Low Current Consumption

Standby and Output Enable Functions

Lead Free
