현재 비가용

죄송합니다. 언제 재입고될지 모릅니다.

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Microchip
	Product Type	Oscillator
	Maximum Output Frequency	125MHz
	Frequency Stability	±10 ppm
	Mount Type	Surface
	Output Level	LVDS
	Packaging	Tube
	Package Type	VDFN
	Pin Count	6
	Maximum Operating Supply Voltage	4V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Height	0.85mm
	Series	DSC1123
	Width	2.5mm
	Standards/Approvals	EN, RoHS, ISO
	Minimum Operating Supply Voltage	-0.3V
	Length	3.2mm
	Automotive Standard	No

	모두 선택
	브랜드 Microchip
	Product Type Oscillator
	Maximum Output Frequency 125MHz
	Frequency Stability ±10 ppm
	Mount Type Surface
	Output Level LVDS
	Packaging Tube
	Package Type VDFN
	Pin Count 6
	Maximum Operating Supply Voltage 4V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Height 0.85mm
	Series DSC1123
	Width 2.5mm
	Standards/Approvals EN, RoHS, ISO
	Minimum Operating Supply Voltage -0.3V
	Length 3.2mm
	Automotive Standard No

The DSC1103 & DSC1123 series of high performance oscillators utilizes a proven silicon MEMS technology to provide excellent jitter and stability over a wide range of supply voltages and temperatures. By eliminating the need for quartz or SAW technology, MEMS oscillators significantly enhance reliability and accelerate product development, while meeting stringent clock performance criteria for a variety of communications, storage, and networking applications.

High Stability: ±10, ±25, ±50 ppm

Wide Temperature Range:

Industrial: -40°C to 85°C

Ext. commercial: -20°C to 70°C

High Supply Noise Rejection: -50dBc

Short Lead Time: 2 Weeks

Wide Freq. Range: 2.3 to 460MHz

Small Industry Standard Footprints

2.5mm x 2.0mm, 3.2mm x 2.5mm, 5.0mm x 3.2mm, & 7.0mm x 5.0mm

Excellent Shock & Vibration Immunity

High Reliability:

20x better MTF than quartz oscillators

Low Current Consumption:

Supply Range of 2.25V to 3.6V

Standby & Output Enable Function

Lead free

LVPECL & HCSL Versions Available.

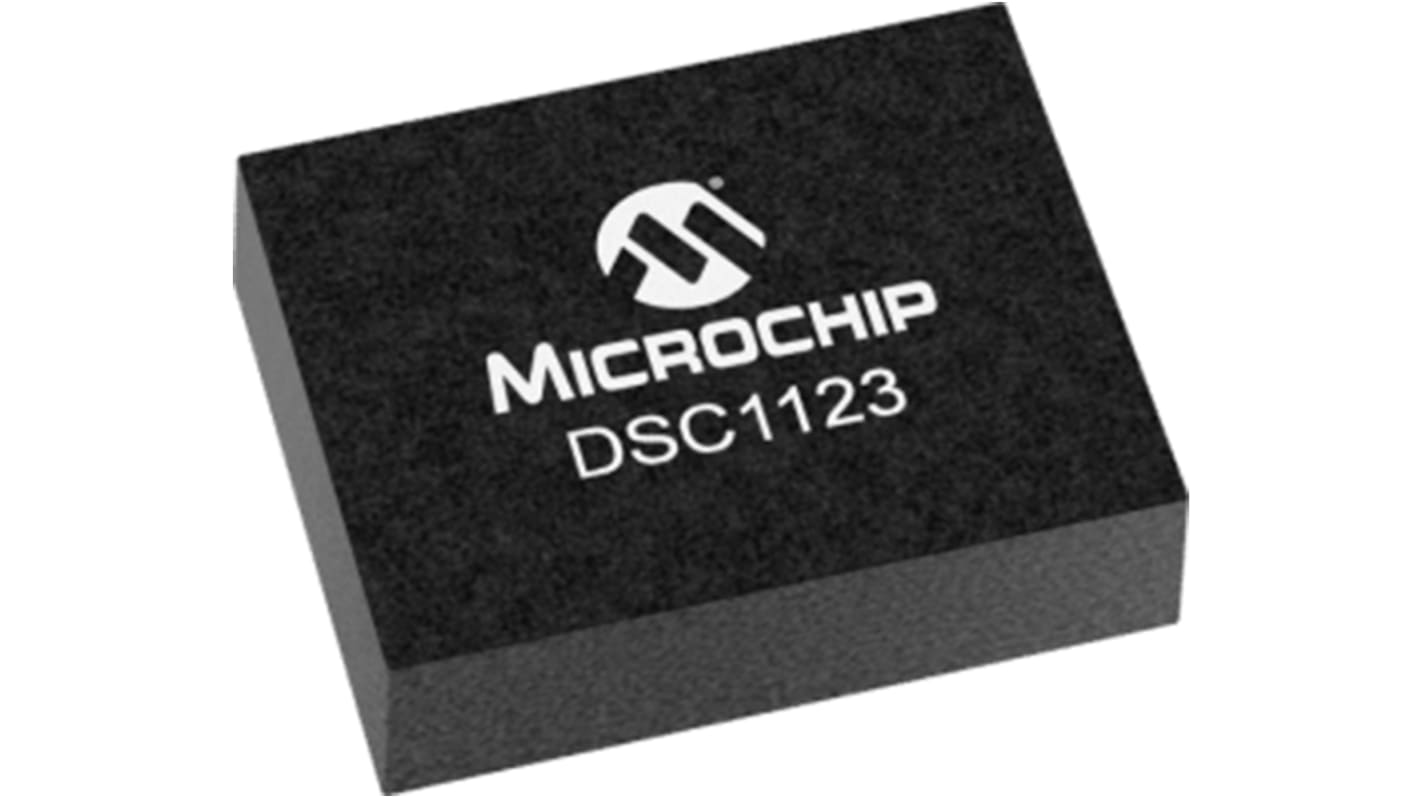

Microchip 125 MHz Oscillator, 6-Pin VDFN ±10 ppm
