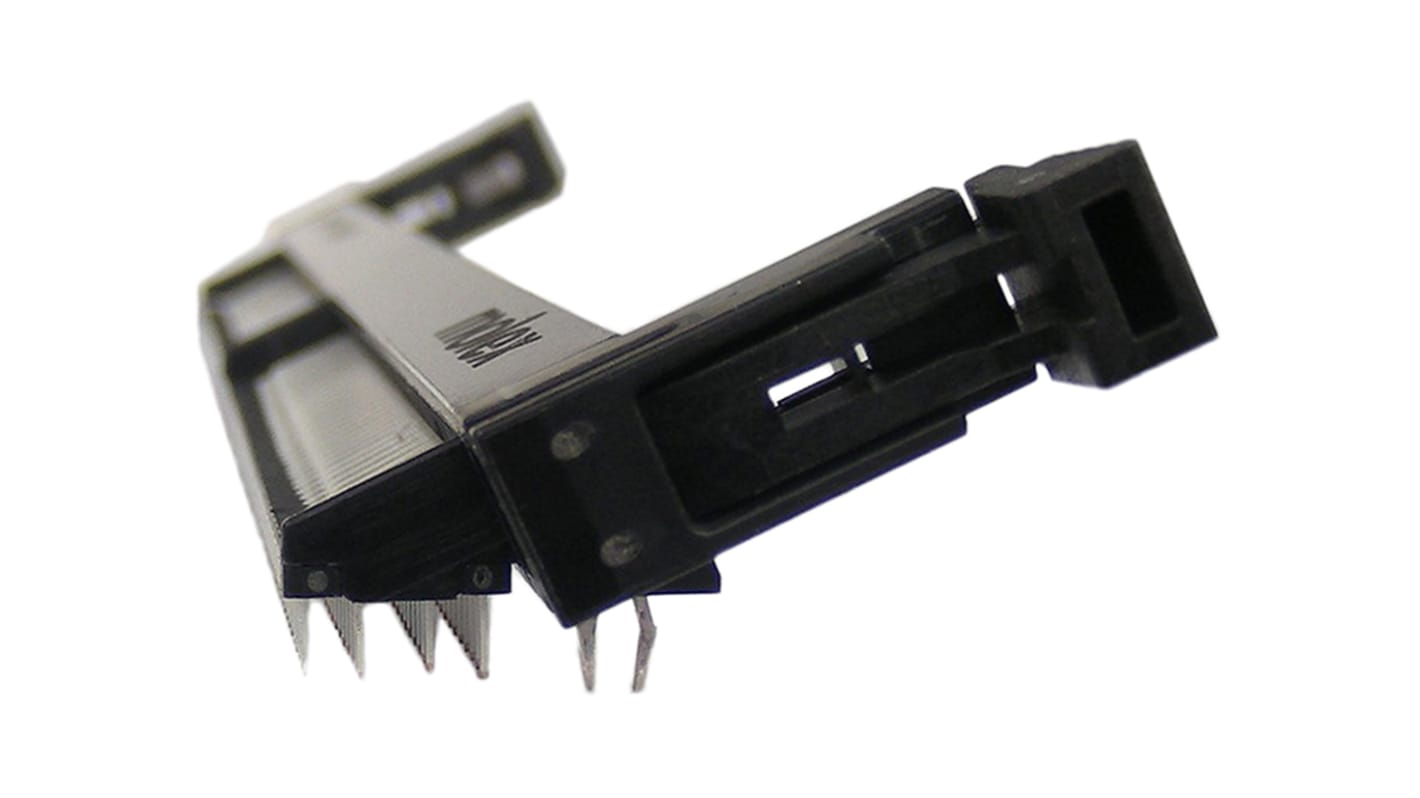

Molex 0.85mm Pitch 288 Way, Right Angle PCB Mount Mount DDR4 DIMM Socket ,29.0 V ,750.0mA
- RS 제품 번호:
- 896-2287
- 제조사 부품 번호:
- 151080-0101
- 제조업체:
- Molex
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩48,184.40
일시적 품절
- 2026년 5월 08일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 2 | ₩48,184.40 |
| 3 - 5 | ₩47,131.60 |
| 6 + | ₩46,116.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 896-2287
- 제조사 부품 번호:
- 151080-0101
- 제조업체:
- Molex
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Molex | |
| Memory Socket Type | DIMM Socket | |
| Gender | Female | |
| Body Orientation | Right Angle | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel (Mating), Tin over Nickel (Termination) | |
| Number of Contacts | 288 | |
| Pitch | 0.85mm | |
| Mounting Type | PCB Mount | |
| Termination Method | Through Hole | |
| Housing Material | Glass Filled Polyamide | |
| SDRAM Type | DDR4 | |
| Latching | Yes | |
| Row Spacing | 1.58mm | |
| Current Rating | 750.0mA | |
| Maximum Operating Temperature | +85°C | |
| Series | 151080 | |
| Voltage Rating | 29.0 V | |
| Minimum Operating Temperature | -55°C | |
| 모두 선택 | ||
|---|---|---|
브랜드 Molex | ||
Memory Socket Type DIMM Socket | ||
Gender Female | ||
Body Orientation Right Angle | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel (Mating), Tin over Nickel (Termination) | ||
Number of Contacts 288 | ||
Pitch 0.85mm | ||
Mounting Type PCB Mount | ||
Termination Method Through Hole | ||
Housing Material Glass Filled Polyamide | ||
SDRAM Type DDR4 | ||
Latching Yes | ||
Row Spacing 1.58mm | ||
Current Rating 750.0mA | ||
Maximum Operating Temperature +85°C | ||
Series 151080 | ||
Voltage Rating 29.0 V | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- CN
Molex DDR4 DIMM Socket Connectors
These DDR4 DIMM socket connectors from Molex meet the JEDEC specification and support UDIMMs, RDIMMs and LRDIMM memory applications. These DDR4 DIMM sockets have greater data speeds and a lower current of 0.75A per terminal compared to 1A for ULP DDR3 DIMM sockets. Additional features of these DDR4 DIMM socket connectors include a compact design offering PCB space saving, metal reinforced latch tower housings and anti-stubbing mating contacts.
Stock number 896-2287 is a 25° angled version which offers 45° vertical space saving over the standard vertical versions.
Typical applications for these DDR4 DIMM sockets include data and computing eg high-end computing, PCs, RAID/storage and telecommunications and networking
Stock number 896-2287 is a 25° angled version which offers 45° vertical space saving over the standard vertical versions.
Typical applications for these DDR4 DIMM sockets include data and computing eg high-end computing, PCs, RAID/storage and telecommunications and networking
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
