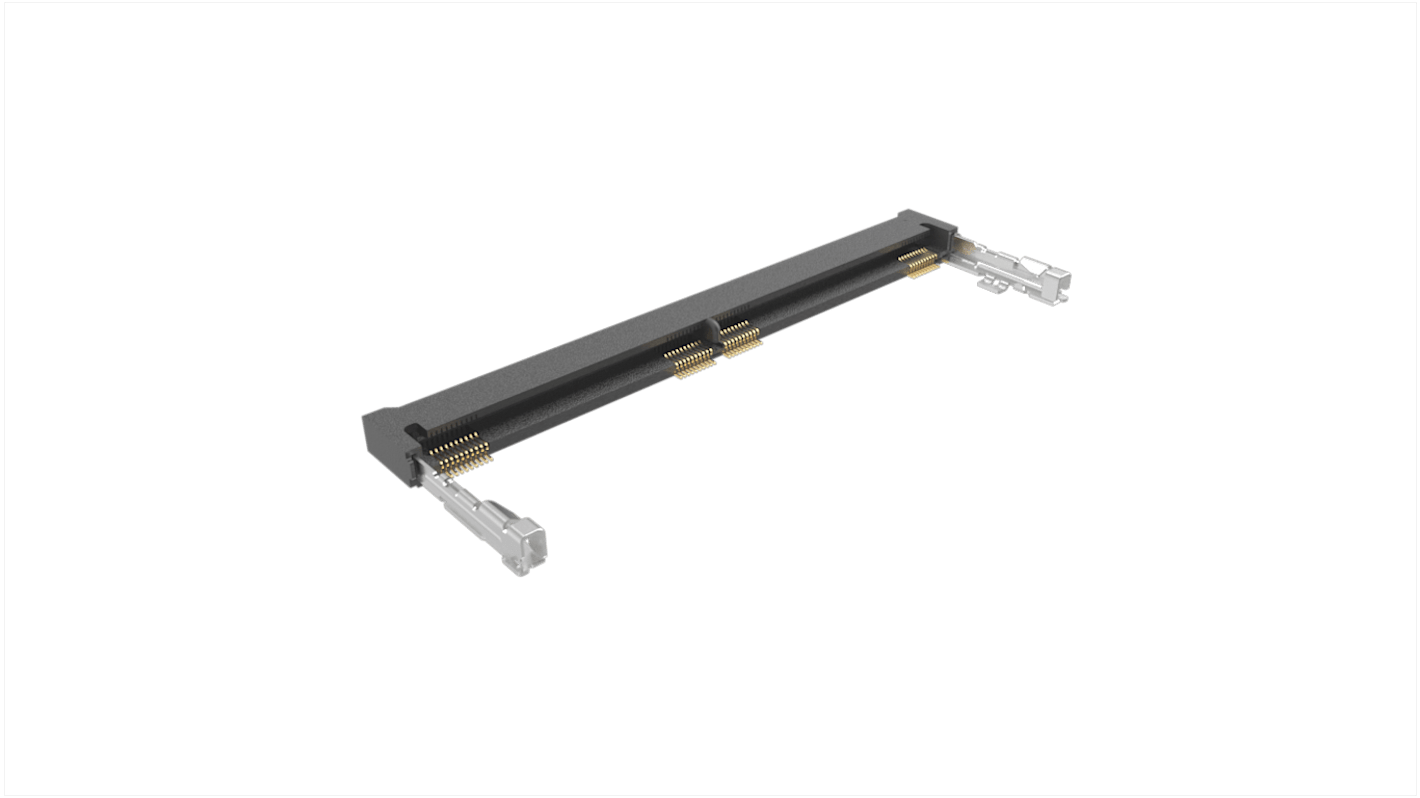

Amphenol Communications Solutions 0.5 mm Pitch 262 Way, Right Angle Surface Mount Mount DDR5 DIMM Socket ,250 V ac,
- RS 제품 번호:
- 263-3690P
- 제조사 부품 번호:
- 10161036-002RHLF
- 제조업체:
- Amphenol Communications Solutions
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal 10 units (supplied on a continuous strip)*
₩184,616.00
일시적 품절
- 2026년 6월 19일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 10 - 24 | ₩18,461.60 |
| 25 - 49 | ₩16,844.80 |
| 50 - 99 | ₩16,506.40 |
| 100 + | ₩16,168.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 263-3690P
- 제조사 부품 번호:
- 10161036-002RHLF
- 제조업체:
- Amphenol Communications Solutions
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Amphenol Communications Solutions | |
| Product Type | DIMM Socket | |
| Memory Socket Type | DIMM | |
| Orientation | Right Angle | |
| Insertion/Removal Method | Latched | |
| Current | 500mA | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Number of Contacts | 262 | |
| Pitch | 0.5mm | |
| Mount Type | Surface Mount | |
| Housing Material | Liquid Crystal Polymer | |
| SDRAM Type | DDR5 | |
| Latching | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Series | 10161036 | |
| Voltage | 250 V ac | |
| 모두 선택 | ||
|---|---|---|
브랜드 Amphenol Communications Solutions | ||
Product Type DIMM Socket | ||
Memory Socket Type DIMM | ||
Orientation Right Angle | ||
Insertion/Removal Method Latched | ||
Current 500mA | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Number of Contacts 262 | ||
Pitch 0.5mm | ||
Mount Type Surface Mount | ||
Housing Material Liquid Crystal Polymer | ||
SDRAM Type DDR5 | ||
Latching Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Series 10161036 | ||
Voltage 250 V ac | ||
- COO (Country of Origin):
- CN
The Amphenol DDR5 SO-DIMM connectors deliver high speed and bandwidth. Being half the size of regular DIMMs, it consume lower power and promote better thermal management.
Withstands high temperature IR flow
LCP, halogen free, housing material
