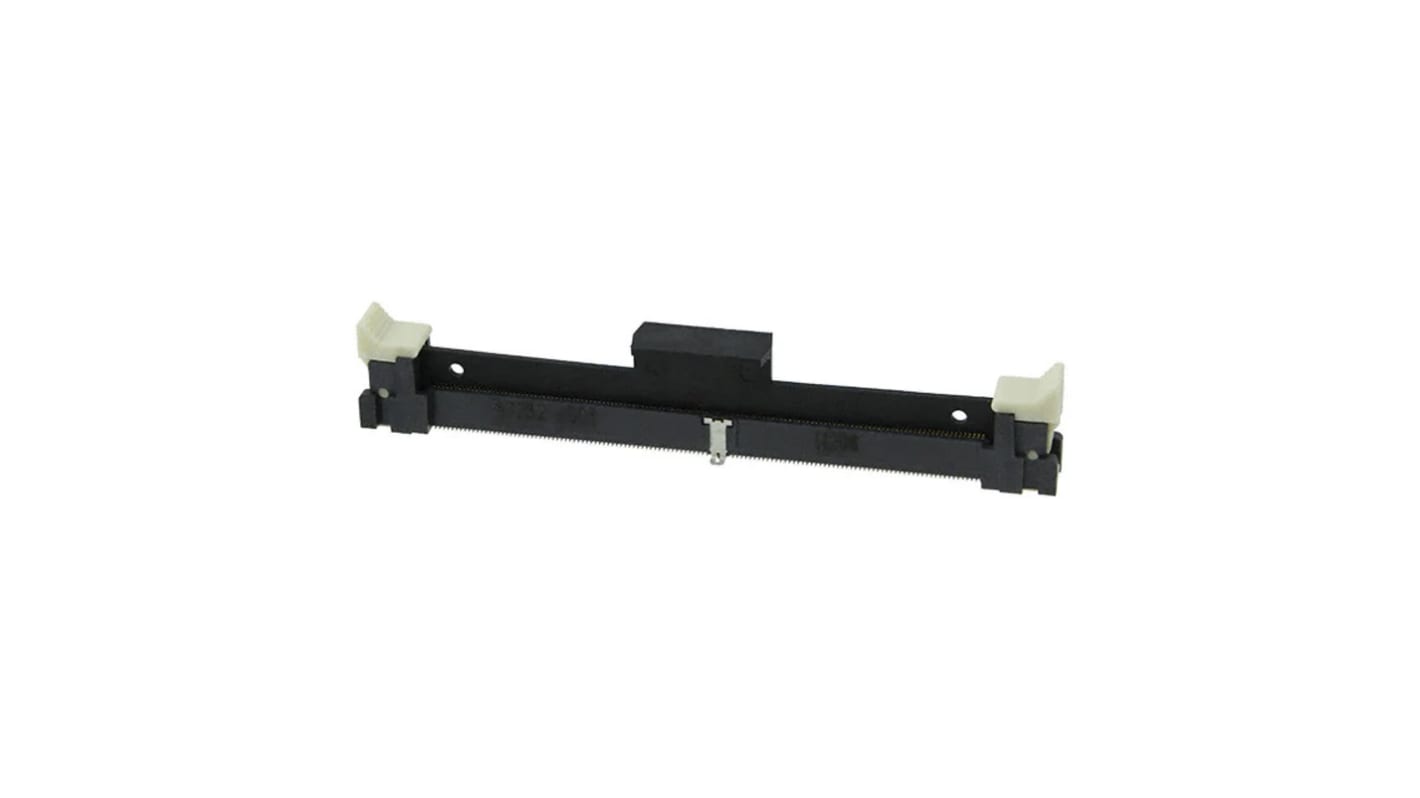

Molex 0.6 mm Pitch 244 Way, Vertical Surface, Surface Mount Mount DDR3 DIMM Socket ,30V, 1A
- RS 제품 번호:
- 213-5737
- 제조사 부품 번호:
- 877823003
- 제조업체:
- Molex
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 213-5737
- 제조사 부품 번호:
- 877823003
- 제조업체:
- Molex
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Molex | |
| Product Type | DIMM Socket | |
| Memory Socket Type | MiniDIMM | |
| Orientation | Vertical | |
| Insertion/Removal Method | Latched | |
| Contact Material | Copper Alloy | |
| Current | 1A | |
| Contact Plating | Gold, Gold | |
| Number of Contacts | 244 | |
| Pitch | 0.6mm | |
| Mount Type | Surface, Surface Mount | |
| Housing Material | High Temperature Thermoplastic | |
| SDRAM Type | DDR3 | |
| Latching | Yes | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Surface Mount | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | CSA LR19980, UL E29179 | |
| Series | 87782 | |
| Voltage | 30V | |
| 모두 선택 | ||
|---|---|---|
브랜드 Molex | ||
Product Type DIMM Socket | ||
Memory Socket Type MiniDIMM | ||
Orientation Vertical | ||
Insertion/Removal Method Latched | ||
Contact Material Copper Alloy | ||
Current 1A | ||
Contact Plating Gold, Gold | ||
Number of Contacts 244 | ||
Pitch 0.6mm | ||
Mount Type Surface, Surface Mount | ||
Housing Material High Temperature Thermoplastic | ||
SDRAM Type DDR3 | ||
Latching Yes | ||
Minimum Operating Temperature -55°C | ||
Termination Type Surface Mount | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals CSA LR19980, UL E29179 | ||
Series 87782 | ||
Voltage 30V | ||
- COO (Country of Origin):
- SG
The Molex 877823003 is a 0.60mm pitch miniDIMM DDR3 socket, has a surface mount, vertical orientation, 1.5V voltage key, has 244 circuits, 0.76μm gold (Au) plating, with off-white latches, with pick-and-place cap.
CSA certified
UL certified
