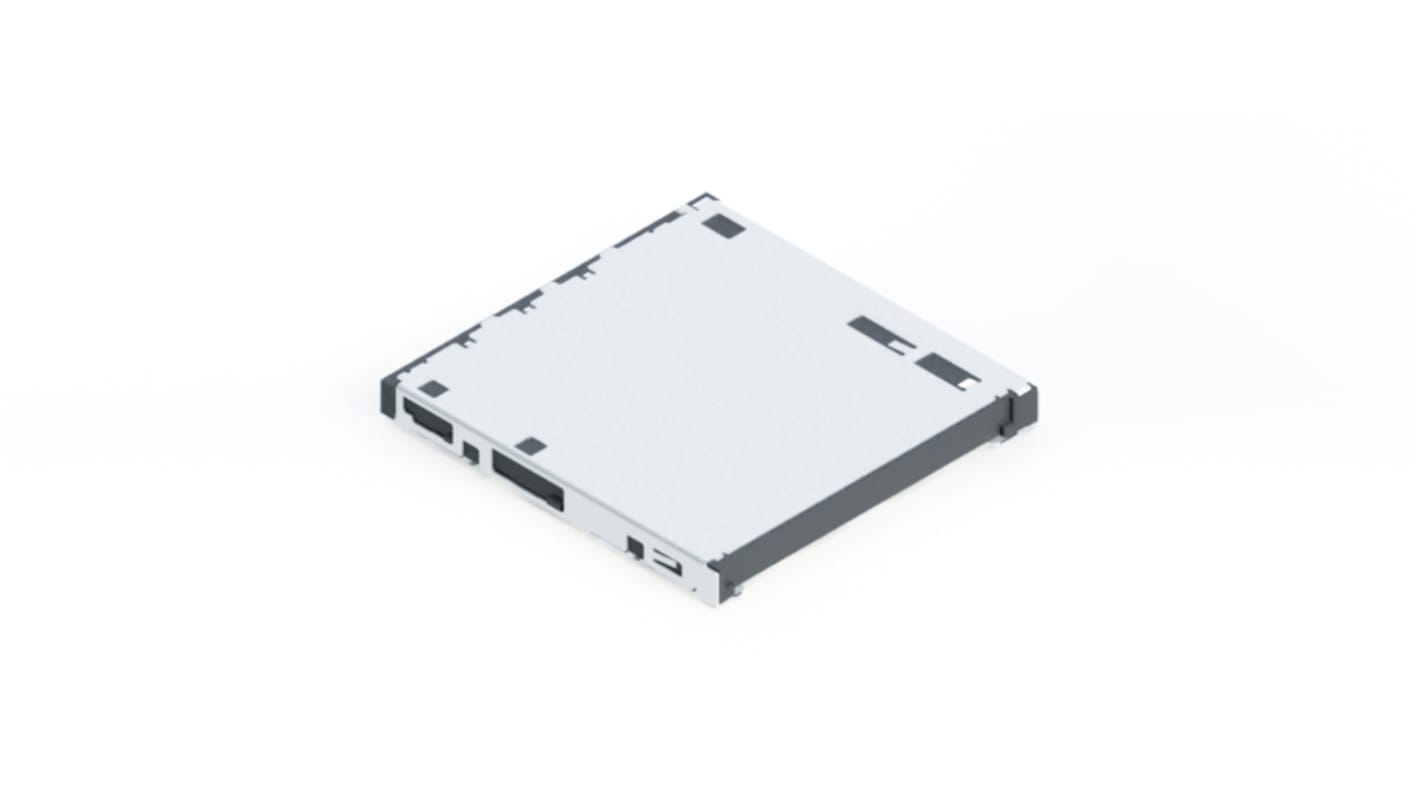

Yamaichi, FPS 9 Way Side Entry Push-Push SD SD Card Connector, Push-Push
- RS 제품 번호:
- 252-5832
- 제조사 부품 번호:
- FPS009-2903-0-VE
- 제조업체:
- Yamaichi
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
Subtotal (1 tray of 500 units)*
₩2,003,000.00
일시적 품절
- 2026년 12월 08일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Tray* |
|---|---|---|
| 500 + | ₩4,006.00 | ₩2,002,600.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 252-5832
- 제조사 부품 번호:
- FPS009-2903-0-VE
- 제조업체:
- Yamaichi
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Yamaichi | |
| Card Type | SD | |
| Product Type | SD Card Connector | |
| Insertion/Removal Method | Push-Push | |
| Gender | Female | |
| Number of Contacts | 9 | |
| Number of Rows | 1 | |
| Pitch | 1.8mm | |
| Orientation | Side Entry | |
| Mount Type | Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Nickel, Gold | |
| Termination Type | Push-Push | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Series | FPS | |
| 모두 선택 | ||
|---|---|---|
브랜드 Yamaichi | ||
Card Type SD | ||
Product Type SD Card Connector | ||
Insertion/Removal Method Push-Push | ||
Gender Female | ||
Number of Contacts 9 | ||
Number of Rows 1 | ||
Pitch 1.8mm | ||
Orientation Side Entry | ||
Mount Type Board | ||
Contact Material Copper Alloy | ||
Contact Plating Nickel, Gold | ||
Termination Type Push-Push | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Series FPS | ||
- COO (Country of Origin):
- PH
This Yamaichi product is a SD card connector with a push and push type and automotive type full shell connection. It also comes with card detection switch and is also SDIO capable. The contact area are made from Ni-Au and the solder tail is of Ni-Sn. The voltage rating is 5 V DC.
Top mount version
With card detection switch
SDIO capable
EMI prevention design
Low height with 2.80mm
RoHS compliant
