제조사부품번호

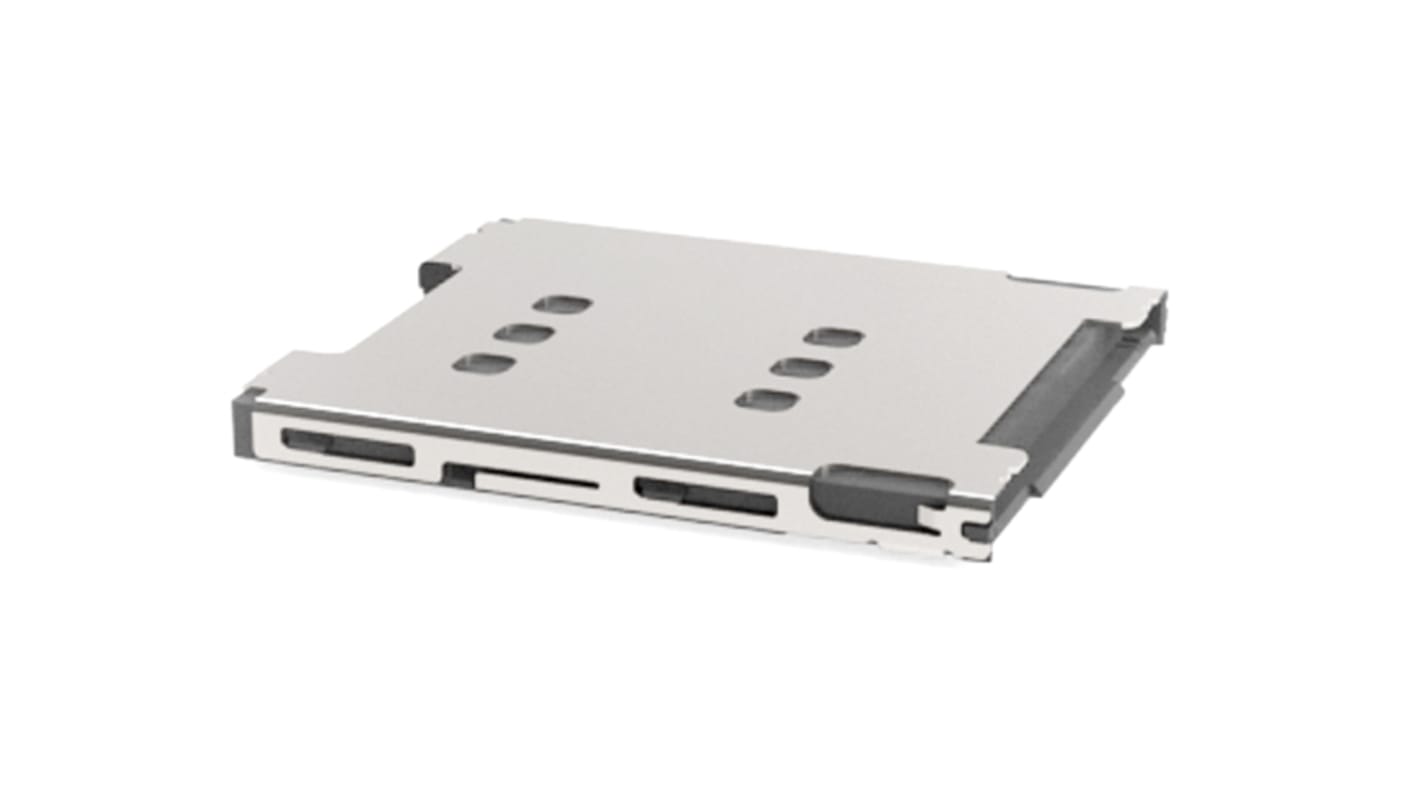

Yamaichi, F-MS 6 Way Side Entry Push-Push SIM SIM Card Connector, Solder

RS 제품 번호:: 252-5829
제조사 부품 번호:: FMS006-3710
제조업체:: Yamaichi

Yamaichi, F-MS 6 Way Side Entry Push-Push SIM SIM Card Connector, Solder

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 pack of 10 units)*

₩35,139.00

단종되는 중

최종적인 1,100 개 unit(s)이 배송 준비 됨

수량	한팩당	한팩당*
10 - 90	₩3,513.90	₩35,142.90
100 +	₩3,075.15	₩30,753.45

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 252-5829
제조사 부품 번호:: FMS006-3710
제조업체:: Yamaichi

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Yamaichi
	Product Type	SIM Card Connector
	Card Type	SIM
	Insertion/Removal Method	Push-Push
	Gender	Female
	Number of Contacts	6
	Number of Rows	1
	Pitch	1.27mm
	Orientation	Side Entry
	Mount Type	Board
	Contact Material	Copper Alloy
	Contact Plating	Gold, Nickel
	Termination Type	Solder
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	85°C
	Standards/Approvals	RoHS
	Series	F-MS

	모두 선택
	브랜드 Yamaichi
	Product Type SIM Card Connector
	Card Type SIM
	Insertion/Removal Method Push-Push
	Gender Female
	Number of Contacts 6
	Number of Rows 1
	Pitch 1.27mm
	Orientation Side Entry
	Mount Type Board
	Contact Material Copper Alloy
	Contact Plating Gold, Nickel
	Termination Type Solder
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 85°C
	Standards/Approvals RoHS
	Series F-MS

Datasheet - FMS006-3710

COO (Country of Origin):: JP

This Yamaichi product is a SIM card connector with a top mount tray type connection that comes with a switch. The contact material is copper alloy, Ni-Au. The shielding plate is stainless. It also has a voltage rating of 5V AC and current rating of 0.5 A.

Low profile 1.65mm

Removable tray

RoHS2011/65/EU

Yamaichi, F-MS 6 Way Side Entry Push-Push SIM SIM Card Connector, Solder
