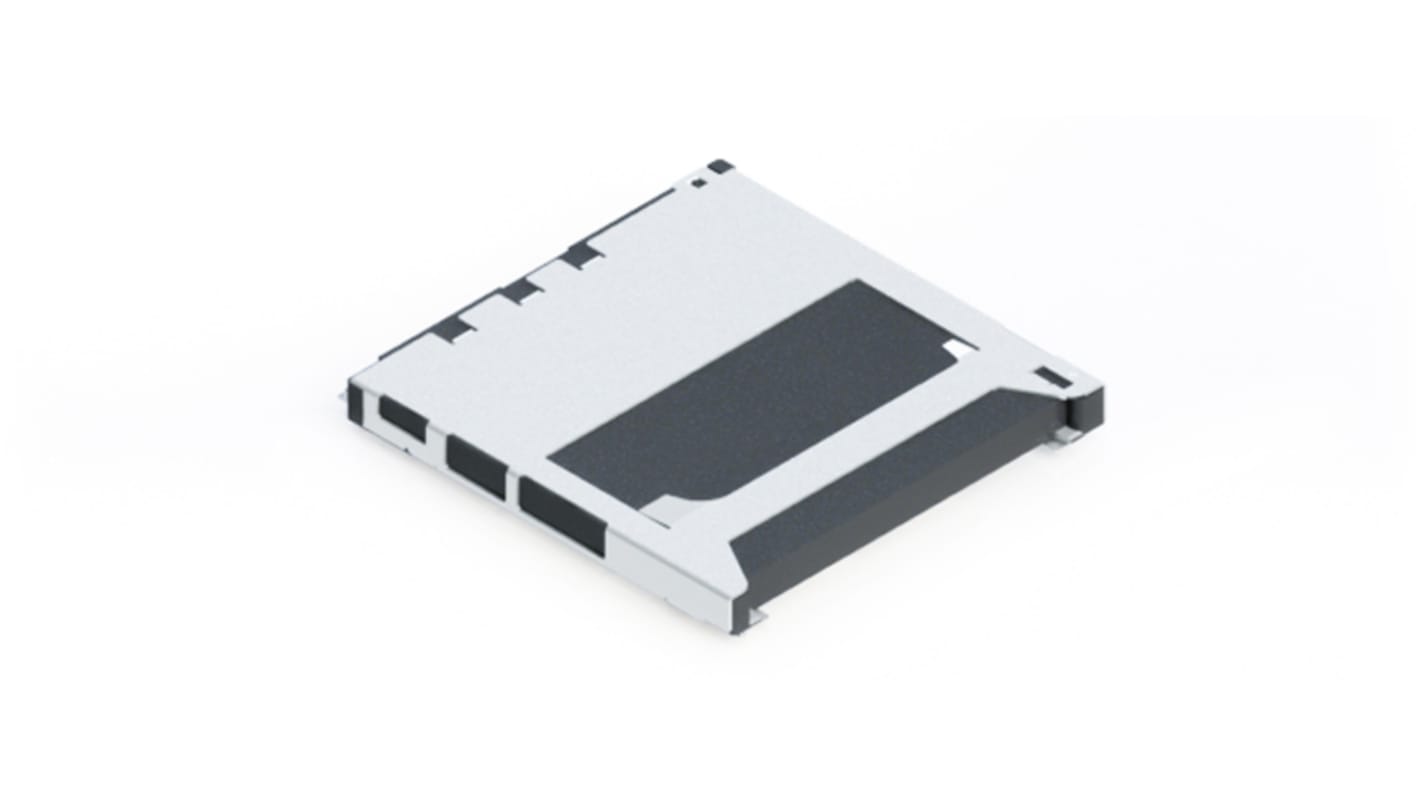

Yamaichi, FPS 9 Way Side Entry Push-Push SD SD Card Connector, Push-Push

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Memory Card Connectors 열람하기
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
RS 제품 번호:
252-5830
제조사 부품 번호:
FPS009-2409-0
제조업체:
Yamaichi
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Yamaichi

Card Type

SD

Product Type

SD Card Connector

Insertion/Removal Method

Push-Push

Gender

Female

Number of Contacts

9

Number of Rows

1

Pitch

1mm

Orientation

Side Entry

Mount Type

Board

Contact Material

Copper Alloy

Contact Plating

Nickel, Gold

Minimum Operating Temperature

-25°C

Termination Type

Push-Push

Maximum Operating Temperature

85°C

Standards/Approvals

RoHS

Series

FPS

COO (Country of Origin):
JP
This Yamaichi product is a SD card connector with push and push type and automotive type connection. The contact area are made from Ni-Au and the solder tail is of Ni-Sn. The voltage rating is 250 V AC rms.

Top mount version

Two point contact design

With write protection

Low height with 2.80mm

RoHS compliant
