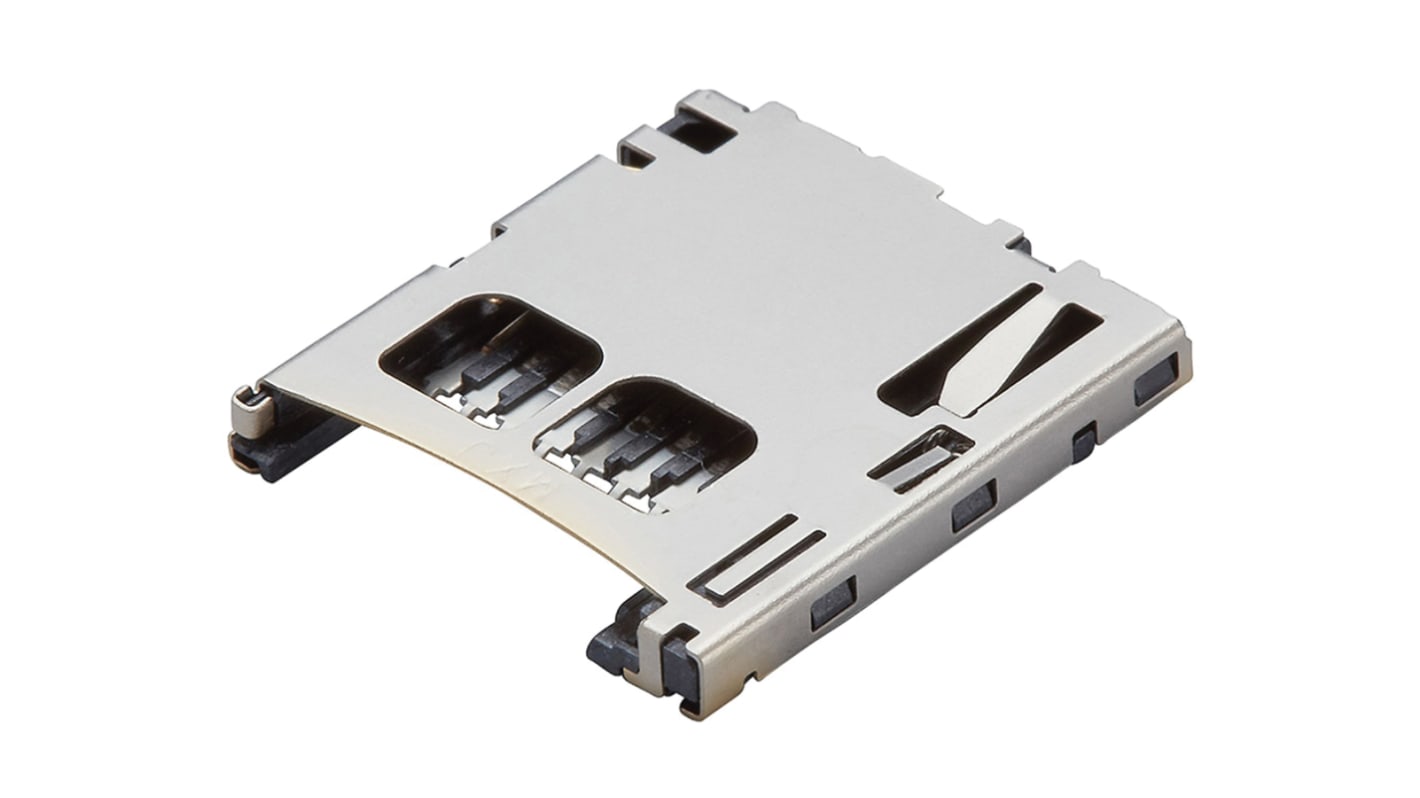

Molex, 502579 8 Way Right Angle Push-Push MicroSD Memory Card Connector, Surface Mount

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Memory Card Connectors 열람하기
대량 구매 할인 기용 가능
View bulk pricing options

Subtotal (1 reel of 1300 units)*

₩5,012,800.00

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2027년 1월 19일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
릴당*
1300 - 5200₩3,856.00₩5,014,100.00
6500 +₩3,472.00₩4,512,560.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
188-8740
제조사 부품 번호:
502570-0893
제조업체:
Molex
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Molex

Product Type

Memory Card Connector

Card Type

MicroSD

Insertion/Removal Method

Push-Push

Gender

Female

Number of Contacts

8

Number of Rows

1

Pitch

1.1mm

Orientation

Right Angle

Mount Type

Surface

Contact Material

Copper Alloy

Contact Plating

Gold over Nickel

Housing Material

Stainless Steel

Minimum Operating Temperature

-20°C

Termination Type

Surface Mount

Maximum Operating Temperature

85°C

Standards/Approvals

No

Series

502579

COO (Country of Origin):
CN

Molex Memory Card Connector, Micro SD Card Type, 1 Port - 502579 Series - 502570-0893


Use this Molex memory card connector to transfer data between your micro SD card and your digital device. As it operates using a simple push-push method, you can easily insert or eject a card by pressing it in the direction of the socket. The unit has PCB retention features to ensure a secure connection for reliable communication.

Features & Benefits


• Polarisation to help prevent incorrect insertion of the card

• Durability of up to 10,000 mating cycles for long-lasting performance

• Light weight of 472.801mg to minimise strain on your system

Applications


• Portable audio players

• Digital cameras

• Personal navigators

Can I use this memory card connector in demanding conditions?


Yes. This connector has a wide operating temperature range between -25°C and +85°C, so it's suitable for use in demanding applications where extreme heat and cold are likely.
