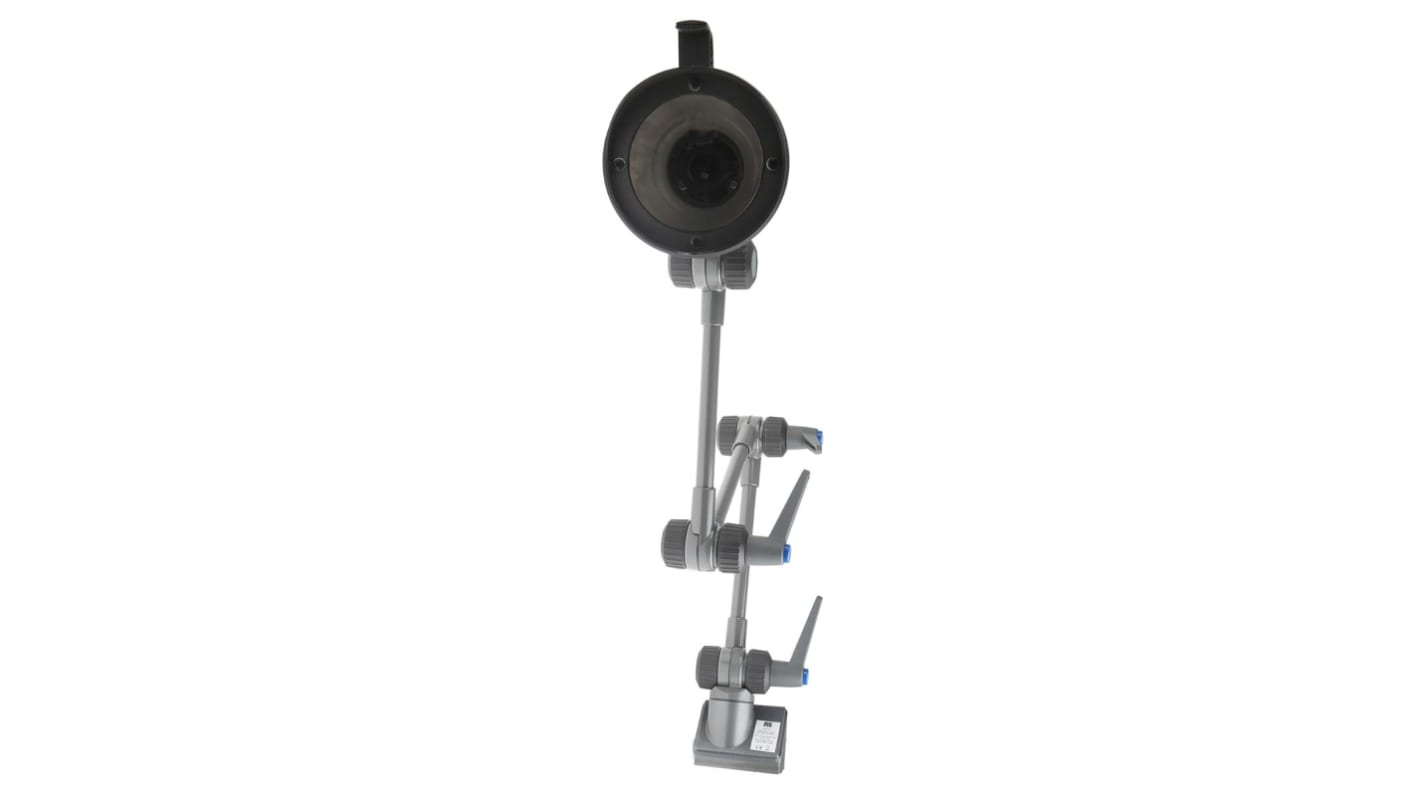

RS PRO LED Machine Light, 230 V ac, IP64, 750mm Arm Length
- RS 제품 번호:
- 743-937
- 제조업체:
- RS PRO
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
대체품
이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.
- RS 제품 번호:
- 743-937
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Lamp Type | LED | |
| Light Style | Articulated Arm | |
| Voltage Rating | 230 V | |
| Wattage | 60 W | |
| Arm Length | 750mm | |
| Arm Type | Articulated | |
| IP Rating | IP64 | |
| Maximum Reach | 750mm | |
| Integral transformer | No | |
| Cable Length | 0 | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Lamp Type LED | ||
Light Style Articulated Arm | ||
Voltage Rating 230 V | ||
Wattage 60 W | ||
Arm Length 750mm | ||
Arm Type Articulated | ||
IP Rating IP64 | ||
Maximum Reach 750mm | ||
Integral transformer No | ||
Cable Length 0 | ||
해당 안됨
- COO (Country of Origin):
- GB
RS Pro Adjustable Arm Long, Machine/Bench Task Light, ES Cap
From RS Pro, this bench task light is the ideal lighting system for those engaging in high concentration, high detail work. With an adjustable base, and an arm with four points of articulation, the operator can ensure there is bright, clear light source where it is needed. This has the advantage of ensuring shadow free work and reducing eye strain.
With friction free joints, the arm adjusts easily and retains its position, and has a handle on the head to facilitate easier positioning. It also has resistance to vibration, which means it is suitable for work around heavy machinery.
The machine and inspection lamp also features a shock resistant thermoplastic head, and the metal parts are protected with a coating of chip-resistant epoxy.
A built in anti-glare visor further adds to the lamps versatility.
This adjustable task light is designed to accommodate LED lamps (sold separately.)
Features and Benefits
• Tested for 30,000 movements.
• 3 steel articulated arms with vibration proof, friction knuckle
• Meets BS4533 Pt 101 and EN60598
• Joint friction adjustment if required with easy action levers
• Anti-glare visor
• Vertical or horizontal mounting base with 20mm diameter conduit entry holes
• Maximum lamp size ES 60W
Applications
With an ingress protection of IP64, this machine light is suitable for some harsh industrial conditions, and has an excellent resistance to particle ingress. It is designed for general purpose illumination and can be found alongside machine stations and work benches alike. Typical applications include;
• Prototyping
• Inspection
• Repair and Maintenance
• Machine lighting
Installation
This machine and inspection light is supplied without lamps, trailing cable or plug, which must be ordered separately. It features a universal mount with an electrical connection terminal block that allows it to be mounted on horizontal or vertical surfaces, for maximum functionality.
With friction free joints, the arm adjusts easily and retains its position, and has a handle on the head to facilitate easier positioning. It also has resistance to vibration, which means it is suitable for work around heavy machinery.
The machine and inspection lamp also features a shock resistant thermoplastic head, and the metal parts are protected with a coating of chip-resistant epoxy.
A built in anti-glare visor further adds to the lamps versatility.
This adjustable task light is designed to accommodate LED lamps (sold separately.)
Features and Benefits
• Tested for 30,000 movements.
• 3 steel articulated arms with vibration proof, friction knuckle
• Meets BS4533 Pt 101 and EN60598
• Joint friction adjustment if required with easy action levers
• Anti-glare visor
• Vertical or horizontal mounting base with 20mm diameter conduit entry holes
• Maximum lamp size ES 60W
Applications
With an ingress protection of IP64, this machine light is suitable for some harsh industrial conditions, and has an excellent resistance to particle ingress. It is designed for general purpose illumination and can be found alongside machine stations and work benches alike. Typical applications include;
• Prototyping
• Inspection
• Repair and Maintenance
• Machine lighting
Installation
This machine and inspection light is supplied without lamps, trailing cable or plug, which must be ordered separately. It features a universal mount with an electrical connection terminal block that allows it to be mounted on horizontal or vertical surfaces, for maximum functionality.
Why RS Pro?
RS Pro strives to provide you with the choice and reliability you need in your workplace purchases. Whether you’re a hobbyist or fitting out a factory, RS Pro can furnish you with lighting solutions to suit your requirements.
Providing high-quality hardware tested by our in house experts, RS Pro offers you an assurance of quality at competitive prices.
For workplace lighting in almost any industry, RS Pro has the solution you need.
Note
The task light is supplied without lamp, cable or plug. See accessory links for available products.
