Kewtech Corporation FC2000 Loop Impedance & RCD Combined Tester, Loop Impedance Test Type 2 Wire 1000V, RCD Test Type
- RS 제품 번호:
- 821-2084
- 제조사 부품 번호:
- FC2000
- 제조업체:
- Kewtech Corporation
Subtotal (1 unit)*
₩375,906.00
재고있음
- 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩375,906.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 821-2084
- 제조사 부품 번호:
- FC2000
- 제조업체:
- Kewtech Corporation
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Kewtech Corporation | |
| Test Equipment Type | Combined Loop & RCD Tester | |
| Loop Impedance Test Type | 2 Wire | |
| Maximum Voltage Measurement | 1000V | |
| RCD Test Type | AC Selective | |
| Best Loop Test Accuracy | 1% | |
| RCD Test Current | 163mA | |
| Power Source | Mains | |
| Model Number p | FC2000 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Kewtech Corporation | ||
Test Equipment Type Combined Loop & RCD Tester | ||
Loop Impedance Test Type 2 Wire | ||
Maximum Voltage Measurement 1000V | ||
RCD Test Type AC Selective | ||
Best Loop Test Accuracy 1% | ||
RCD Test Current 163mA | ||
Power Source Mains | ||
Model Number p FC2000 | ||
- COO (Country of Origin):
- CN

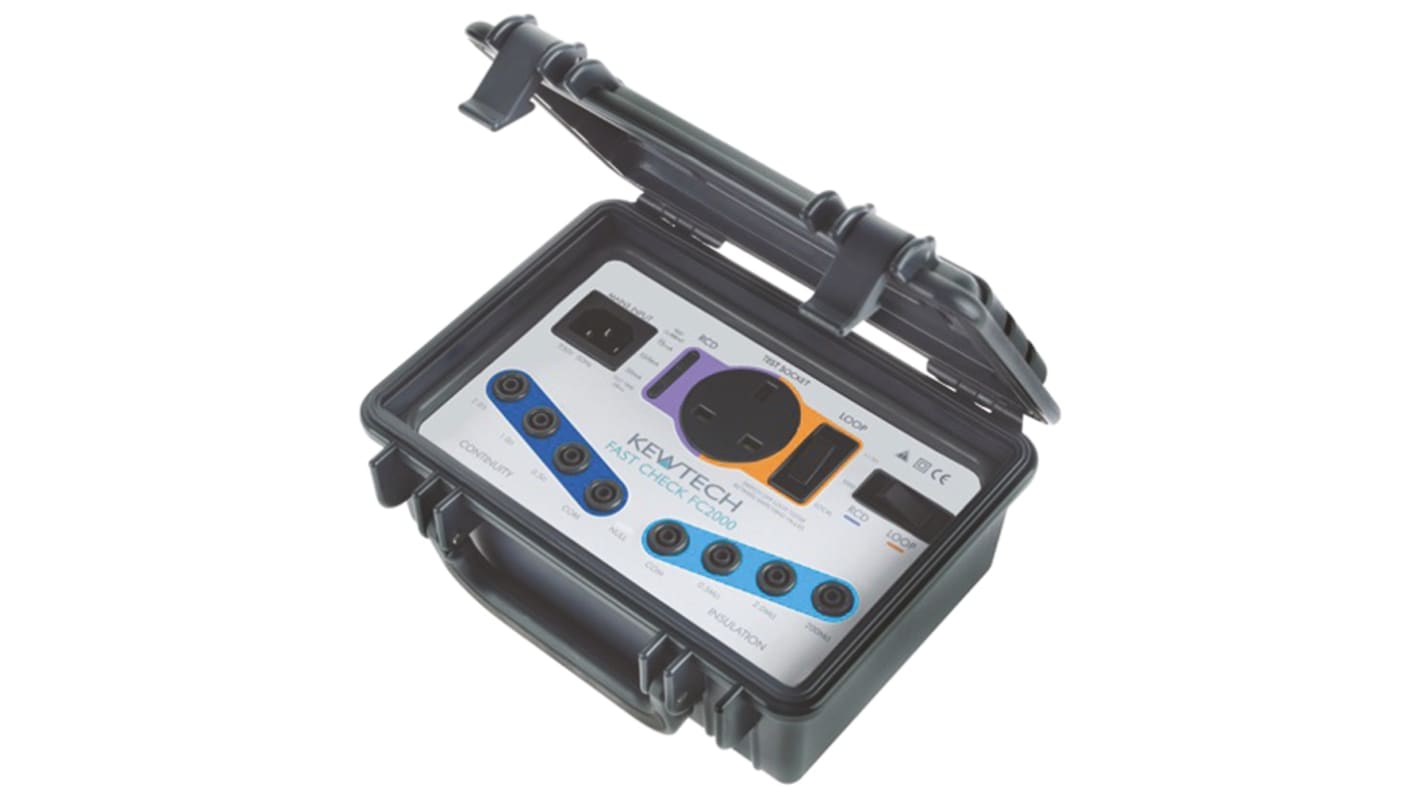

Kewtech FC2000 Calibration Check Box
The FC2000 Calibration Checkbox allows electricians to check their own 17th Edition test equipment and ensure that all meters are operating correctly and accurately. The Kewtech FC2000 Check Box doesn't replace the calibration requirements of testers but provides a quick and simple way to check instrument accuracy, reducing the risk of incorrect certification.
Checks that 17th edition testers are maintaining their calibration
Test lead nulling point
Three continuity test points
Three Insulation test points
Two loop impedance test points plus the local loop
1/2, x 1, x 5 30mA current and time test settings
Test lead nulling point
Three continuity test points
Three Insulation test points
Two loop impedance test points plus the local loop
1/2, x 1, x 5 30mA current and time test settings
Supplied with
Mains lead, instruction manual.
