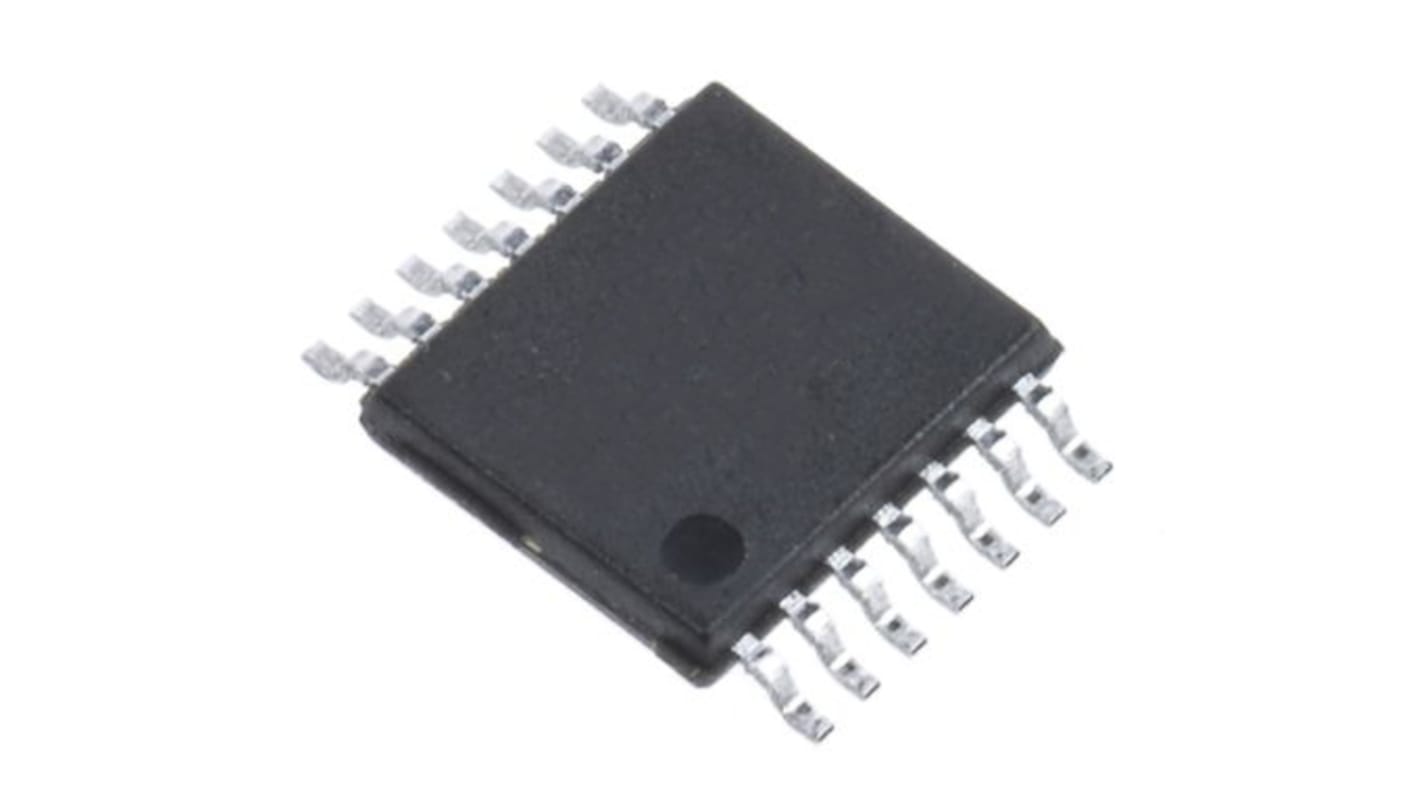

onsemi, 4 2-Input AND Logic Gate, 14-Pin TSSOP

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Logic Gates 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
포장 옵션
RS 제품 번호:
186-8373P
제조사 부품 번호:
MC74LCX08DTG
제조업체:
onsemi
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

onsemi

Logic Function

AND

Product Type

Logic Gate

Mount Type

Surface

Number of Elements

4

Number of Inputs per Gate

2

Schmitt Trigger Input

No

Package Type

TSSOP

Pin Count

14

Logic Family

LCX

Input Type

TTL

Maximum Propagation Delay Time @ CL

5.5ns

Maximum High Level Output Current

-24mA

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Minimum Supply Voltage

2.3V

Height

1.05mm

Length

5.1mm

Maximum Supply Voltage

3.6V

Standards/Approvals

No

Maximum Low Level Output Current

24mA

Output Type

TTL

Automotive Standard

AEC-Q101

The MC74LCX08 is a high performance, quad 2-input AND gate operating from a 2.7 to 3.6V supply. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTLcompatible outputs offer improved switching noise performance. AVI specification of 5.5V allows MC74LCX08 inputs to be safely driven from 5V devices. Current drive capability is 24mA at the outputs.

Designed for 2.7 to 3.6V VCC Operation

5V Tolerant Inputs - Interface Capability With 5V TTL Logic

LVTTL Compatible

24mA Balanced Output Sink and Source Capability

Near Zero Static Supply Current (10mA) Substantially Reduces System Power Requirements

Latchup Performance Exceeds 500mA

ESD Performance: Human Body Model >2000V, Machine Model >200V
