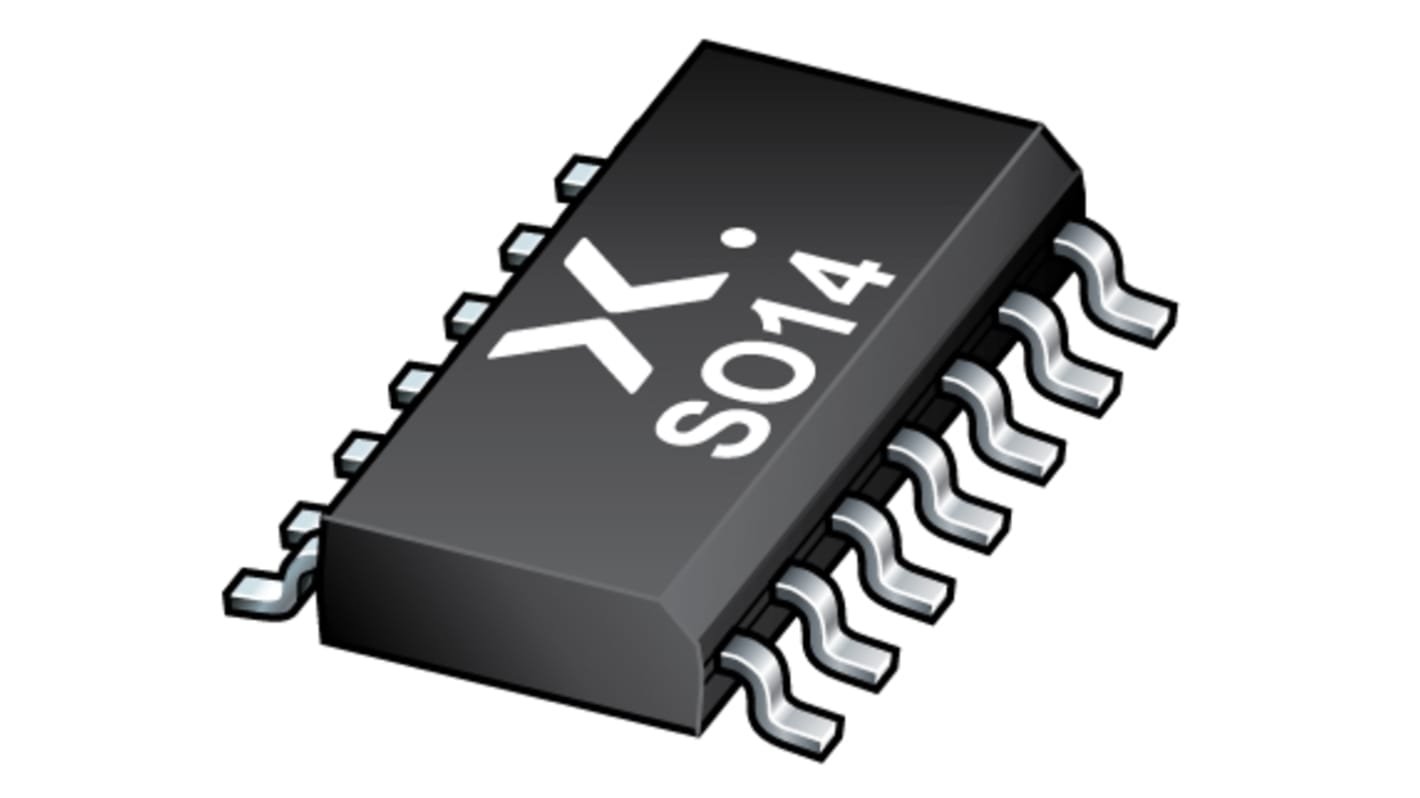

Nexperia 74LVC00AD,112, 4 2-Input NAND, NAND Schmitt Trigger Input Logic Gate, 14-Pin SO

모든 Logic Gates 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
170-8069
제조사 부품 번호:
74LVC00AD,112
제조업체:
Nexperia
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Nexperia

Logic Function

NAND, NAND

Product Type

Logic Gate

Mount Type

Surface, Surface Mount

Number of Elements

4

Number of Inputs per Gate

2

Schmitt Trigger Input

Yes

Package Type

SO

Pin Count

14

Logic Family

74LVC

Input Type

Schmitt Trigger, Schmitt Trigger

Minimum Operating Temperature

-40°C

Maximum High Level Output Current

-24mA

Maximum Operating Temperature

125°C

Width

4 mm

Length

8.75mm

Minimum Supply Voltage

1.2V

Standards/Approvals

JEDEC: JESD8-7A, JESD8-5A, JESD8-C/JESD36

Series

74LVC

Height

1.45mm

Maximum Supply Voltage

3.6V

Maximum Low Level Output Current

24mA

Automotive Standard

No

Output Type

Single Ended, Single Ended

The 74LVC00A provides four 2-input NAND gates. Schmitt trigger action at all inputs makes the circuit tolerant of slower input rise and fall times. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V applications.

Key features and benefits

Mixed 5 V and 3.3 V applications

Reduce time to market for complex designs

Save board space

Open-drain output options

Improved signal integrity for complex layouts

Wide supply voltage range

Low propagation delay

Overvoltage tolerant options

Low input threshold options

CMOS low power
