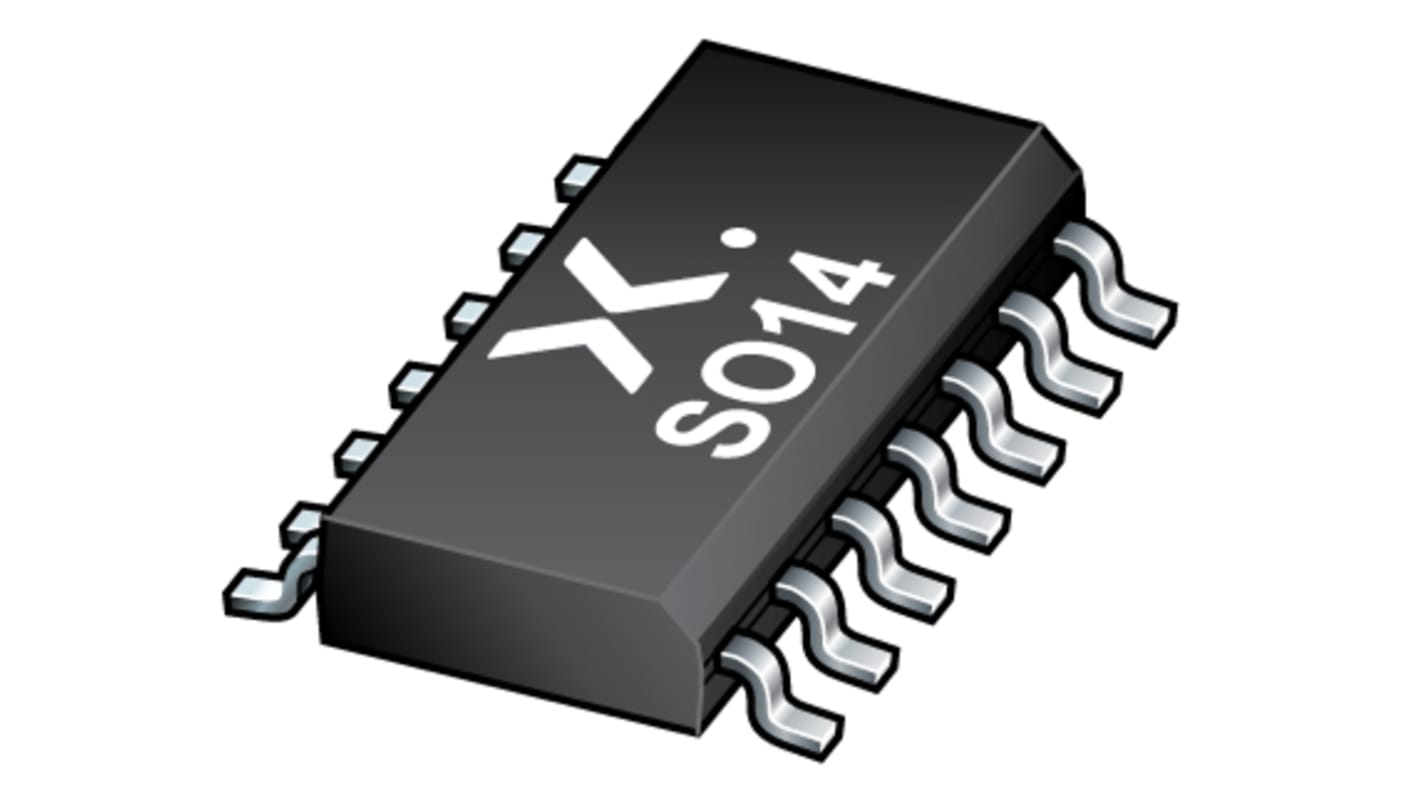

Nexperia HEF4093BT,653, 4 2-Input NAND Schmitt Trigger Input Logic Gate, 14-Pin SO
- RS 제품 번호:
- 170-7964
- 제조사 부품 번호:
- HEF4093BT,653
- 제조업체:
- Nexperia
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 reel of 2500 units)*
₩650,000.00
일시적 품절
- 2027년 2월 22일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 릴당* |
|---|---|---|
| 2500 - 2500 | ₩260.00 | ₩652,500.00 |
| 5000 - 10000 | ₩256.00 | ₩639,500.00 |
| 12500 - 22500 | ₩250.00 | ₩626,500.00 |
| 25000 + | ₩244.00 | ₩608,000.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
대체품
이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.
개당가격(2500개가 1릴안에)
₩946,000.00
- RS 제품 번호:
- 170-7964
- 제조사 부품 번호:
- HEF4093BT,653
- 제조업체:
- Nexperia
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Nexperia | |
| Product Type | Logic Gate | |
| Logic Function | NAND | |
| Mount Type | Surface | |
| Number of Elements | 4 | |
| Number of Inputs per Gate | 2 | |
| Schmitt Trigger Input | Yes | |
| Package Type | SO | |
| Pin Count | 14 | |
| Logic Family | HEF | |
| Input Type | Schmitt Trigger | |
| Maximum High Level Output Current | -4.2mA | |
| Maximum Propagation Delay Time @ CL | 60ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Minimum Supply Voltage | 3V | |
| Series | HEF4011B | |
| Height | 1.45mm | |
| Length | 8.7mm | |
| Maximum Supply Voltage | 15V | |
| Maximum Low Level Output Current | 4.2mA | |
| Output Type | Single Ended | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Nexperia | ||
Product Type Logic Gate | ||
Logic Function NAND | ||
Mount Type Surface | ||
Number of Elements 4 | ||
Number of Inputs per Gate 2 | ||
Schmitt Trigger Input Yes | ||
Package Type SO | ||
Pin Count 14 | ||
Logic Family HEF | ||
Input Type Schmitt Trigger | ||
Maximum High Level Output Current -4.2mA | ||
Maximum Propagation Delay Time @ CL 60ns | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Minimum Supply Voltage 3V | ||
Series HEF4011B | ||
Height 1.45mm | ||
Length 8.7mm | ||
Maximum Supply Voltage 15V | ||
Maximum Low Level Output Current 4.2mA | ||
Output Type Single Ended | ||
Automotive Standard No | ||
The HEF4093B is a quad two-input NAND gate. Each input has a Schmitt trigger circuit. The gate switches at different points for positive-going and negative-going signals. The difference between the positive voltage (VT+) and the negative voltage (VT-) is defined as hysteresis voltage (VH). It operates over a recommended VDD power supply range of 3 V to 15 V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.
