Nexperia HEF4093BT,652, 4 2-Input NAND Schmitt Trigger Input Logic Gate, 14-Pin SOIC

RS 제품 번호:: 124-2313
제조사 부품 번호:: HEF4093BT,652
제조업체:: Nexperia

Nexperia HEF4093BT,652, 4 2-Input NAND Schmitt Trigger Input Logic Gate, 14-Pin SOIC

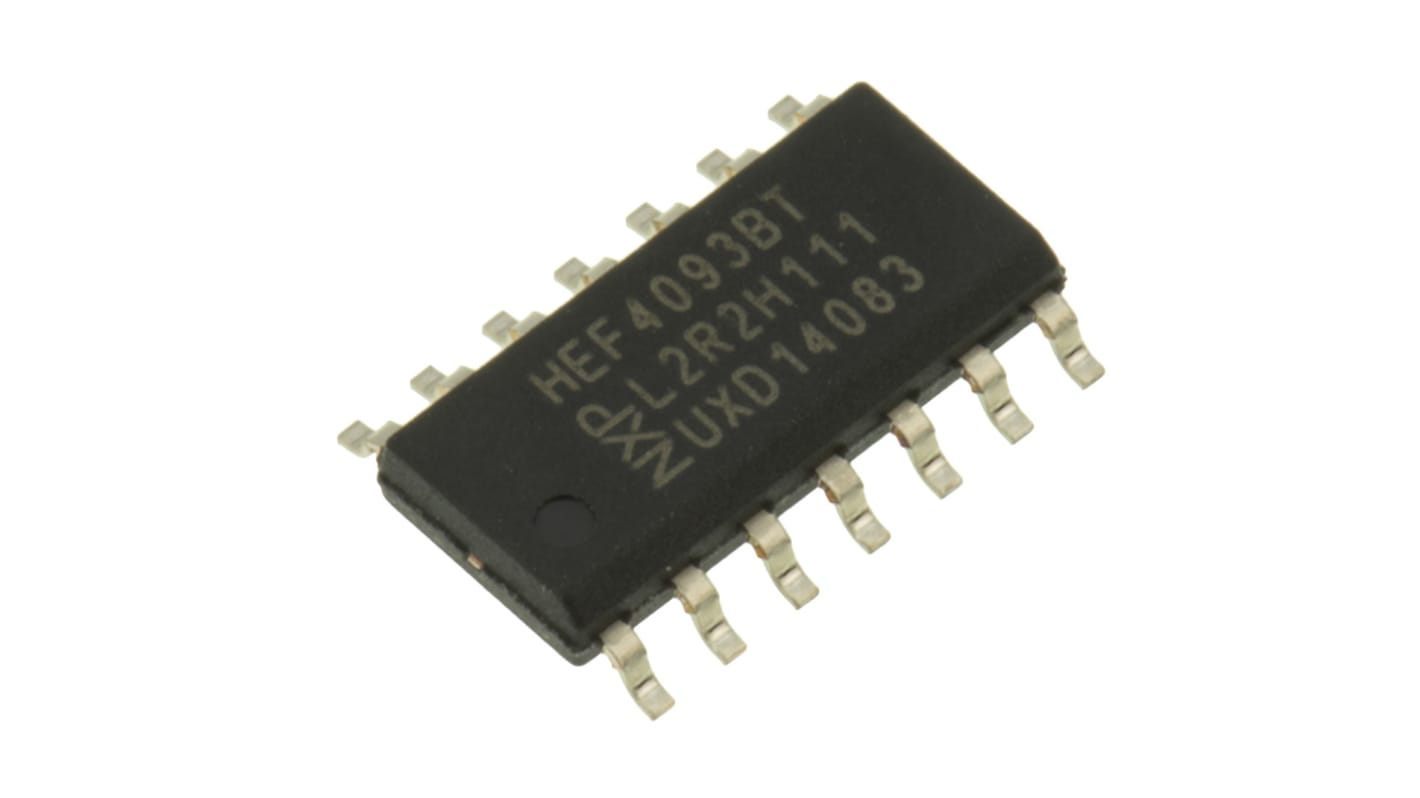

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 tube of 57 units)*

₩17,145.60

단종되는 중

2,679 개 단위 배송 준비 완료
2026년 2월 16일 부터 최종 9,633 개 단위 배송

수량	한팩당	Per Tube*
57 - 57	₩300.80	₩17,166.28
114 - 228	₩293.28	₩16,728.24
285 - 513	₩285.76	₩16,320.28
570 - 1083	₩280.12	₩15,923.60
1140 +	₩272.60	₩15,506.24

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 124-2313
제조사 부품 번호:: HEF4093BT,652
제조업체:: Nexperia

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Nexperia
	Product Type	Logic Gate
	Logic Function	NAND
	Mount Type	Surface
	Number of Elements	4
	Number of Inputs per Gate	2
	Schmitt Trigger Input	Yes
	Package Type	SOIC
	Pin Count	14
	Logic Family	4000
	Input Type	Schmitt Trigger
	Maximum Propagation Delay Time @ CL	185ns
	Minimum Operating Temperature	-40°C
	Maximum High Level Output Current	-4.2mA
	Maximum Operating Temperature	125°C
	Length	8.75mm
	Maximum Supply Voltage	15V
	Series	HEF4093B
	Width	4 mm
	Standards/Approvals	JEDEC JESD 13-B
	Minimum Supply Voltage	3V
	Height	1.45mm
	Maximum Low Level Output Current	4.2mA
	Automotive Standard	No

	모두 선택
	브랜드 Nexperia
	Product Type Logic Gate
	Logic Function NAND
	Mount Type Surface
	Number of Elements 4
	Number of Inputs per Gate 2
	Schmitt Trigger Input Yes
	Package Type SOIC
	Pin Count 14
	Logic Family 4000
	Input Type Schmitt Trigger
	Maximum Propagation Delay Time @ CL 185ns
	Minimum Operating Temperature -40°C
	Maximum High Level Output Current -4.2mA
	Maximum Operating Temperature 125°C
	Length 8.75mm
	Maximum Supply Voltage 15V
	Series HEF4093B
	Width 4 mm
	Standards/Approvals JEDEC JESD 13-B
	Minimum Supply Voltage 3V
	Height 1.45mm
	Maximum Low Level Output Current 4.2mA
	Automotive Standard No

COO (Country of Origin):: TH

The HEF4093B is a quad two-input NAND gate. Each input has a Schmitt trigger circuit. The gate switches at different points for positive-going and negative-going signals. The difference between the positive voltage (VT+) and the negative voltage (VT-) is defined as hysteresis voltage (VH). It operates over a recommended VDD power supply range of 3 V to 15 V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.

Key features and benefits

Mixed 5 V and 3.3 V applications

Reduce time to market for complex designs

Save board space

Open-drain output options

Improved signal integrity for complex layouts

Wide supply voltage range

Low propagation delay

Overvoltage tolerant options

Low input threshold options

CMOS low power

Nexperia HEF4093BT,652, 4 2-Input NAND Schmitt Trigger Input Logic Gate, 14-Pin SOIC
