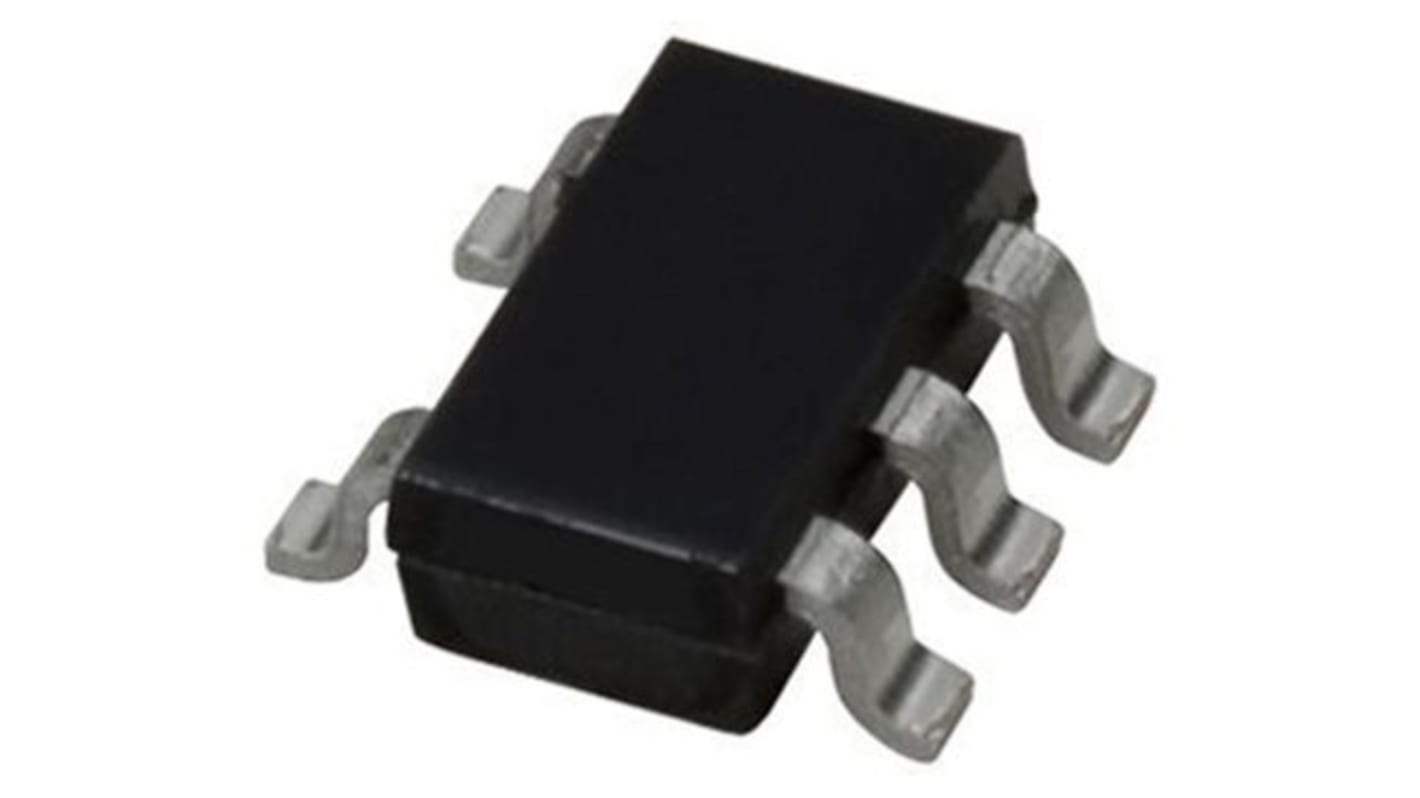

Texas Instruments SN74LVC1G08DCKR 2-Input AND Logic Gate, 5-Pin SC-70

RS 제품 번호:: 121-9324
제조사 부품 번호:: SN74LVC1G08DCKR
제조업체:: Texas Instruments

Texas Instruments SN74LVC1G08DCKR 2-Input AND Logic Gate, 5-Pin SC-70

대량 구매 할인 기용 가능

Subtotal (1 reel of 3000 units)*

₩203,040.00

일시적 품절

2025년 12월 29일 부터 273,000 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	릴당*
3000 - 12000	₩67.68	₩203,040.00
15000 +	₩65.80	₩196,836.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 121-9324
제조사 부품 번호:: SN74LVC1G08DCKR
제조업체:: Texas Instruments

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Texas Instruments
	Logic Function	AND
	Mounting Type	Surface Mount
	Number of Elements	1
	Number of Inputs per Gate	2
	Package Type	SC-70
	Pin Count	5
	Logic Family	LVC
	Maximum Operating Supply Voltage	5.5 V
	Maximum High Level Output Current	-32mA
	Maximum Propagation Delay Time @ Maximum CL	5 ns @ 5 V
	Minimum Operating Supply Voltage	1.65 V
	Maximum Low Level Output Current	32mA
	Maximum Operating Temperature	+125 °C
	Propagation Delay Test Condition	50pF
	Length	2.15mm
	Width	1.4mm
	Height	1mm
	Minimum Operating Temperature	-40 °C
	Dimensions	2.15 x 1.4 x 1mm
	Output Type	CMOS

	모두 선택
	브랜드 Texas Instruments
	Logic Function AND
	Mounting Type Surface Mount
	Number of Elements 1
	Number of Inputs per Gate 2
	Package Type SC-70
	Pin Count 5
	Logic Family LVC
	Maximum Operating Supply Voltage 5.5 V
	Maximum High Level Output Current -32mA
	Maximum Propagation Delay Time @ Maximum CL 5 ns @ 5 V
	Minimum Operating Supply Voltage 1.65 V
	Maximum Low Level Output Current 32mA
	Maximum Operating Temperature +125 °C
	Propagation Delay Test Condition 50pF
	Length 2.15mm
	Width 1.4mm
	Height 1mm
	Minimum Operating Temperature -40 °C
	Dimensions 2.15 x 1.4 x 1mm
	Output Type CMOS

ESD Control Selection Guide V1

74LVC Family Logic Gates, Texas Instruments

Texas Instruments range of standard Logic Gates from the 74LVC Family of Low-voltage CMOS Logic ICs. The 74LVC Family use silicon gate CMOS technology and is designed to operate at 3.3V, allowing a significant reduction in power consumption when compared to 5V systems.

Operating voltage range: 1.65 to 3.6V
5V tolerant inputs
Compatibility: Input LVTTL/TTL, Output LVCMOS
Latch-up performance exceeds 250 mA per JESD 17
ESD protection exceeds JESD 22

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

74LVC Family

Texas Instruments SN74LVC1G08DCKR 2-Input AND Logic Gate, 5-Pin SC-70

74LVC Family Logic Gates, Texas Instruments

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
