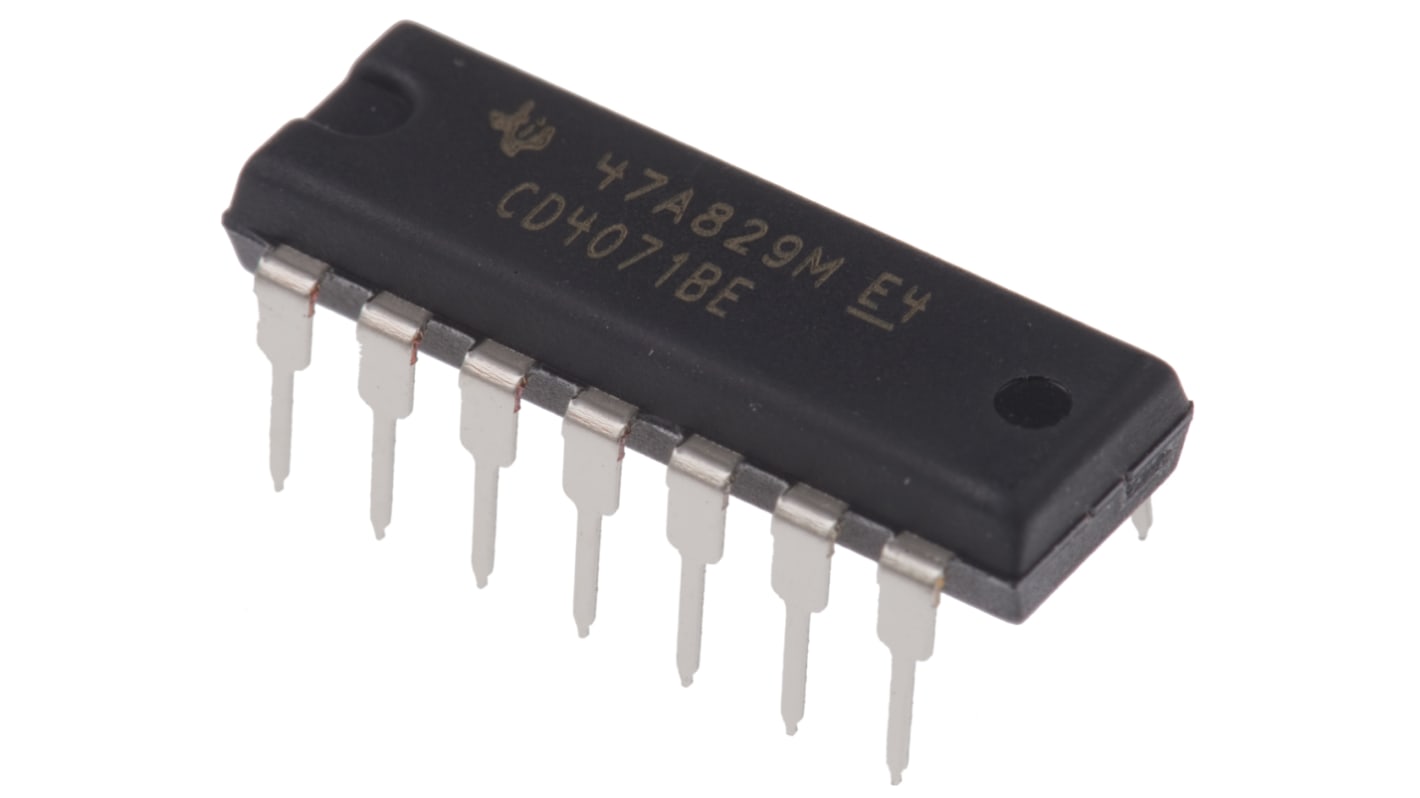

Texas Instruments CD4071BE, 4 2-Input OR Logic Gate, 14-Pin PDIP
- RS 제품 번호:
- 527-079
- 제조사 부품 번호:
- CD4071BE
- 제조업체:
- Texas Instruments
대량 구매 할인 기용 가능
Subtotal (1 tube of 25 units)*
₩18,377.00
재고있음
- 추가로 2026년 1월 19일 부터 825 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Tube* |
|---|---|---|
| 25 - 100 | ₩735.08 | ₩18,367.60 |
| 125 - 225 | ₩705.00 | ₩17,634.40 |
| 250 - 475 | ₩684.32 | ₩17,108.00 |
| 500 - 2475 | ₩671.16 | ₩16,769.60 |
| 2500 + | ₩658.00 | ₩16,431.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 527-079
- 제조사 부품 번호:
- CD4071BE
- 제조업체:
- Texas Instruments
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Texas Instruments | |
| Product Type | Logic Gate | |
| Logic Function | OR | |
| Mount Type | Through Hole | |
| Number of Elements | 4 | |
| Number of Inputs per Gate | 2 | |
| Schmitt Trigger Input | No | |
| Package Type | PDIP | |
| Pin Count | 14 | |
| Logic Family | 4000 | |
| Input Type | CMOS | |
| Minimum Operating Temperature | -55°C | |
| Maximum Propagation Delay Time @ CL | 90ns | |
| Maximum High Level Output Current | -4.2mA | |
| Maximum Operating Temperature | 125°C | |
| Length | 19.3mm | |
| Standards/Approvals | No | |
| Height | 4.57mm | |
| Maximum Supply Voltage | 18V | |
| Width | 6.35 mm | |
| Minimum Supply Voltage | 3V | |
| Maximum Low Level Output Current | 4.2mA | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Texas Instruments | ||
Product Type Logic Gate | ||
Logic Function OR | ||
Mount Type Through Hole | ||
Number of Elements 4 | ||
Number of Inputs per Gate 2 | ||
Schmitt Trigger Input No | ||
Package Type PDIP | ||
Pin Count 14 | ||
Logic Family 4000 | ||
Input Type CMOS | ||
Minimum Operating Temperature -55°C | ||
Maximum Propagation Delay Time @ CL 90ns | ||
Maximum High Level Output Current -4.2mA | ||
Maximum Operating Temperature 125°C | ||
Length 19.3mm | ||
Standards/Approvals No | ||
Height 4.57mm | ||
Maximum Supply Voltage 18V | ||
Width 6.35 mm | ||
Minimum Supply Voltage 3V | ||
Maximum Low Level Output Current 4.2mA | ||
Automotive Standard No | ||
4000 Series Logic Gates, Texas Instruments
Texas Instruments range of standard Logic Gates from the 4000 Series CMOS Logic Family
4000 CMOS Logic Family, Texas Instruments
CMOS Family devices
Wide operating voltage range: 3 to 18V
