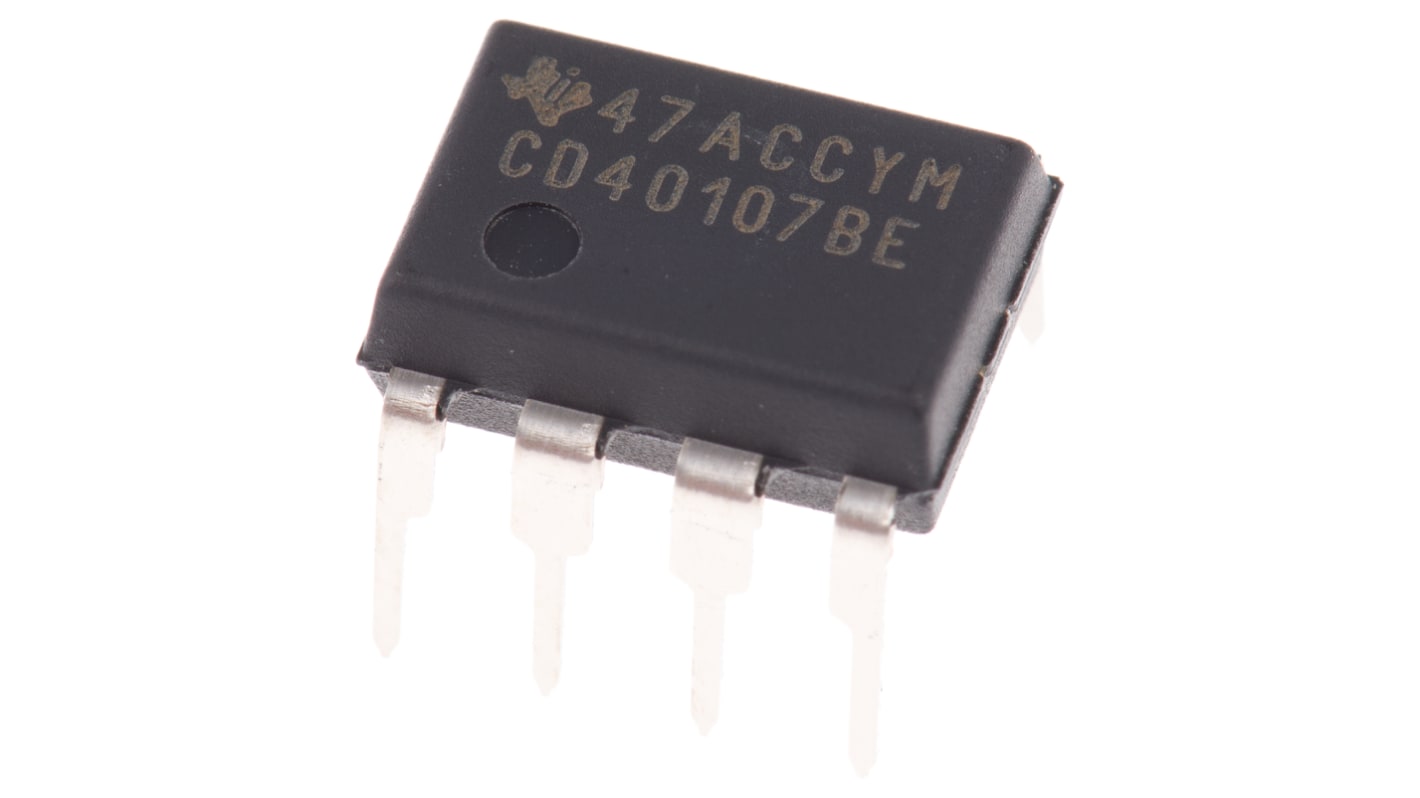

Texas Instruments CD40107BE, 2 2-Input NAND Logic Gate, 8-Pin PDIP
- RS 제품 번호:
- 527-924
- 제조사 부품 번호:
- CD40107BE
- 제조업체:
- Texas Instruments
대량 구매 할인 기용 가능
Subtotal (1 tube of 50 units)*
₩32,430.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 | Per Tube* |
|---|---|---|
| 50 - 200 | ₩648.60 | ₩32,392.40 |
| 250 + | ₩635.44 | ₩31,753.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 527-924
- 제조사 부품 번호:
- CD40107BE
- 제조업체:
- Texas Instruments
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Texas Instruments | |
| Logic Function | NAND | |
| Product Type | Logic Gate | |
| Mount Type | Through Hole | |
| Number of Elements | 2 | |
| Number of Inputs per Gate | 2 | |
| Schmitt Trigger Input | No | |
| Package Type | PDIP | |
| Pin Count | 8 | |
| Logic Family | 4000 | |
| Input Type | CMOS | |
| Minimum Operating Temperature | -55°C | |
| Maximum Propagation Delay Time @ CL | 60ns | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Length | 9.81mm | |
| Width | 6.35 mm | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 18V | |
| Height | 4.57mm | |
| Maximum Low Level Output Current | 89mA | |
| Output Type | Open Drain | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Texas Instruments | ||
Logic Function NAND | ||
Product Type Logic Gate | ||
Mount Type Through Hole | ||
Number of Elements 2 | ||
Number of Inputs per Gate 2 | ||
Schmitt Trigger Input No | ||
Package Type PDIP | ||
Pin Count 8 | ||
Logic Family 4000 | ||
Input Type CMOS | ||
Minimum Operating Temperature -55°C | ||
Maximum Propagation Delay Time @ CL 60ns | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Length 9.81mm | ||
Width 6.35 mm | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 18V | ||
Height 4.57mm | ||
Maximum Low Level Output Current 89mA | ||
Output Type Open Drain | ||
Automotive Standard No | ||
4000 Series Logic Gates, Texas Instruments
Texas Instruments range of standard Logic Gates from the 4000 Series CMOS Logic Family
4000 CMOS Logic Family, Texas Instruments
CMOS Family devices
Wide operating voltage range: 3 to 18V
