Texas Instruments CD74HCT688E, 8-Bit HCT, Active Low, Inverting, 20-Pin PDIP

RS 제품 번호:: 663-0650
제조사 부품 번호:: CD74HCT688E
제조업체:: Texas Instruments

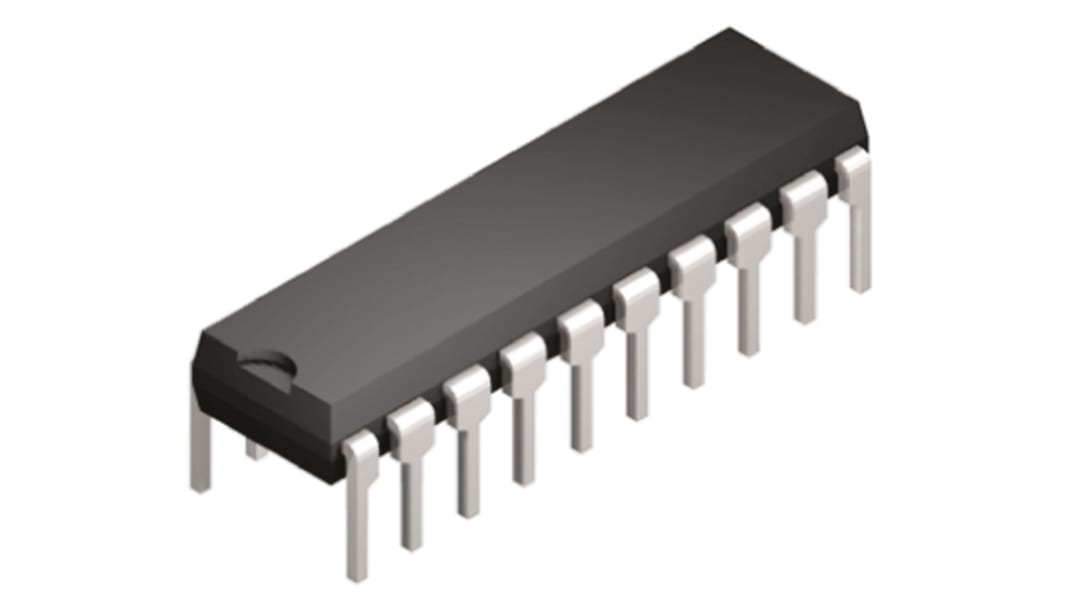

Texas Instruments CD74HCT688E, 8-Bit HCT, Active Low, Inverting, 20-Pin PDIP

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 pack of 5 units)*

₩8,065.20

마지막 RS 재고

40 개 단위 배송 준비 완료
2026년 2월 27일 부터 최종 5 개 단위 배송

수량	한팩당	한팩당*
5 - 20	₩1,613.04	₩8,065.20
25 +	₩1,594.24	₩7,971.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 663-0650
제조사 부품 번호:: CD74HCT688E
제조업체:: Texas Instruments

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Texas Instruments
	Product Type	Comparator
	Logic Family	HCT
	Number of Bits	8
	Output Type	Active Low
	Polarity	Inverting
	Mount Type	Through Hole
	Package Type	PDIP
	Pin Count	20
	Minimum Supply Voltage	4.5V
	Maximum Supply Voltage	5.5V
	Maximum High Level Output Current	-4mA
	Maximum Low Level Output Current	4mA
	Minimum Operating Temperature	-55°C
	Logic Comparator Type	Identity
	Maximum Propagation Delay Time @ CL	29ns
	Maximum Operating Temperature	125°C
	Standards/Approvals	No
	Length	24.33mm
	Series	CD74HCT688
	Width	6.35 mm
	Height	4.57mm
	Automotive Standard	No

	모두 선택
	브랜드 Texas Instruments
	Product Type Comparator
	Logic Family HCT
	Number of Bits 8
	Output Type Active Low
	Polarity Inverting
	Mount Type Through Hole
	Package Type PDIP
	Pin Count 20
	Minimum Supply Voltage 4.5V
	Maximum Supply Voltage 5.5V
	Maximum High Level Output Current -4mA
	Maximum Low Level Output Current 4mA
	Minimum Operating Temperature -55°C
	Logic Comparator Type Identity
	Maximum Propagation Delay Time @ CL 29ns
	Maximum Operating Temperature 125°C
	Standards/Approvals No
	Length 24.33mm
	Series CD74HCT688
	Width 6.35 mm
	Height 4.57mm
	Automotive Standard No

ESD Control Selection Guide V1

74HCT Family Complex Function, Texas Instruments

Texas Instruments Complex Function ICs from the 74HCT CMOS Logic Family includes Binary Adders, Magnitude & Identity Comparators, PLLs (Phase Locked Loop) and 4-to-7 BCD Decoder/Drivers. Inputs of the 74HCT family are 74LSTTL compatible, and the products use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.

High-Speed CMOS Logic

Operating Voltage 4.5 to 5.5 V

Compatibility: Input TTL, Output CMOS
