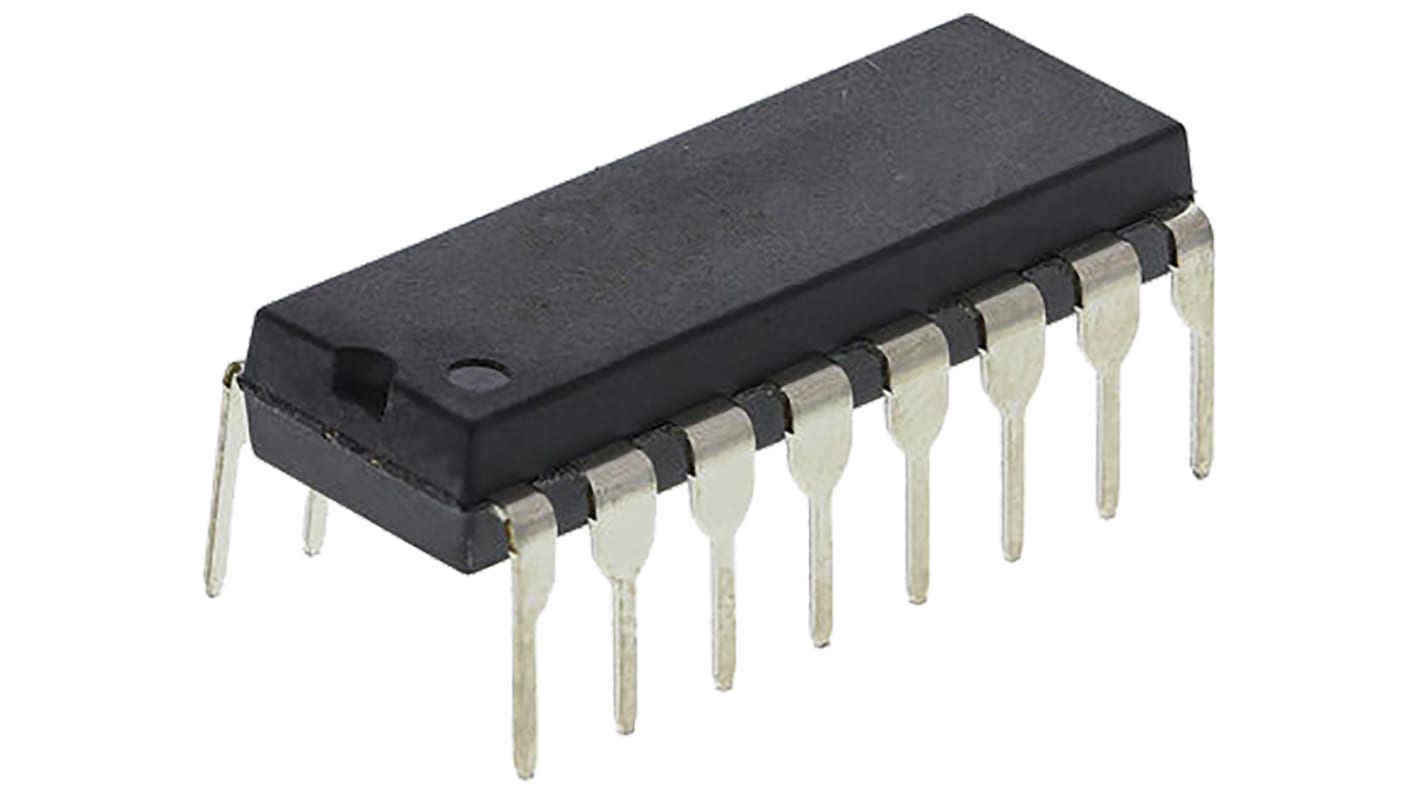

Texas Instruments CD74HC85E, 4-Bit, Magnitude Comparator, Non-Inverting, 16-Pin PDIP

RS 제품 번호:: 527-801
제조사 부품 번호:: CD74HC85E
제조업체:: Texas Instruments

Texas Instruments CD74HC85E, 4-Bit, Magnitude Comparator, Non-Inverting, 16-Pin PDIP

대량 구매 할인 기용 가능

Subtotal (1 tube of 25 units)*

₩31,678.00

재고있음

350 개 단위 배송 준비 완료
추가로 2026년 1월 16일 부터 275 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	Per Tube*
25 - 100	₩1,267.12	₩31,696.80
125 +	₩1,242.68	₩31,057.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 527-801
제조사 부품 번호:: CD74HC85E
제조업체:: Texas Instruments

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Texas Instruments
	Logic Family	HC
	Logic Function	Magnitude Comparator
	Output Function	A<B, A=B, A>B
	Number of Bits	4
	Polarity	Non-Inverting
	Mounting Type	Through Hole
	Package Type	PDIP
	Pin Count	16
	Maximum High Level Output Current	-5.2mA
	Maximum Low Level Output Current	5.2mA
	Maximum Propagation Delay Time @ Maximum CL	195 ns@ 2 V, 33 ns@ 6 V, 39 ns@ 4.5 V
	Dimensions	19.3 x 6.35 x 4.57mm
	Height	4.57mm
	Length	19.3mm
	Maximum Operating Supply Voltage	6 V
	Minimum Operating Temperature	-55 °C
	Width	6.35mm
	Minimum Operating Supply Voltage	2 V
	Maximum Operating Temperature	+125 °C
	Propagation Delay Test Condition	50pF

	모두 선택
	브랜드 Texas Instruments
	Logic Family HC
	Logic Function Magnitude Comparator
	Output Function A<B, A=B, A>B
	Number of Bits 4
	Polarity Non-Inverting
	Mounting Type Through Hole
	Package Type PDIP
	Pin Count 16
	Maximum High Level Output Current -5.2mA
	Maximum Low Level Output Current 5.2mA
	Maximum Propagation Delay Time @ Maximum CL 195 ns@ 2 V, 33 ns@ 6 V, 39 ns@ 4.5 V
	Dimensions 19.3 x 6.35 x 4.57mm
	Height 4.57mm
	Length 19.3mm
	Maximum Operating Supply Voltage 6 V
	Minimum Operating Temperature -55 °C
	Width 6.35mm
	Minimum Operating Supply Voltage 2 V
	Maximum Operating Temperature +125 °C
	Propagation Delay Test Condition 50pF

ESD Control Selection Guide V1

74HC Family Complex Function, Texas Instruments

Texas Instruments range of Complex Function products from the 74HC High Speed CMOS Logic Family includes Binary Adders, Magnitude & Identity Comparators, Parity Checkers, 7-segment LCD Latch/Decoder/Drivers and PLL (Phase Locked Loop) ICs. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.

High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS

74HC Family

Texas Instruments CD74HC85E, 4-Bit, Magnitude Comparator, Non-Inverting, 16-Pin PDIP

74HC Family Complex Function, Texas Instruments
