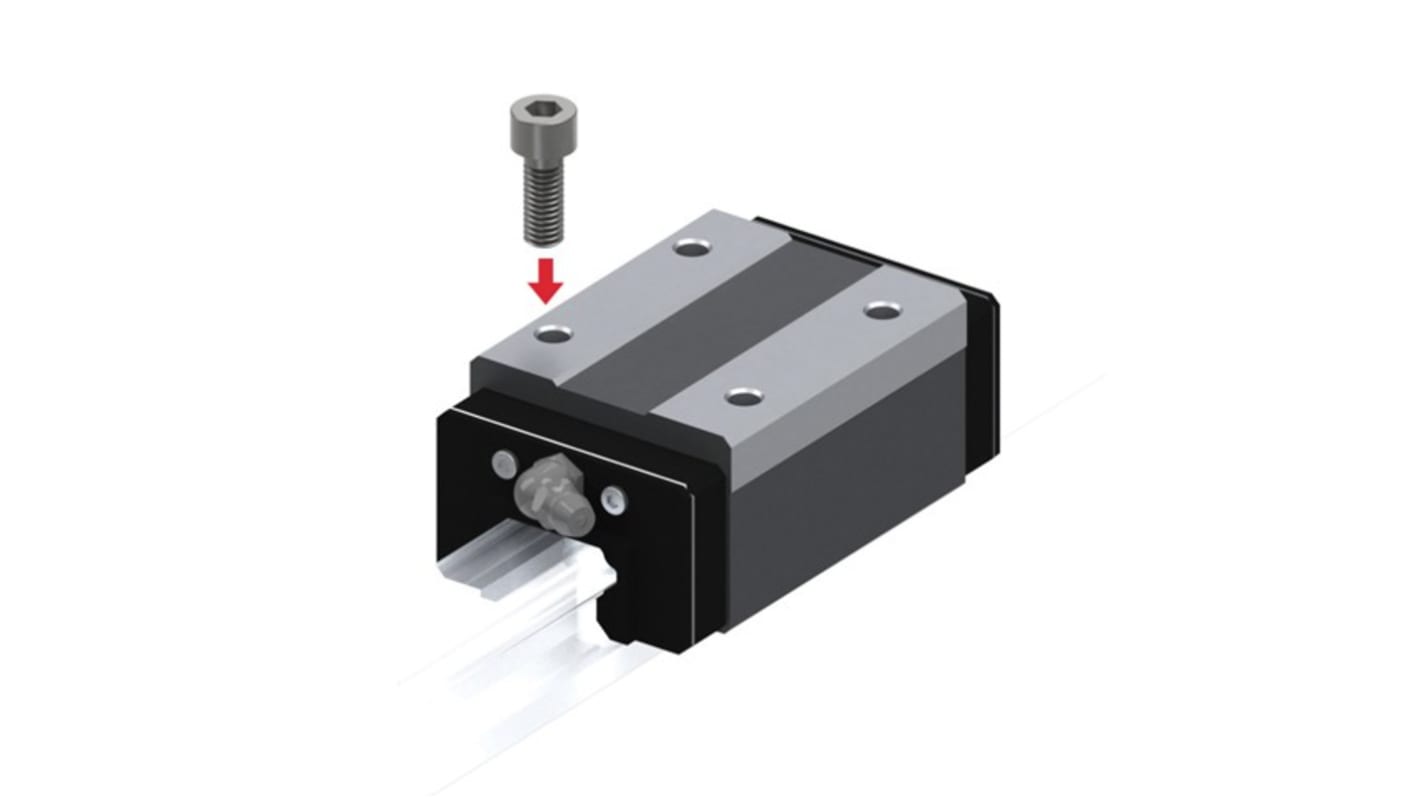

THK Linear Guide Carriage HSR, 27600N Dynamic Load, 23mm Rail Width

모든 Linear Guide Blocks 열람하기
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
RS 재고 번호:
217-5218
제조 부품 번호:
HSR25C1SSC1(GK)
제조업체:
THK
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

THK

Manufacturer Series

HSR

For Rail Width

23mm

Carriage Length

83.1mm

Carriage Width

70mm

Dynamic Load Rating

27600N

COO (Country of Origin):
FR
The THK Individual linear motion guide blocks from the THK LM guide HSR series for quick and easy interchangeability, ensuring problem free maintenance and short down times.

Balls travel in four precision-ground raceways on an LM rail through the LM block, and endplates incorporated in the LM block
Each row of balls is placed at a contact angle of 45°so that the rated loads applied to the LM block are uniform in all four directions (radial, reverse-radial and lateral directions) for a constant low friction coefficient, and increased rigidity
Blocks self-adjust enabling mounting error to be absorbed, even under a preload, for highly accurate, smooth linear motion
Material carbon steel
Overall height M(mm) 36
