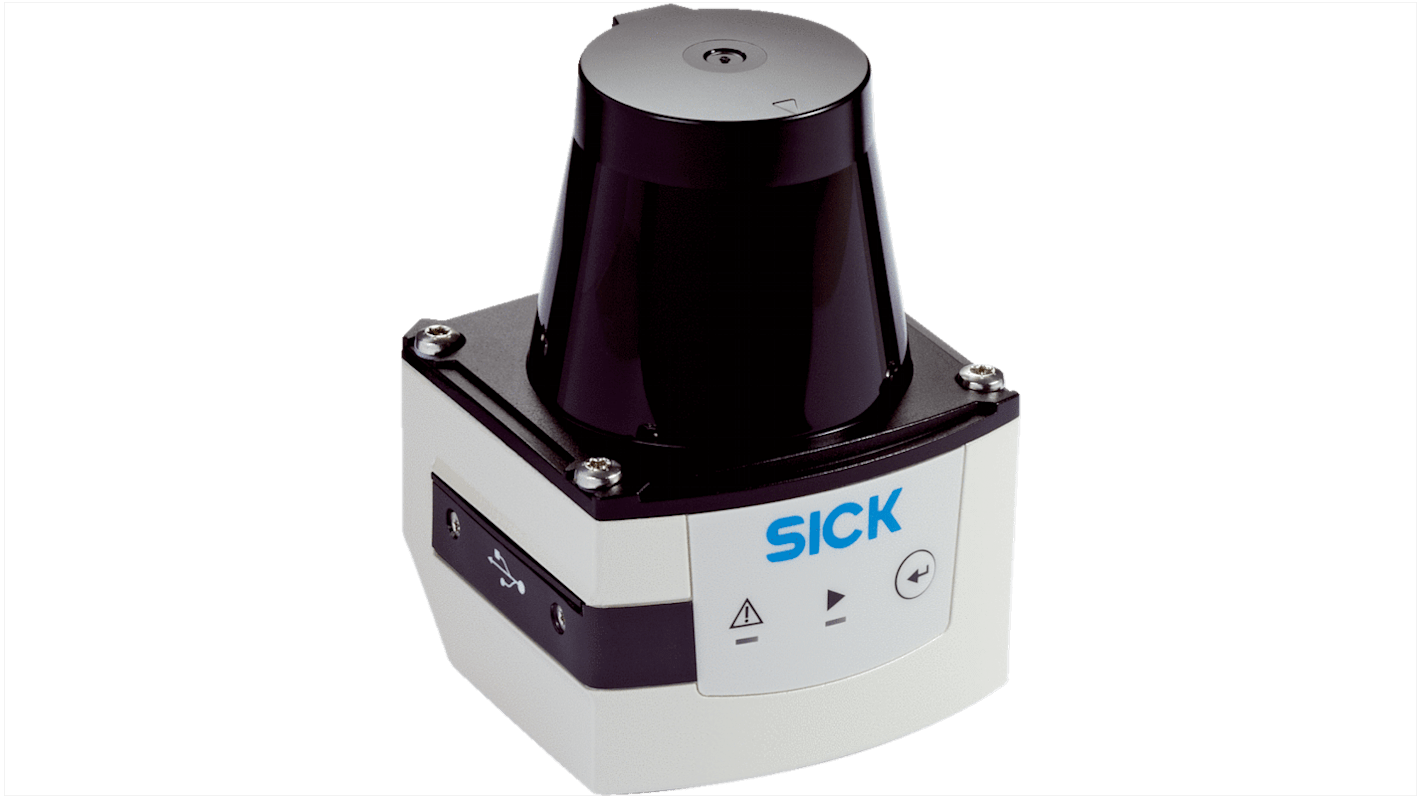

SICK TIM5XX Series Laser Scanner Receiver, 8 m Max Range
- RS 제품 번호:
- 285-4341
- 제조사 부품 번호:
- TIM561-2050101S80 / 1106065
- 제조업체:
- SICK
Subtotal (1 unit)*
₩4,152,880.00
제조사가 재고 비축중
- 2027년 1월 08일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩4,152,880.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 285-4341
- 제조사 부품 번호:
- TIM561-2050101S80 / 1106065
- 제조업체:
- SICK
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SICK | |
| Product Type | Laser Scanner | |
| Series | TIM5XX | |
| Component Type | Receiver | |
| Minimum Scanning Distance | 50mm | |
| Maximum Scanning Distance | 8m | |
| Standards/Approvals | EN 60825-1:2014, IEC 60529:1989+AMD1:1999+AMD2:2013, IEC 60825-1:2014, IEC 61140:2016-1 | |
| Maximum Response Time | 134ms | |
| Terminal Type | M12 Connector | |
| Hazardous Area Certification | No | |
| Width | 60mm | |
| Peak Wavelength | 850nm | |
| Length | 86mm | |
| Height | 60mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 SICK | ||
Product Type Laser Scanner | ||
Series TIM5XX | ||
Component Type Receiver | ||
Minimum Scanning Distance 50mm | ||
Maximum Scanning Distance 8m | ||
Standards/Approvals EN 60825-1:2014, IEC 60529:1989+AMD1:1999+AMD2:2013, IEC 60825-1:2014, IEC 61140:2016-1 | ||
Maximum Response Time 134ms | ||
Terminal Type M12 Connector | ||
Hazardous Area Certification No | ||
Width 60mm | ||
Peak Wavelength 850nm | ||
Length 86mm | ||
Height 60mm | ||
- COO (Country of Origin):
- DE
SICK TIM5XX Series Sensor, 8m Maximum Scanning Distance, 134ms Maximum Response Time - TIM561-2050101S80 / 1106065
This sensor is a Compact LiDAR device designed for close-range detection and machine-vision integration. It operates as a short-range distance-measurement module with an industry-standard connector and recognised safety and ingress standards, making it suitable for integration into control systems and automated inspection setups.
Features and Benefits:
• 8 m maximum scanning distance provides extended short-range detection
• 134 MS maximum response time enables prompt positional feedback
• 0.05 m minimum scanning distance supports near-field object detection
• M12 connector simplifies industrial electrical interfacing
• IEC 61140 conformity ensures Basic electrical safety in use
• 134 MS maximum response time enables prompt positional feedback
• 0.05 m minimum scanning distance supports near-field object detection
• M12 connector simplifies industrial electrical interfacing
• IEC 61140 conformity ensures Basic electrical safety in use
Applications
• Suitable for collision avoidance in automated guided vehicles
• Ideal for object detection on production conveyors
• Used with machine Vision systems for profile mapping
• Can be used for presence sensing in assembly stations
• Suitable for robotic proximity monitoring tasks
• Ideal for object detection on production conveyors
• Used with machine Vision systems for profile mapping
• Can be used for presence sensing in assembly stations
• Suitable for robotic proximity monitoring tasks
What approvals cover optical safety?
It meets EN 60825-1 and IEC 60825-1 standards for laser safety.
How is environmental protection addressed?
It is certified to IEC 60529, specifying its degree of ingress protection.
What Interface connects the device to control equipment?
A fixed M12 connector provides the electrical connection for signal and power.
Is the unit rated for hazardous zones?
It is not certified for use in hazardous areas.
