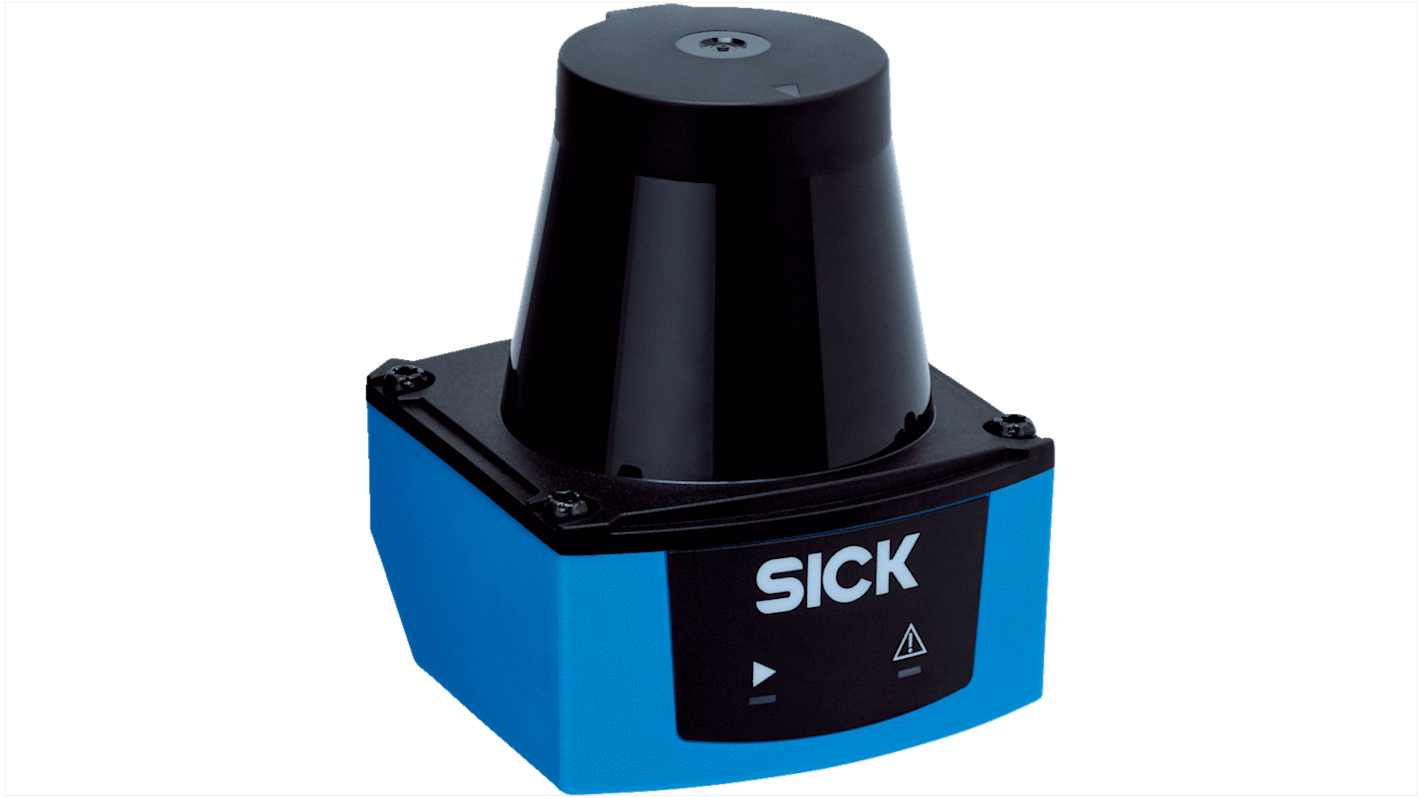

SICK TiM1xx Series Laser Scanner LiDAR Sensor, 10 m Max Range

RS 제품 번호:: 213-3817
Distrelec 제품 번호:: 304-23-376
제조사 부품 번호:: TIM150-3010300 / 1093243
제조업체:: SICK

Subtotal (1 unit)*

₩2,813,620.00

제조사가 재고 비축중

2026년 10월 16일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩2,813,620.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 213-3817
Distrelec 제품 번호:: 304-23-376
제조사 부품 번호:: TIM150-3010300 / 1093243
제조업체:: SICK

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	SICK
	Product Type	Laser Scanner
	Series	TiM1xx
	Component Type	LiDAR Sensor
	Maximum Scanning Distance	10m
	Minimum Scanning Distance	0.05m
	Standards/Approvals	EN 60068-2-30:2005, IEC 60068-2-64:2008, IEC 60529:1989+AMD1:1999+AMD2:2013, EN 60825-1:2014, IEC 61000-6-3:2006+AMD1:2010/IEC 61000-6-2:2005, IEC 61140:2016-1, IEC 60068-2-6:2007, IEC 60825-1:2014
	Maximum Response Time	70000μs
	Terminal Type	1 x 5-Pin M12 Male Device
	Hazardous Area Certification	No
	Peak Wavelength	850nm
	Width	60mm
	Height	75.8mm
	Length	60mm

	모두 선택
	브랜드 SICK
	Product Type Laser Scanner
	Series TiM1xx
	Component Type LiDAR Sensor
	Maximum Scanning Distance 10m
	Minimum Scanning Distance 0.05m
	Standards/Approvals EN 60068-2-30:2005, IEC 60068-2-64:2008, IEC 60529:1989+AMD1:1999+AMD2:2013, EN 60825-1:2014, IEC 61000-6-3:2006+AMD1:2010/IEC 61000-6-2:2005, IEC 61140:2016-1, IEC 60068-2-6:2007, IEC 60825-1:2014
	Maximum Response Time 70000μs
	Terminal Type 1 x 5-Pin M12 Male Device
	Hazardous Area Certification No
	Peak Wavelength 850nm
	Width 60mm
	Height 75.8mm
	Length 60mm

COO (Country of Origin):: MY

SICK TiM1xx Series Laser Scanner, 10m Maximum Scanning Distance, 0.05m Minimum Scanning Distance - TIM150-3010300 / 1093243

This laser scanner is a Compact 2D LiDAR sensor designed for indoor detection and distance measurement in automation and robotics environments. It emits infrared light at 850nm and performs wide-area scans to detect objects and provide field evaluations for control tasks. The unit connects via a rotatable 5‑pin M12 male connector and operates from low-voltage DC supply, making it suitable for integration into machine and process systems.

Features & Benefits

• 200° aperture for broad-area coverage and fewer sensor units required
• 14.5Hz scanning frequency for consistent environment updates
• 1° angular resolution for fine angle discrimination of targets
• 0.05m minimum detection to capture very close objects
• 10m maximum scanning distance for short to mid-range monitoring
• IO‑Link Interface enabling parameterisation and auxiliary functions

Applications

• Suitable for navigation assistance in mobile robots and AMRs
• Ideal for collision avoidance on automated guided vehicles
• Used for area surveillance and obstruction detection in factories
• Can be used for conveyor monitoring and object presence checks
• Suitable for integration with control systems requiring digital outputs

How quickly does it provide new measurement data?

Typical response time is 70ms, yielding Rapid updates for motion control and obstacle handling.

What environmental limits affect operation?

It functions between −10°C to +50°C with ambient light immunity up to 30,000 lx and non‑condensing humidity up to 95%.

What electrical characteristics must be observed when using IO‑Link?

Standard supply is 10V DC–28V DC, with IO‑Link requiring supply voltage greater than 18V for certain configurations.

How accurate are range measurements under typical conditions?

Systematic deviation is typically ±40mm while statistical variation is around 30mm, dependent on reflectivity and environment.

What mechanical or protection attributes support industrial deployment?

The enclosure is rated IP65 and the unit is lightweight at 122g without cables, easing mounting in space‑limited installations.
