Schmersal SLB440 Series Light Beam Receiver, 1 Beam(s), 15m Max Range
- RS 제품 번호:
- 146-5819
- 제조사 부품 번호:
- SLB440-R-1-ST
- 제조업체:
- Schmersal
Subtotal (1 unit)*
₩592,876.80
현재 액세스할 수 없는 재고 정보
수량 | 한팩당 |
|---|---|
| 1 + | ₩592,876.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 146-5819
- 제조사 부품 번호:
- SLB440-R-1-ST
- 제조업체:
- Schmersal
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schmersal | |
| Series | SLB440 | |
| Component Type | Receiver | |
| Minimum Scanning Distance | 300mm | |
| Maximum Scanning Distance | 15m | |
| Safety Type | 4 | |
| SIL IEC 61508 | SIL 3 | |
| PL EN ISO 13849-1 | PL e | |
| Number of Beams | 1 | |
| Peak Wavelength | 880nm | |
| Maximum Response Time | 22 ms | |
| Terminal Type | M12 Plug | |
| Dimensions | 33 x 27.8 x 91 mm | |
| Diameter | M12 | |
| Application | Body | |
| Length | 33mm | |
| Width | 27.8mm | |
| Height | 91mm | |
| Features | Automatic Start or Restart Interlock, Compact Design with Integral Evaluation, Height Range 75 m (Reserve up to 90 m), Safe OSSD Outputs to Ple, Set-up Tool & Diagnostic Indication, Sturdy Metal Enclosure with M12 Connector or Cable, Version with Heater for Outdoor Applications Down to –30°C | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schmersal | ||
Series SLB440 | ||
Component Type Receiver | ||
Minimum Scanning Distance 300mm | ||
Maximum Scanning Distance 15m | ||
Safety Type 4 | ||
SIL IEC 61508 SIL 3 | ||
PL EN ISO 13849-1 PL e | ||
Number of Beams 1 | ||
Peak Wavelength 880nm | ||
Maximum Response Time 22 ms | ||
Terminal Type M12 Plug | ||
Dimensions 33 x 27.8 x 91 mm | ||
Diameter M12 | ||
Application Body | ||
Length 33mm | ||
Width 27.8mm | ||
Height 91mm | ||
Features Automatic Start or Restart Interlock, Compact Design with Integral Evaluation, Height Range 75 m (Reserve up to 90 m), Safe OSSD Outputs to Ple, Set-up Tool & Diagnostic Indication, Sturdy Metal Enclosure with M12 Connector or Cable, Version with Heater for Outdoor Applications Down to –30°C | ||
- COO (Country of Origin):
- DE

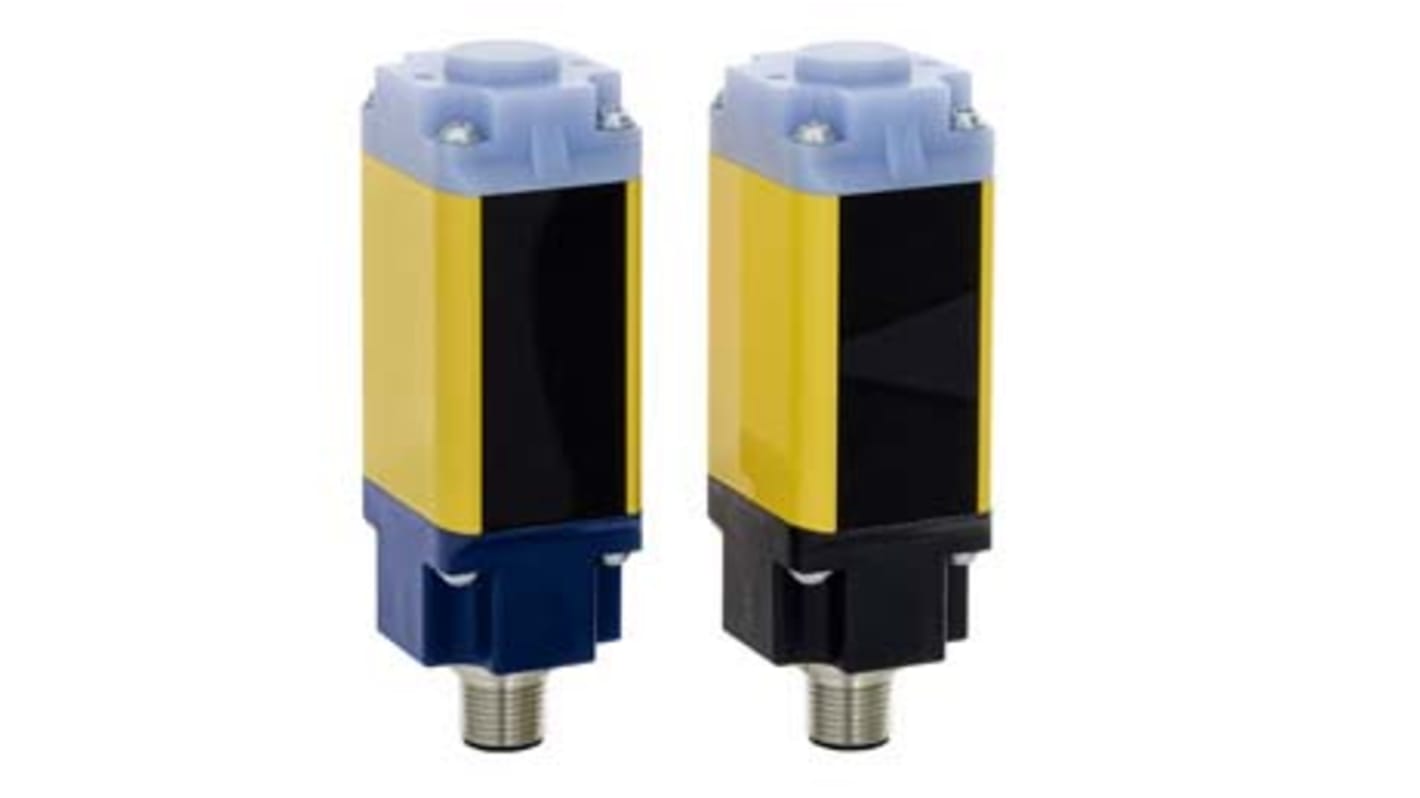

Schmersal Light Beam Receiver, 15m Maximum Range, Aluminium - SLB440 Series - SLB440-R-1-ST
Prevent injuries in hazardous environments with this light beam receiver from Schmersal. This safety device is one half of a light curtain setup, and it works by detecting and holding the light beam sent from the transmitter. It triggers a stop or an alarm once the light beam is interrupted by an object, helping to promote workplace safety. The receiver's aluminium body material is robust and resistant to corrosion, so it will last a long time in harsh environments. It's commonly found on material handling equipment, as well as in restricted areas in chemical production plants.
Features & Benefits
• LED status indicators for easy monitoring and diagnostics
• Low power consumption of
• Low power consumption of
Applications
• Food processing and packaging industries
• Conveyors
• Conveyors
Is this beam receiver dustproof?
Yes, this light beam receiver has an IP67 rating. This indicates that it's dust-tight and can withstand immersion in up to 1m of water for 30 minutes.
