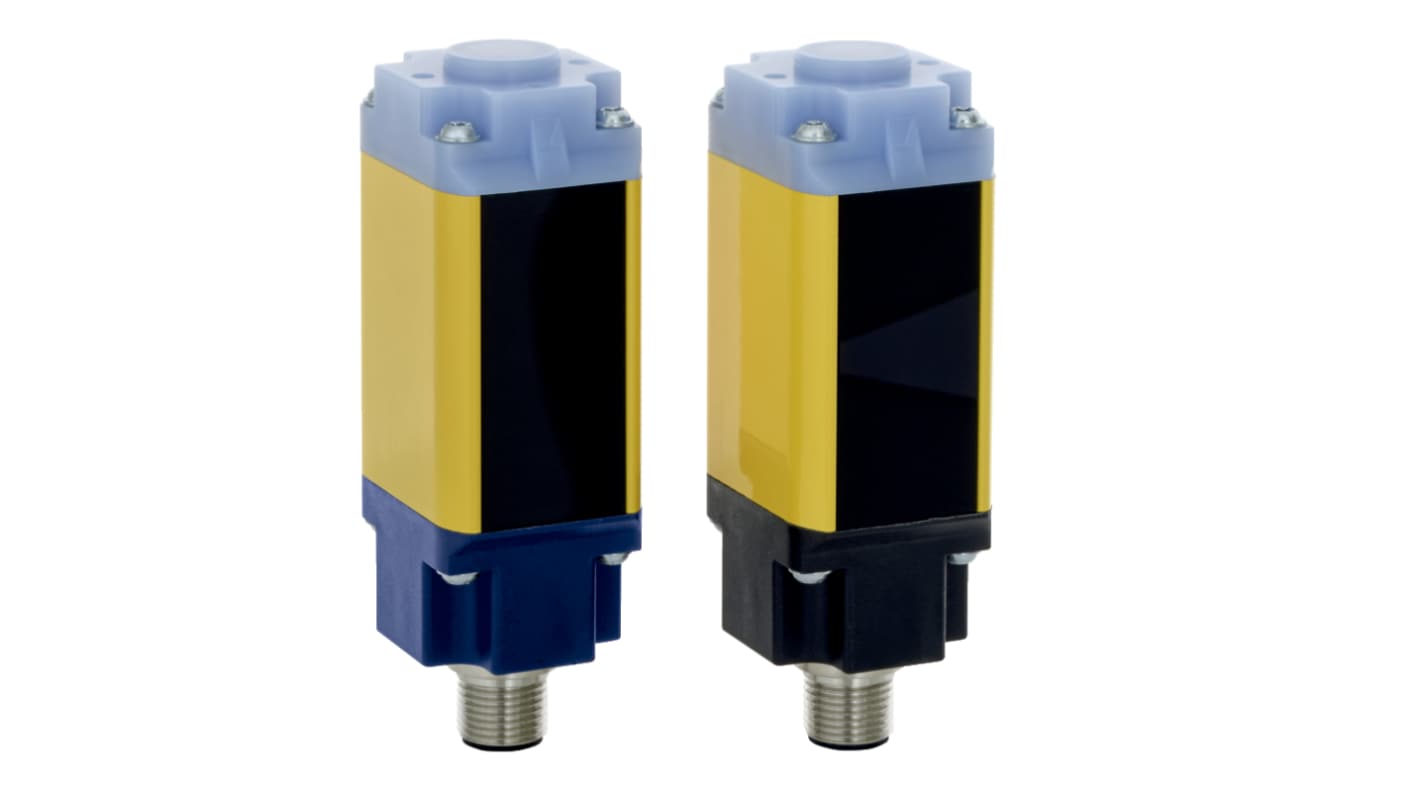

Schmersal SLB440-ER Series Light Beam Light Barrier, 1 Beam(s), 15 m Max Range
- RS 제품 번호:
- 336-046
- 제조사 부품 번호:
- SLB440-ER-2-ST
- 제조업체:
- Schmersal
Subtotal (1 unit)*
₩1,182,877.20
일시적 품절
- 2026년 4월 22일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,182,877.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 336-046
- 제조사 부품 번호:
- SLB440-ER-2-ST
- 제조업체:
- Schmersal
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schmersal | |
| Product Type | Light Beam | |
| Series | SLB440-ER | |
| Component Type | Light Barrier | |
| Maximum Scanning Distance | 15m | |
| Minimum Scanning Distance | 0.3m | |
| Safety Type | 4 | |
| Standards/Approvals | EN IEC 61496-2 EN IEC 61496-1 | |
| Number of Beams | 1 | |
| Maximum Response Time | 22ms | |
| Terminal Type | M12 Connector | |
| Hazardous Area Certification | No | |
| Peak Wavelength | 880nm | |
| Height | 91mm | |
| Length | 33mm | |
| Width | 27.8 mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schmersal | ||
Product Type Light Beam | ||
Series SLB440-ER | ||
Component Type Light Barrier | ||
Maximum Scanning Distance 15m | ||
Minimum Scanning Distance 0.3m | ||
Safety Type 4 | ||
Standards/Approvals EN IEC 61496-2 EN IEC 61496-1 | ||
Number of Beams 1 | ||
Maximum Response Time 22ms | ||
Terminal Type M12 Connector | ||
Hazardous Area Certification No | ||
Peak Wavelength 880nm | ||
Height 91mm | ||
Length 33mm | ||
Width 27.8 mm | ||
제외
- COO (Country of Origin):
- DE
The Schmersal safety light barriers feature a compact design with integral evaluation. They have a height range of 75 meters, with a reserve up to 90 meters. These barriers provide safe OSSD outputs to PLe and include an automatic start or restart interlock.
Sturdy metal enclosure with M12 connector or cable
Version with heater for outdoor applications down to –30°C
Set-up tool and diagnostic indication
