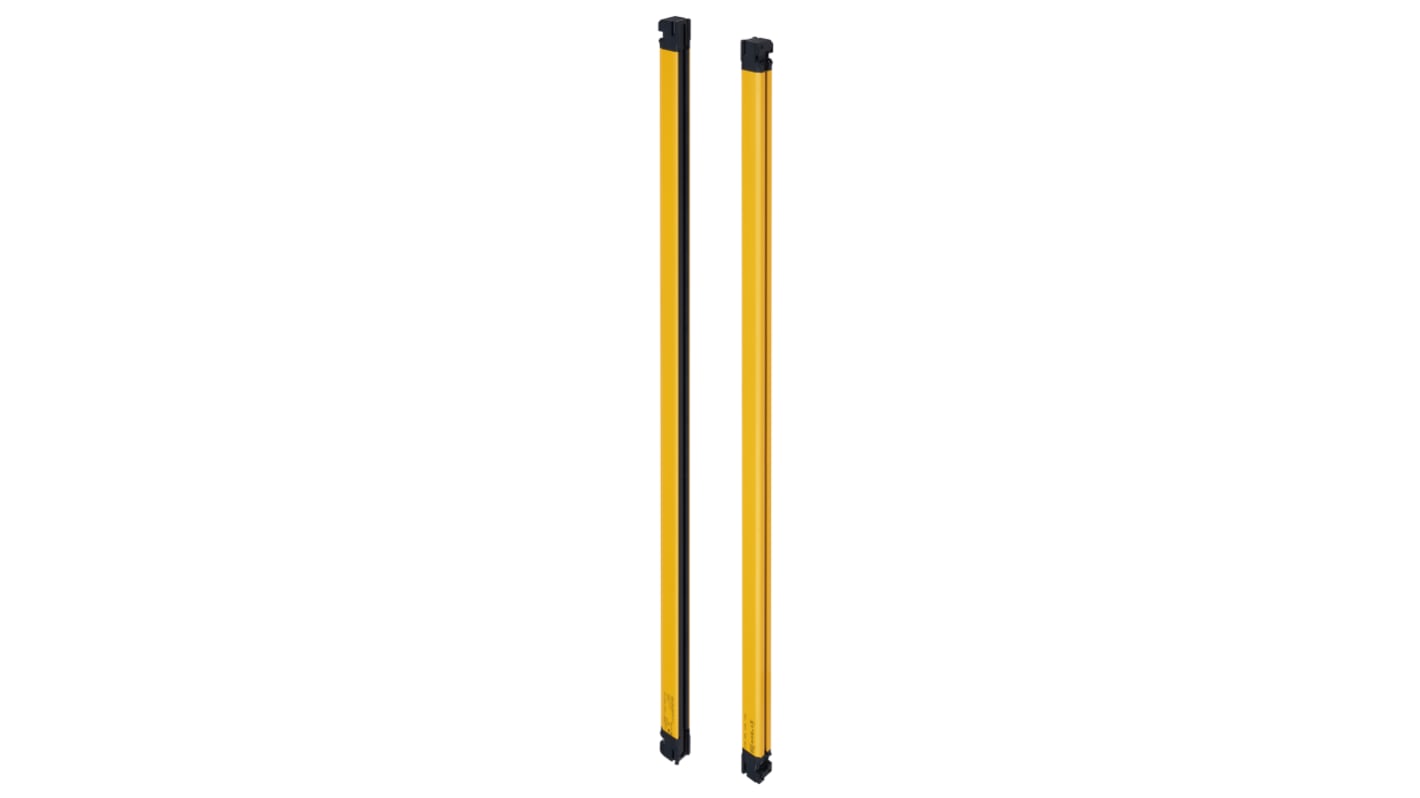

Omron F3SG Series Light Curtain Receiver, Sender, 88 Beam(s), 25 mm Resolution

RS 제품 번호:: 214-6795
제조사 부품 번호:: F3SG-4SRB1760-25
제조업체:: Omron

Omron F3SG Series Light Curtain Receiver, Sender, 88 Beam(s), 25 mm Resolution

Subtotal (1 unit)*

₩5,078,840.00

일시적 품절

2026년 11월 18일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩5,078,840.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 214-6795
제조사 부품 번호:: F3SG-4SRB1760-25
제조업체:: Omron

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Omron
	Product Type	Light Curtain
	Series	F3SG
	Beam Resolution	25mm
	Component Type	Receiver, Sender
	Safety Type	Type 4
	Standards/Approvals	No
	Number of Beams	88
	Protective Height	1.76m
	Maximum Protective Width	20m
	Maximum Supply Voltage	28.8V
	Minimum Scanning Distance	0.3m
	Maximum Scanning Distance	20m
	Width	32mm
	Maximum Response Time	13ms
	Height	1.76m
	Length	1.76m

	모두 선택
	브랜드 Omron
	Product Type Light Curtain
	Series F3SG
	Beam Resolution 25mm
	Component Type Receiver, Sender
	Safety Type Type 4
	Standards/Approvals No
	Number of Beams 88
	Protective Height 1.76m
	Maximum Protective Width 20m
	Maximum Supply Voltage 28.8V
	Minimum Scanning Distance 0.3m
	Maximum Scanning Distance 20m
	Width 32mm
	Maximum Response Time 13ms
	Height 1.76m
	Length 1.76m

Datasheet - F3SG-4SRB1760-25

Omron F3SG Series Light Curtain, 1.76m Protective Height, 88 Beams - F3SG-4SRB1760-25

This light curtain is a safety sensor designed to create a protective optical barrier for machinery and access points in industrial environments. It operates as a receiver within a multi-beam detection system and is intended for safeguarding personnel by interrupting hazardous motion when an intrusion into the guarded area is detected.

Features and Benefits:

• 88 beams delivering dense detection for small object sensing
• 25mm beam resolution enabling fine gap discrimination
• Maximum scanning range 20m for extended coverage
• Minimum detection distance 0.3m for close-proximity protection
• 13ms maximum response time for rapid cessation of hazardous motion
• Supply voltage up to 28.8V for standard industrial power systems

Applications

• Suitable for perimeter guarding on automated assembly cells
• Ideal for access protection at robotic workstations
• Used with conveyor infeed and outfeed machine guarding
• Can be used for safeguarding loading bay areas with long reach
• Used for integration into safety control systems for busy production lines

What protective height does the device provide?

The unit provides a protective height of 1760mm to cover vertical hazard zones.

How wide an area can a single installation protect?

A single installation supports a maximum protective width of 20m to shield expansive openings.

What physical form factor should be expected for mounting?

The receiver has a slim profile of 32mm width to facilitate close mounting in constrained spaces.

What is the minimal distance required between emitter and receiver for reliable operation?

Reliable detection begins at a separation of 0.3 m, allowing placement near moving parts.
