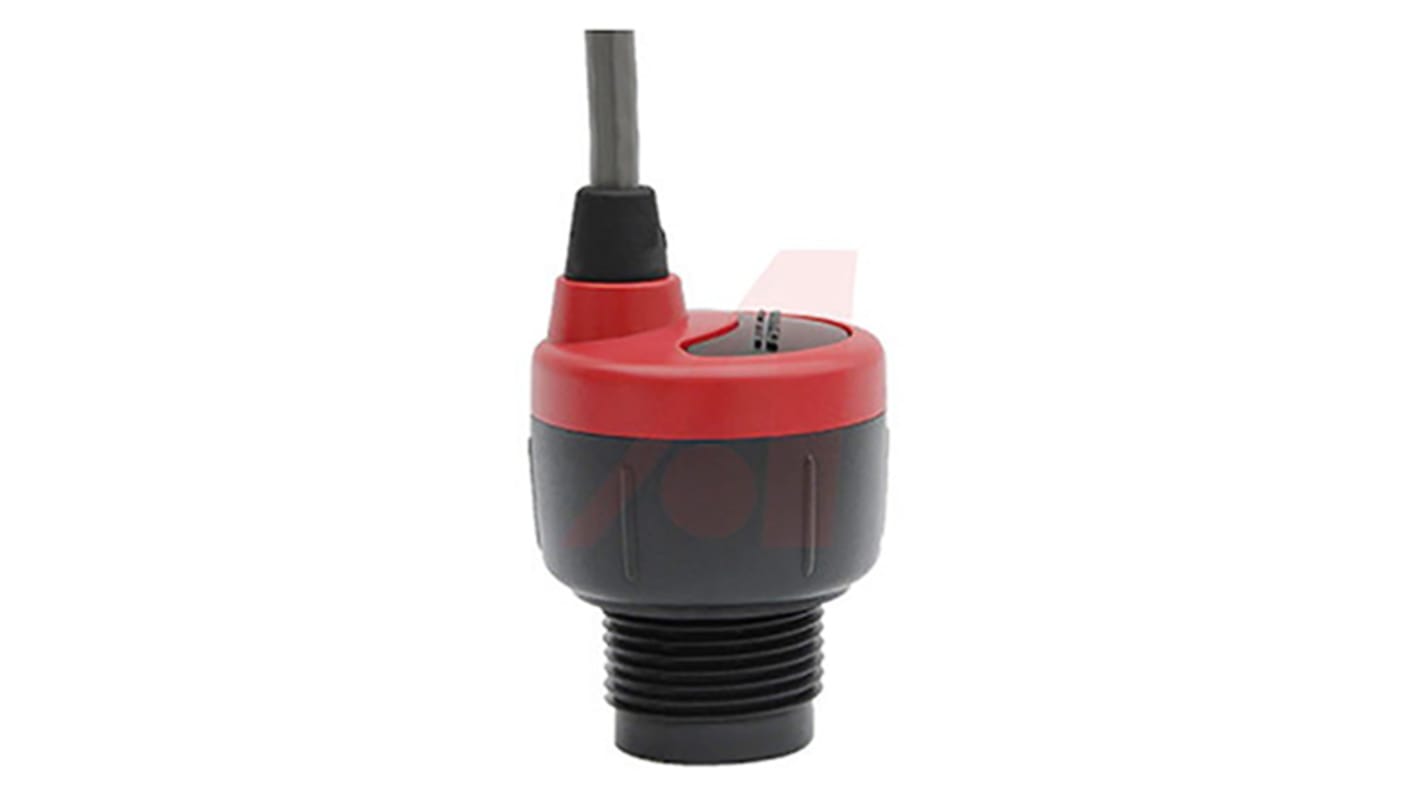

Flowline EchoPod Series Controller, Ultrasonic Level Switch Level Sensor, Vertical, Polycarbonate Body

모든 Level Sensors 열람하기

Subtotal (1 unit)*

₩836,731.60

Add to Basket
수량 선택 또는 입력
재고있음
  • 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩836,731.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
889-1374
제조사 부품 번호:
DS14-00
제조업체:
Flowline
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Flowline

Device Type

Controller, Ultrasonic Level Switch

Mounting Type

Vertical

Body Material

Polycarbonate

Cable Length

1.2m

Minimum Operating Temperature

-35°C

Maximum Operating Temperature

+60°C

Maximum DC Voltage

24V

Maximum AC Voltage

24V

Maximum Pressure

30psi

Gasket Material

Viton

Series

EchoPod

Standards Met

CE, cFMus, RoHS Compliant

Current Rating

1 A

해당 안됨

COO (Country of Origin):
US

Flowline EchoPod DS14 Ultrasonic Level Sensor


Robust range of Ultrasonic level sensors provide the user with a non-contact continuous level solution. Thanks to the non-contact design the Flowline EchoPod DS14 series is the ideal product for use within applications handling corrosive, sticky or dirty liquid. An embedded level controller within the DS14 series can reduce the price of installation, eliminating the cost of external hardware

Accurate measurement make possible thanks to automatic temperature compensation

Continuous non-contact measurement up to 49.2"

Optimized for small tank applications made possible by a narrow 2" beam width and 2" short dead band

PVDF transducerand 6P Polycarbonate enclosure construction makes the EchoPod DS14 series suitable for corrosive applications

Quick & simple configuration via Flowline's Free WebCal Software & USB Adapter

Note

Compatible with Various Flowline product ranges such as DataLoop, DataVie, DataPoint & Commander
