Flowline EchoPod Series Ultrasonic Level Sensor Ultrasonic Level Sensor, Vertical, Fluorelastomer, Housing Polycarbonate

모든 Level Sensors 열람하기

Subtotal (1 unit)*

₩1,522,142.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 3월 30일 부터 1 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩1,522,142.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
124-0113
제조사 부품 번호:
DL34-01
제조업체:
Flowline
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Flowline

Product Type

Ultrasonic Level Sensor

Device Type

Ultrasonic Level Sensor

Mount Type

Vertical

Housing Material

Polycarbonate

Cable Length

1.2m

Minimum Operating Temperature

-35°C

Maximum Operating Temperature

60°C

Maximum DC Voltage

24V dc

Maximum Current

20mA

Maximum Pressure

2bar

Gasket Material

Fluorelastomer

Standards/Approvals

cFMus

Hazardous Area Certification

No

Series

EchoPod

COO (Country of Origin):
US

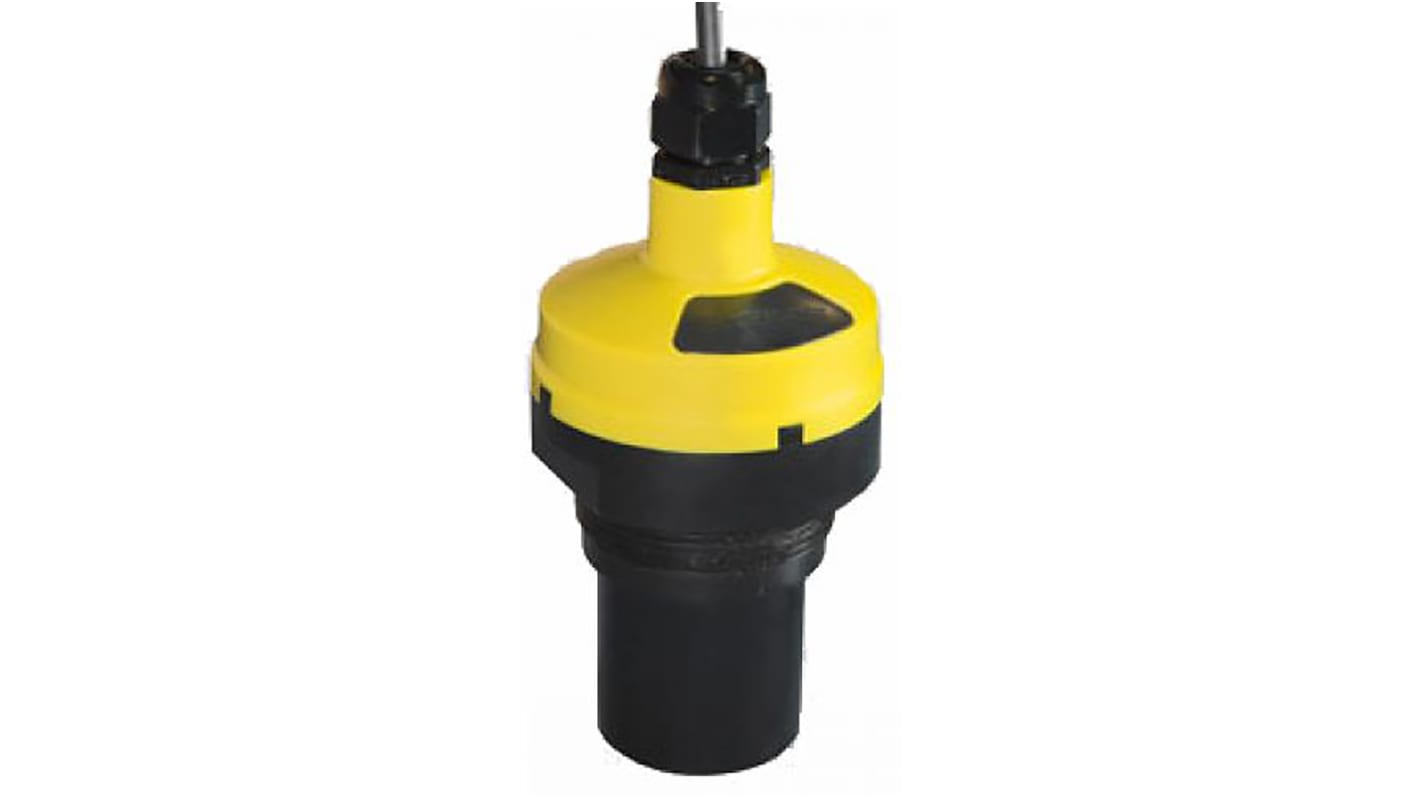

Flowline EchoPod DL34 Ultrasonic Level Sensor


Robust range of Ultrasonic level sensors provide the user with a non-contact continuous level solution. Thanks to the non-contact design, the Flowline EchoPod DL34 series is the ideal product for use within applications handling corrosive, sticky or dirty liquid. An embedded level controller within the DL14 series can reduce the price of installation, eliminating the cost of external hardware

Features and Benefits


Accurate measurement made possible thanks to automatic temperature compensation

Continuous non-contact measurement up to 49.2"

Optimised for small tank applications with a narrow 2" beam width and 2" short dead band

PVDF transducer and 6P Polycarbonate enclosure construction makes the EchoPod DL34 series suitable for corrosive applications

Quick & simple configuration via Flowline's Free WebCal Software & USB Adapter

Note

Compatible with Various Flowline product ranges such as DataLoop, DataView, DataPoint & Commander
