Endress+Hauser Prosonic M FMU42 Series Ultrasonic Level Measurement Ultrasonic Level Sensor, Flange, ATEX-Rated, Housing
- RS 제품 번호:
- 287-1738
- 제조사 부품 번호:
- FMU42-APB2A23A
- 제조업체:
- Endress+Hauser
Subtotal (1 unit)*
₩4,276,954.50
제조사가 재고 비축중
- 2026년 7월 20일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩4,276,954.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 287-1738
- 제조사 부품 번호:
- FMU42-APB2A23A
- 제조업체:
- Endress+Hauser
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Endress+Hauser | |
| Product Type | Ultrasonic Level Sensor | |
| Device Type | Ultrasonic Level Measurement | |
| Mount Type | Flange | |
| Housing Material | Polyvinylidene Fluoride | |
| Cable Length | 20m | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Maximum Pressure | 2.5bar | |
| Standards/Approvals | NEPSI, INMETRO, FM, CSA, ATEX | |
| Hazardous Area Certification | ATEX | |
| Series | Prosonic M FMU42 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Endress+Hauser | ||
Product Type Ultrasonic Level Sensor | ||
Device Type Ultrasonic Level Measurement | ||
Mount Type Flange | ||
Housing Material Polyvinylidene Fluoride | ||
Cable Length 20m | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Maximum Pressure 2.5bar | ||
Standards/Approvals NEPSI, INMETRO, FM, CSA, ATEX | ||
Hazardous Area Certification ATEX | ||
Series Prosonic M FMU42 | ||
- COO (Country of Origin):
- DE

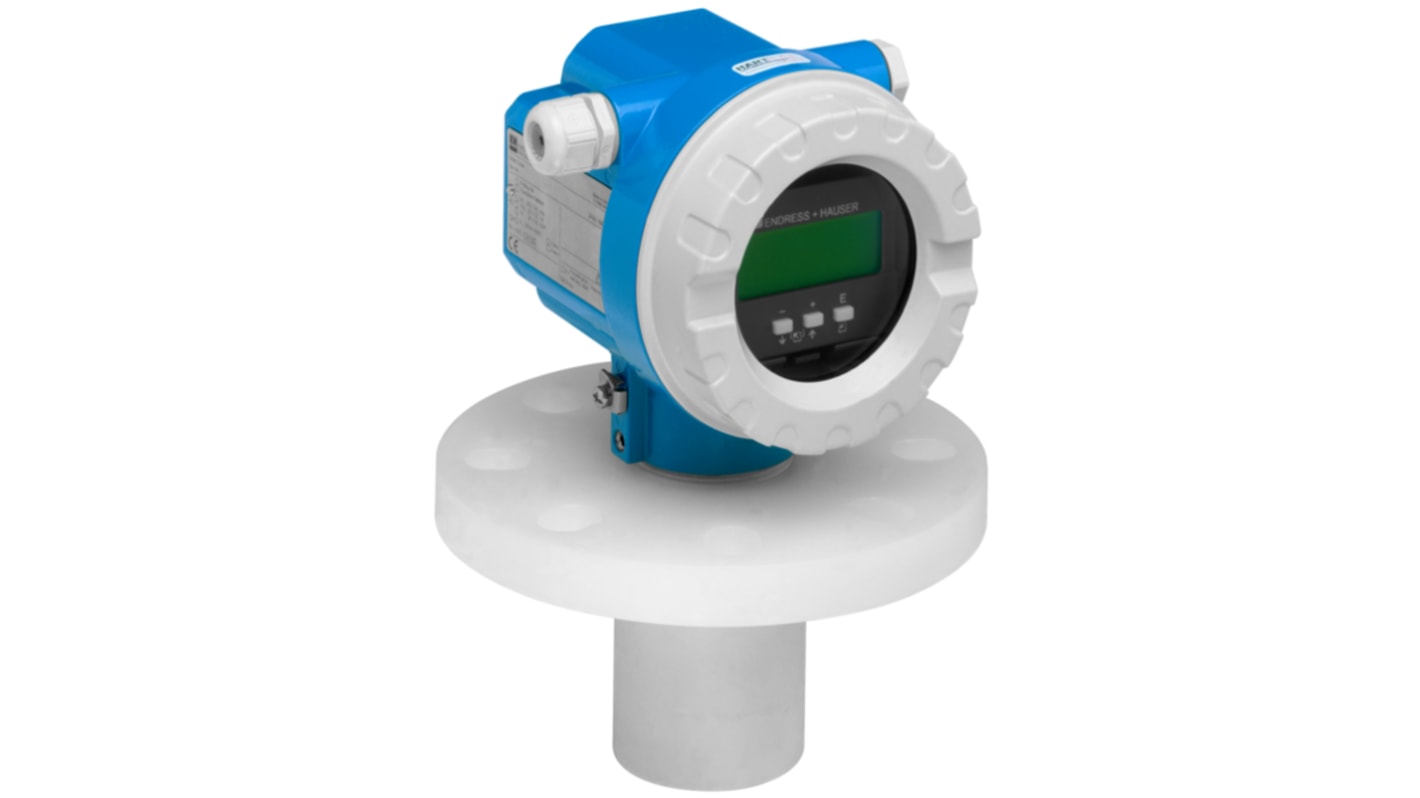

The ENDRESS+HAUSER Ultrasonic level sensor is a cost-effective device for sophisticated level measurement in liquids and bulk solids. With its ultrasonic measuring technology, it provides accurate measurements and is suitable for a wide range of applications. The two-wire or four-wire compact transmitter can be used in various settings such as storage tanks, agitators, stockpiles, and conveyor belts. It offers quick and simple commissioning via menu-guided on-site operation and includes a four-line plain text display with 7 selectable languages. The Prosonic FMU42 is designed with a hermetically sealed and potted sensor made of chemically resistant PVDF material, ensuring reliable performance even in harsh environments. It also features a linearization function for easy conversion of measured values into any unit of length, volume, or flow rate.
Accurate +/- 4 mm or +/- 0.2% of set measuring range
Wide process temperature range of -40 °C to 80 °C (-40 °F to 176 °F)
Suitable for liquids and solids with measurement distances up to 10m (33 ft) and 5m (16 ft) respectively
Compact design with a two-wire or four-wire transmitter
Integrated temperature sensor for automatic correction of sound velocity
Quick and simple commissioning with on-site menu-guided operation
Hermetically sealed and potted PVDF sensor for chemical resistance
Linearization function with up to 32 points for easy conversion of measured values
Seven selectable languages for the on-site display
