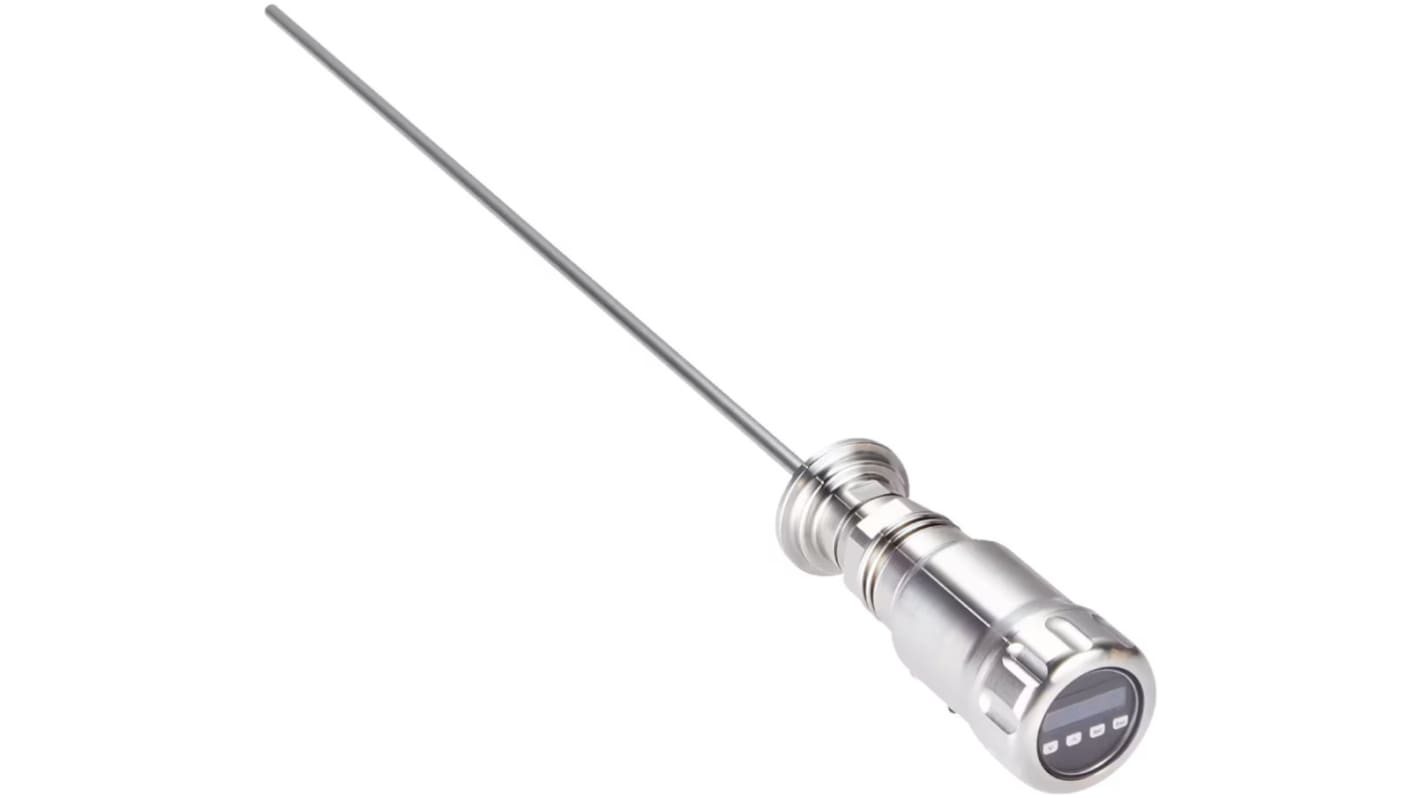

SICK LFP Series TDR Level Sensor Level Sensor, NPN, PNP Output, Flange Mount, Steel 303 Body
- RS 제품 번호:
- 284-9240
- 제조사 부품 번호:
- LFP0900-G1NMB
- 제조업체:
- SICK
가격 개당**
₩2,011,970.36
일시 품절-다음 입고 날짜는 27/07/2025 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.*
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
수량 | 한팩당 |
---|---|
1 + | ₩2,011,970.36 |
** 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 284-9240
- 제조사 부품 번호:
- LFP0900-G1NMB
- 제조업체:
- SICK
- COO (Country of Origin):
- DE
Overview
The TDR level sensor LFP Inox is equipped with a G A process connection and features a probe length of 900 mm, suitable for standard applications. It offers multiple output signal options, including 1 x PNP, 1 x PNP/NPN, and 4 mA to 20 mA / 0 V to 10 V. The sensor is connected via a round connector M12 x 1 with 5 pins and can operate within a wide process temperature range from -20 °C to +150 °C. Additionally, it is designed with a housing featuring a viewing window made from PMMA (acrylic glass). The LFP Cubic is a level sensor for liquids using TDR technology a process for determining the time of flight of electromagnetic waves. The time difference between the sent pulse and the reflected pulse is used to generate a level signal. The sensor can emit this a as continuous measured value (analogue output) and a freely positionable switching point (switching output).
The LFP Cubic is compatible for use in virtually any liquid. Thanks to its modular probe, the sensor can be integrated quickly into any application. It can even be used in deposit-forming and foaming liquids. The sensor’s intuitive setup uses four pushbuttons and a display to ensure quick and easy adaptation to the application. Remote amplifier, IO-Link interface, and a design which features a process connection in titanium are additional features for versatile use.
At a glance
Level sensor for liquids
No mechanical moving parts
Interchangeable rod probe which can be cut to lengths between 200 mm and 2,000 mm (cable probe up to 4,000 mm)
Resistant to deposit formation
Process temperature up to 100 °C,process pressure up to 10 bar
3 in 1: combines display, analogue output (according to NAMUR NE 43), and binary output
High enclosure rating of IP 67, rotatable housing and remote amplifier
IO-Link 1.1
No mechanical moving parts
Interchangeable rod probe which can be cut to lengths between 200 mm and 2,000 mm (cable probe up to 4,000 mm)
Resistant to deposit formation
Process temperature up to 100 °C,process pressure up to 10 bar
3 in 1: combines display, analogue output (according to NAMUR NE 43), and binary output
High enclosure rating of IP 67, rotatable housing and remote amplifier
IO-Link 1.1
Your Benefit
Rugged design increases service life
High flexibility with interchangeable rod probe or cable probe that can be cut to length
Cost savings due to multiple output signals: One system for both point level and continuous level measurement
Maintenance-free and easy to commission without calibration, saving time and money
Titanium process connection is highly resistant to chemicals
Compact, rotatable housing and remote amplifier for flexible installation
High availability, even when several sensors are installed in parallel, since there is no mutual device interference
Universal technology facilitating calibration-free measurement saves time and money
High flexibility with interchangeable rod probe or cable probe that can be cut to length
Cost savings due to multiple output signals: One system for both point level and continuous level measurement
Maintenance-free and easy to commission without calibration, saving time and money
Titanium process connection is highly resistant to chemicals
Compact, rotatable housing and remote amplifier for flexible installation
High availability, even when several sensors are installed in parallel, since there is no mutual device interference
Universal technology facilitating calibration-free measurement saves time and money
Applications
Fields of applications
Monitoring coolants and lubricants in machine tooling
Monitoring cleanser and detergents in cleaning and washing machines
Monitoring filling tanks in automobile assembly
Level measurement in industrial processes with difficult ambie
Monitoring coolants and lubricants in machine tooling
Monitoring cleanser and detergents in cleaning and washing machines
Monitoring filling tanks in automobile assembly
Level measurement in industrial processes with difficult ambie
Note
속성 | 값 |
---|---|
Device Type | TDR Level Sensor |
Mounting Type | Flange Mount |
Switch Output | NPN, PNP |
Body Material | Steel 303 |
Cable Length | 900mm |
Minimum Operating Temperature | -20°C |
Communication Protocol | IO-LINK |
Maximum Operating Temperature | +60°C |
Maximum DC Voltage | 30V |
Maximum Current | 100 mA |
Maximum Pressure | 16bar |
Process Connection | M12 |
Series | LFP |
Interface | IO-Link |
Current Rating | 100 mA |
