RS PRO JC2M Series Ultrasonic Level Sensor, Threaded, NO-Rated, Housing Polyphenylene Sulphide
- RS 제품 번호:
- 256-5735
- 제조업체:
- RS PRO
Subtotal (1 unit)*
₩458,835.00
재고있음
- 6 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩458,835.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 256-5735
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | Level Sensor | |
| Device Type | Ultrasonic | |
| Mount Type | Threaded | |
| Housing Material | Polyphenylene Sulphide | |
| Cable Length | 2m | |
| Minimum Operating Temperature | 20°C | |
| Maximum Operating Temperature | 70°C | |
| Maximum DC Voltage | 30V dc | |
| Maximum Current | 15mA | |
| Standards/Approvals | EN 60947-5-2:2020, CE / RoHS | |
| Series | JC2M | |
| Hazardous Area Certification | NO | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type Level Sensor | ||
Device Type Ultrasonic | ||
Mount Type Threaded | ||
Housing Material Polyphenylene Sulphide | ||
Cable Length 2m | ||
Minimum Operating Temperature 20°C | ||
Maximum Operating Temperature 70°C | ||
Maximum DC Voltage 30V dc | ||
Maximum Current 15mA | ||
Standards/Approvals EN 60947-5-2:2020, CE / RoHS | ||
Series JC2M | ||
Hazardous Area Certification NO | ||
- COO (Country of Origin):
- CN

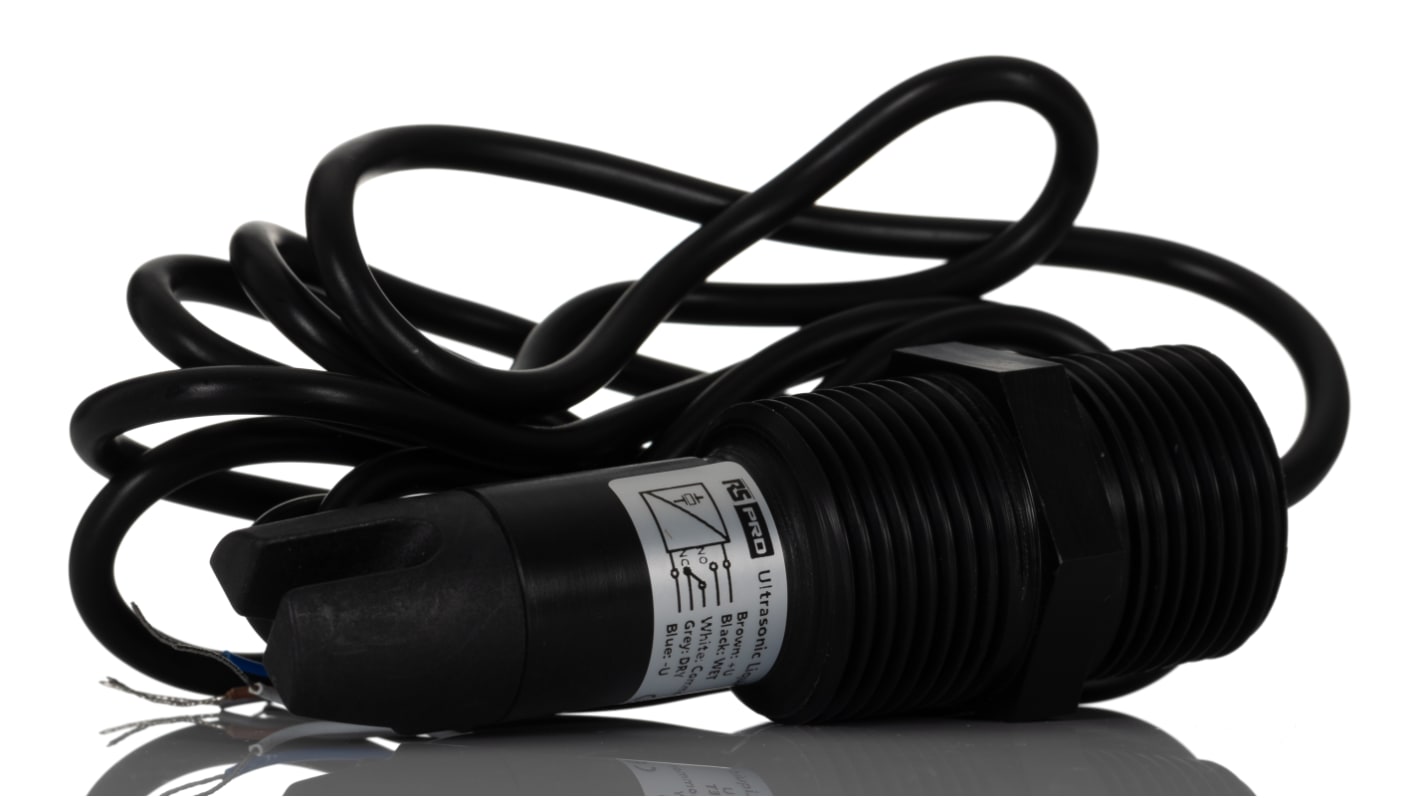

RS PRO Ultrasonic Liquid Level Switch
The RS PRO JC2M Ultrasonic Level Switch is used for measuring and monitoring liquid levels in various industrial applications. It utilises ultrasonic technology to accurately detect the presence or absence of liquid and provide reliable level measurements.
Why Would You Choose This Level Switch?
The JC2M Ultrasonic Level Switch is manufactured in Polyphenylene Sulphide (PPS) for corrosion resistance in most liquids. This range of sensors can be mounted in any position in a tank using a 1in. NPT thread forms. A thread is provided on each side of a hexagonal boss to allow external or internal / pole mounting of the sensor.;Overall, the JC2M Ultrasonic Level Switch offers an efficient and reliable solution for liquid level detection and control, contributing to process optimisation, safety, and efficiency in industrial environments.
Where Would You Use Them?
Features and Benefits
Applications
