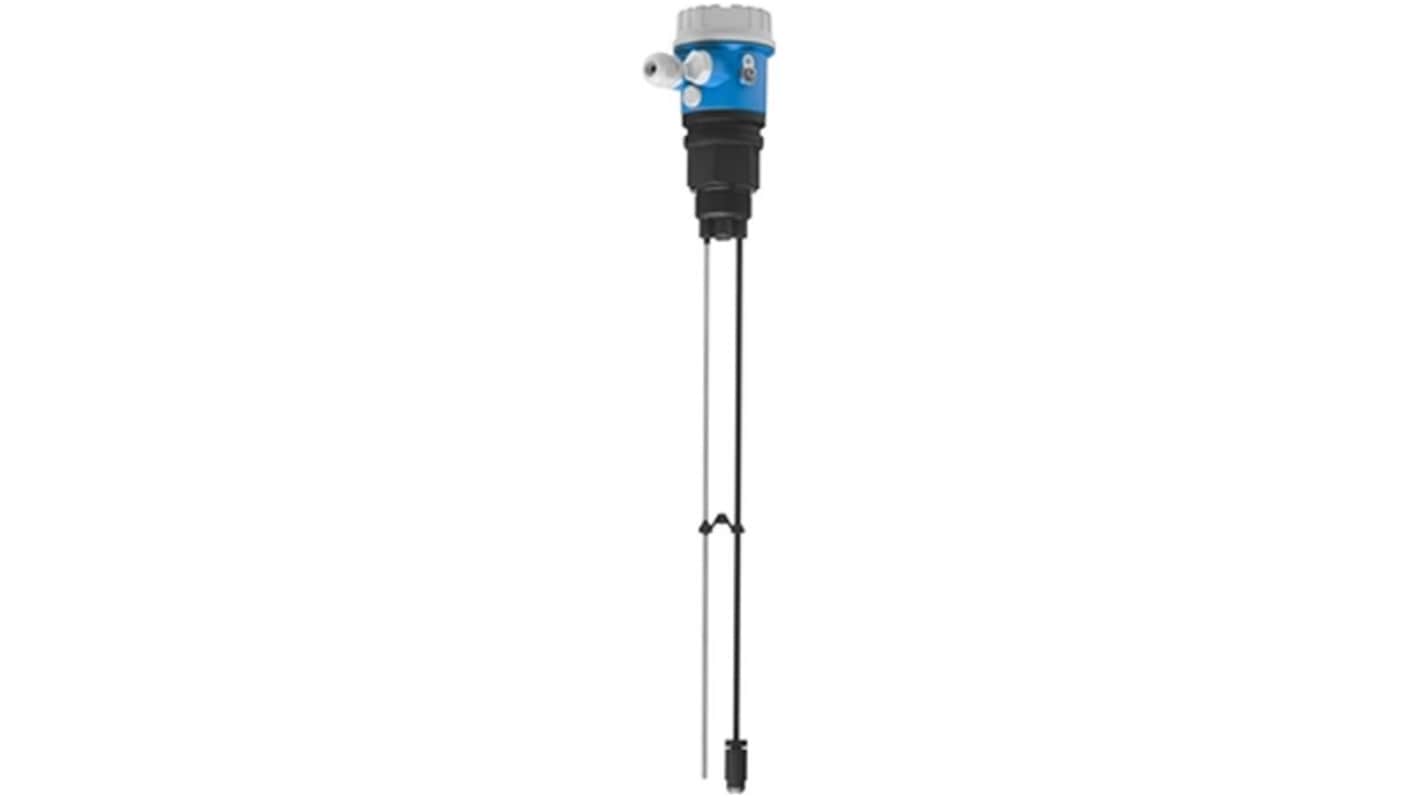

Endress+Hauser Liquicap T Series Capacitive Level Sensor Level Sensor, Threaded Mount, ATEX-Rated, Ethylene Propylene

모든 Level Sensors 열람하기

Subtotal (1 unit)*

₩1,024,413.00

Add to Basket
수량 선택 또는 입력
제조사가 재고 비축중
  • 2026년 7월 13일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩1,024,413.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
317-758
Distrelec 제품 번호:
303-84-080
제조사 부품 번호:
FMI21-A1A1B2
제조업체:
Endress+Hauser
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Endress+Hauser

Device Type

Capacitive Level Sensor

Product Type

Level Sensor

Mount Type

Threaded Mount

Housing Material

Stainless Steel, Carbon Fibre

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

100°C

Maximum DC Voltage

30V dc

Maximum Current

22mA

Maximum Pressure

10bar

Gasket Material

Ethylene Propylene Diene Monomer

Standards/Approvals

CSA, CE, ATEX, 61010C-1, 2001, EN 61326, EN 50021, DIN EN 61010 Part 1

Series

Liquicap T

Hazardous Area Certification

ATEX

COO (Country of Origin):
DE
The Endress+Hauser Liquicap T sensor is used in conductive liquids for continuous level measurement. Liquicap FMI21 is a simple and cost effective rod probe for continuous level measurement for conductive liquids. High quality non corrosive materials such as carbon fibre, stainless steel make it suitable even for aggressive liquids e.g. acids and alkalis.

Safe and reliable function regardless of tank geometry

No calibration necessary

High quality and non corrosive materials

No moving parts in tank

Cost effective solution for continuous level measurement

Optimized storage by simply shortening the probe rods on site
