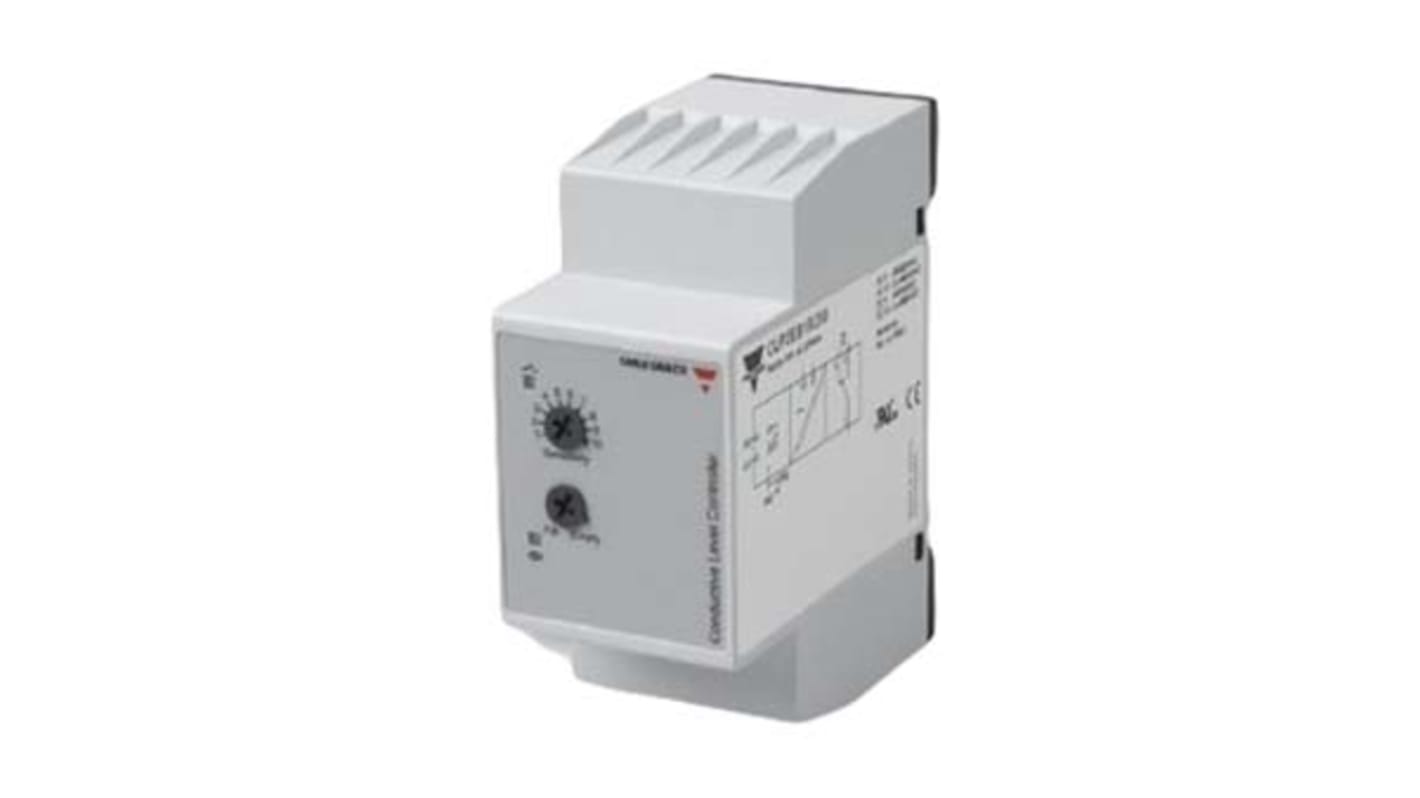

Carlo Gavazzi CLP Series Level Controller -, DIN Rail 2 Analogue Input 24V-Rated Relay
- RS 제품 번호:
- 859-2945
- 제조사 부품 번호:
- CLP2EA1C115
- 제조업체:
- Carlo Gavazzi
Subtotal (1 unit)*
₩315,858.80
재고있음
- 7 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩315,858.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 859-2945
- 제조사 부품 번호:
- CLP2EA1C115
- 제조업체:
- Carlo Gavazzi
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Carlo Gavazzi | |
| Product Type | Level Controller | |
| Number of Inputs | 2 | |
| Probe Voltage | 5V | |
| Mount Type | DIN Rail | |
| Response Time | 5s | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 50°C | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Maximum Supply Voltage | 24V | |
| Standards/Approvals | UL | |
| Hazardous Area Certification | No | |
| Number of Outputs | 5 | |
| Output Type | Relay | |
| Sensitivity | 500kΩ | |
| Series | CLP | |
| Current Rating | 8 A | |
| Input Type | Analogue | |
| 모두 선택 | ||
|---|---|---|
브랜드 Carlo Gavazzi | ||
Product Type Level Controller | ||
Number of Inputs 2 | ||
Probe Voltage 5V | ||
Mount Type DIN Rail | ||
Response Time 5s | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 50°C | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Maximum Supply Voltage 24V | ||
Standards/Approvals UL | ||
Hazardous Area Certification No | ||
Number of Outputs 5 | ||
Output Type Relay | ||
Sensitivity 500kΩ | ||
Series CLP | ||
Current Rating 8 A | ||
Input Type Analogue | ||
제외
- COO (Country of Origin):
- LT
Carlo Gavazzi CLP Series Conductive Level Controller
Carlo Gavazzi CL series microprocessor based level controller for liquids with a wide sensitivity range (like sewage water, chemicals, salt water etc.). The controller has a separate output for alarm indication in case of a tank running dry or if an overflow condition occurs.
Conductive level controller
Adjustment of sensitivity
Low-voltage AC electrodes
Output 2x8A/250 VAC SPDT relay
LED indication for: Output ON and Power ON
Liquid Level Relays are used to monitor the levels of conductive liquids, and are available in Up/Down, Minimum, Maximum, and Fill/Empty variations. Liquid Level Relays are straightforward to install and safe to use.
Application Examples
Liquid Level Relays (Conductive Level Sensors) are used in a wide variety of applications including waste water management and the monitoring and management of corrosive liquid media, and designed specifically to provide for the:
Monitoring and control of liquid levels
Protection of pumps against dry running
Ability to detect liquid leaks in a system
Control of media mixing ratios
Control of liquid levels
