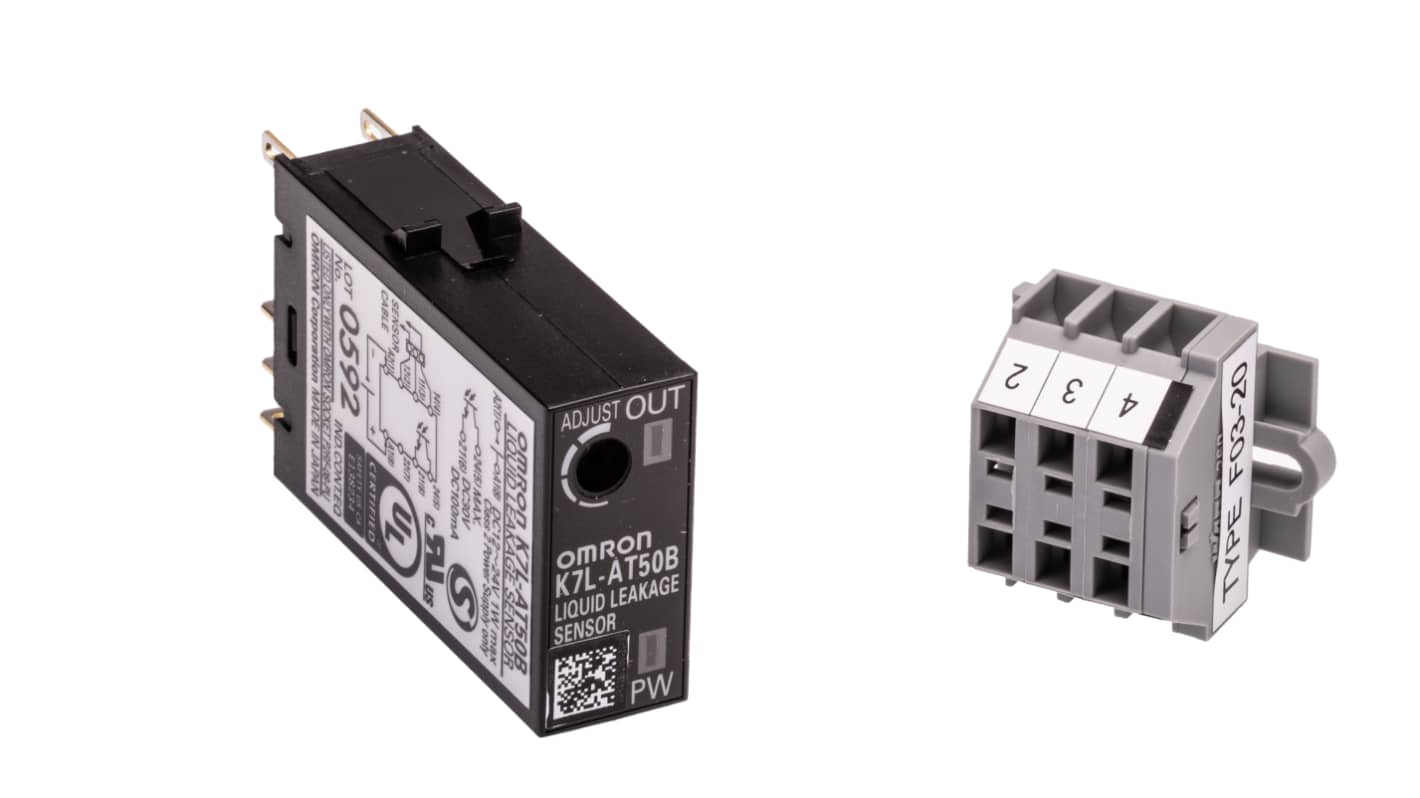

Omron K7L Series Liquid Leak Sensor - DIN Rail, 12 → 24 V dc 1 PNP/NPN

RS 제품 번호:: 111-3527
제조사 부품 번호:: K7L-AT50B
제조업체:: Omron

Omron K7L Series Liquid Leak Sensor - DIN Rail, 12 → 24 V dc 1 PNP/NPN

Subtotal (1 unit)*

₩328,868.40

현재 액세스할 수 없는 재고 정보

수량	한팩당
1 +	₩328,868.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 111-3527
제조사 부품 번호:: K7L-AT50B
제조업체:: Omron

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Omron
	Number of Inputs	1
	Mounting Style	DIN Rail
	Supply Voltage	12 → 24 V dc
	Overall Length	12.8mm
	Overall Width	46mm
	Overall Depth	28.8mm
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	+55°C
	Output Type	PNP/NPN
	Sensitivity	250 Kohm → 50M ohm
	Standards Met	CE, CSA Certified, cULus, UL Certified
	Series	K7L
	Number of Outputs	1
	Termination Type	Plug-In

	모두 선택
	브랜드 Omron
	Number of Inputs 1
	Mounting Style DIN Rail
	Supply Voltage 12 → 24 V dc
	Overall Length 12.8mm
	Overall Width 46mm
	Overall Depth 28.8mm
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature +55°C
	Output Type PNP/NPN
	Sensitivity 250 Kohm → 50M ohm
	Standards Met CE, CSA Certified, cULus, UL Certified
	Series K7L
	Number of Outputs 1
	Termination Type Plug-In

Datasheet

COO (Country of Origin):: JP

Omron K7L Series Liquid Leak Sensor, 12.8mm Overall Length, DIN Rail Mounting Style - K7L-AT50B

This liquid leak sensor offers effective monitoring for leaks across various industrial applications. Its rapid detection of liquid presence is essential for minimising potential damage and downtime. The sensor is adaptable for different electronic and mechanical environments where prompt leak detection is required.

Features & Benefits

• High sensitivity detection ranges from 250KΩ to 50MΩ
• DIN rail mounting style enables straightforward installation and integration
• Functions in temperatures from -10°C to +55°C
• CE and UL certified for safety and compliance

Applications

• Monitors industrial machinery for liquid leaks
• Utilised in HVAC systems for early fluid detection
• Installed in manufacturing processes for immediate leak notifications
• Suitable for water treatment facilities

How should it be mounted for optimal performance?

The sensor is designed for DIN rail mounting, ensuring quick and stable installation in existing control panels or electrical enclosures.

What is the significance of its sensitivity range?

The wide sensitivity range allows for the detection of small leaks, providing early warnings and reducing the risk of operational disruptions.

What ranges of supply voltage can it operate within?

It operates effectively within a supply voltage range of 12 to 24 V DC, making it adaptable for various applications and electrical configurations.
