OSRAM Opto Semiconductors 2.9 V White LED SMT Surface Mount KW DDLM32.EH KW DDLM32.EH-HTJQ-A434-K1M2

모든 LEDs 열람하기

Subtotal (1 tape of 10 units)*

₩2,049.20

Add to Basket
수량 선택 또는 입력
마지막 RS 재고
  • 최종적인 4,000 개 unit(s)이 배송 준비 됨
수량
한팩당
Per Tape*
10 +₩204.92₩2,049.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
331-645
제조사 부품 번호:
KW DDLM32.EH-HTJQ-A434-K1M2
제조업체:
OSRAM Opto Semiconductors
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

OSRAM Opto Semiconductors

LED Colour

White

Product Type

LED

Package Type

SMT

Maximum Forward Current

250mA

Packaging

Tape & Reel 4000 pcs/PU

Mount Type

Surface Mount

Number of LEDs

1

Forward Voltage

2.9V

Viewing Angle

120 °

Lens Dimensions

2 mm (Outline)

LED Luminous Flux

41.9 to 65.8 lm

Lens Shape

Square

Standards/Approvals

IEC 62471:2006, JEDEC J-STD-020E, IEC 60068-2-43, ANSI/ESDA/JEDEC JS-001

Lens Finish

Diffused Silicone Resin

Colour Temperature

6500k

Series

KW DDLM32.EH

Lens Colour

Diffused Silicone Resin

Automotive Standard

No

COO (Country of Origin):
CN

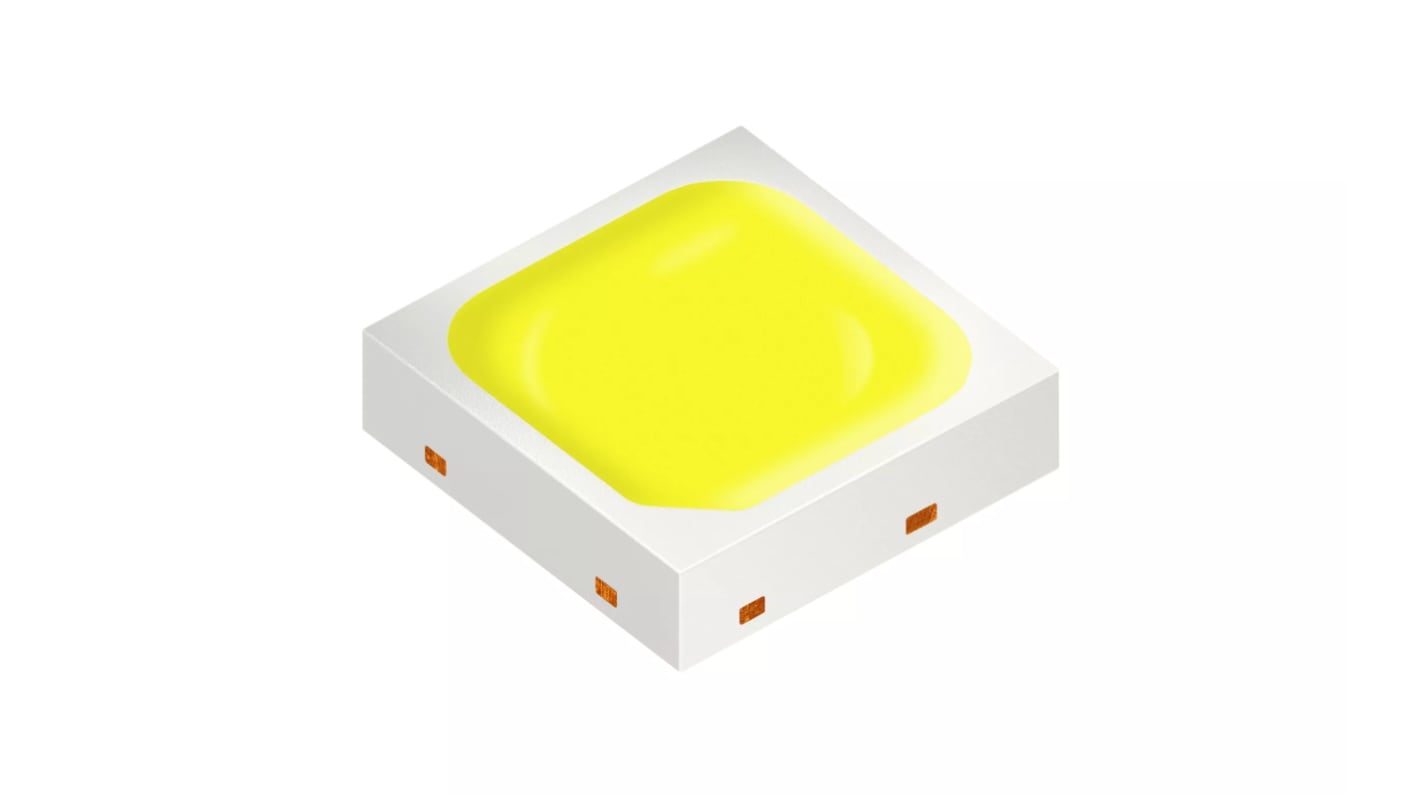

The OSRAM Opto Semiconductors SYNIOS S2222 square package color LED with just 2mm outline combines best performance with a small footprint for environments where improved corrosion robustness is needed. A centralized chip allows an easy integration into optical systems.

Package White SMT Package and Colored Diffused Silicone Resin

Chip Technology Volume Emitter on Sapphire AlInGaN

Typical Radiation 120° Lambertian Emitter

Color Temperature 2700K to 6500K

CRI Minimum 80

ESD Protection 2 kV ANSI/ESDA/JEDEC JS-001 HBM Class 2

Luminous Flux at 4000K Typical 54.5 lm

Luminous Efficiency 189 lm/W at 4000K at 100 mA

Corrosion Robustness Class 3B 40°C 90% RH 15 ppm H2S 14 Days

Applications


Ambient Lighting

Entertainment

Factory Automation

Home and Building Automation

Indoor Lighting

Projection and Display

Robotics

Transportation
