OSRAM Opto Semiconductors 2.9 V White LED SMT Surface Mount KW DDLM32.EH KW DDLM32.EH-HTJQ-A131-K1M2

모든 LEDs 열람하기

Subtotal (1 tape of 10 units)*

₩2,049.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 3,960 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
Per Tape*
10 +₩204.92₩2,049.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
331-640
제조사 부품 번호:
KW DDLM32.EH-HTJQ-A131-K1M2
제조업체:
OSRAM Opto Semiconductors
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

OSRAM Opto Semiconductors

LED Colour

White

Product Type

LED

Maximum Forward Current

250mA

Package Type

SMT

Packaging

Tape & Reel 4000 pcs/Reel

Mount Type

Surface Mount

Number of LEDs

1

Forward Voltage

2.9V

Viewing Angle

120 °

LED Luminous Flux

41.9 to 65.8 lm

Lens Dimensions

2 mm (Outline)

Lens Shape

Square

Standards/Approvals

ANSI/ESDA/JEDEC JS-001IEC 60068-2-43JEDEC J-STD-020EIEC 62471:2006

Lens Finish

Diffused Silicone Resin

Series

KW DDLM32.EH

Colour Temperature

6500k

Automotive Standard

No

COO (Country of Origin):
CN

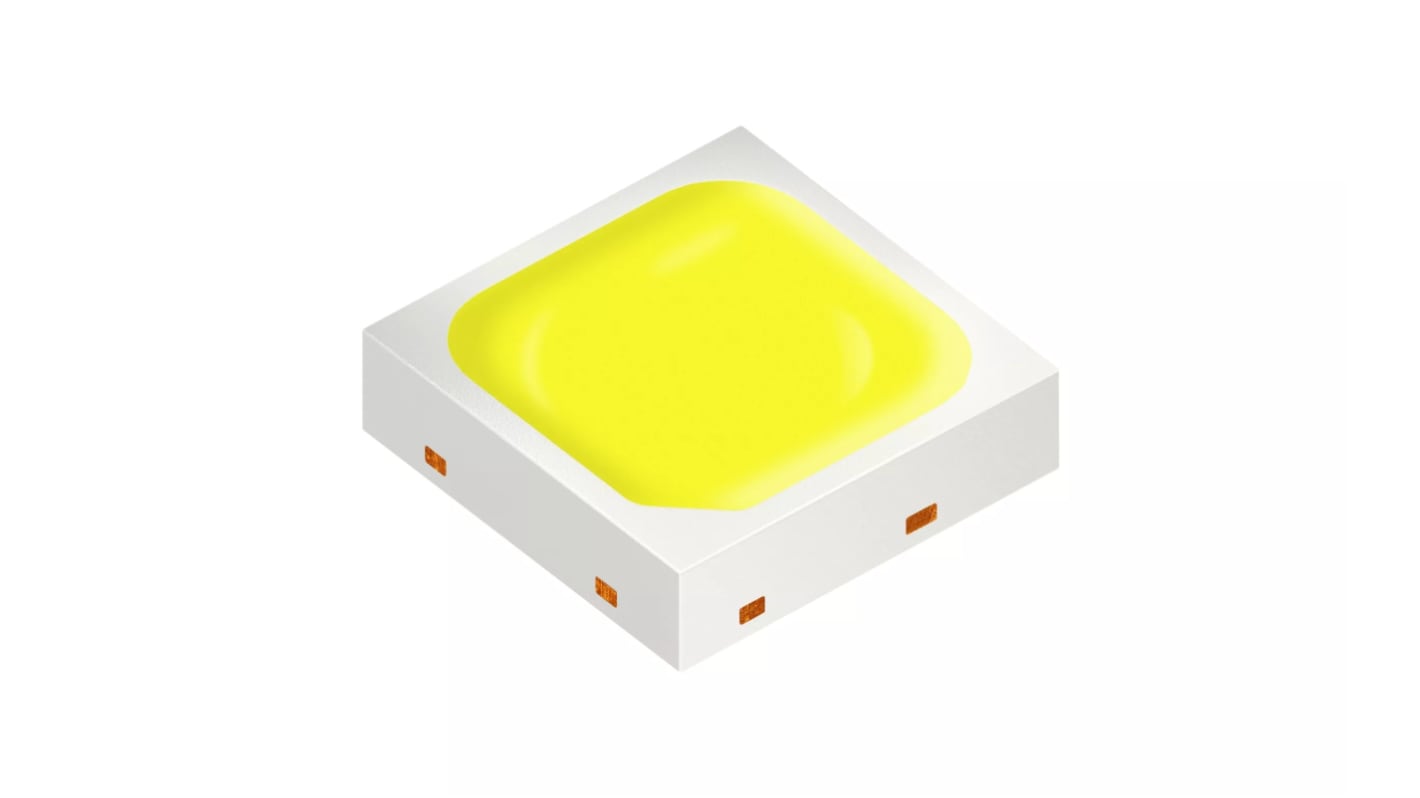

The OSRAM Opto Semiconductors SYNIOS S2222 square package color LED with just 2mm outline combines best performance with a small footprint for environments where improved corrosion robustness is needed. A centralized chip allows an easy integration into optical systems.

Package White SMT Package and Colored Diffused Silicone Resin

Chip Technology Volume Emitter on Sapphire AlInGaN

Typical Radiation 120° Lambertian Emitter

Color Temperature 2700K to 6500K

CRI Minimum 80

ESD Protection 2 kV ANSI/ESDA/JEDEC JS-001 HBM Class 2

Luminous Flux at 4000K Typical 54.5 lm

Luminous Efficiency 189 lm/W at 4000K at 100 mA

Corrosion Robustness Class 3B 40°C 90% RH 15 ppm H2S 14 Days

Applications


Ambient Lighting

Entertainment

Factory Automation

Home and Building Automation

Indoor Lighting

Projection and Display

Robotics

Transportation
